After the production of aluminum die castings is completed, there will be some small defects such as air bubbles, cracks and deformation, which will affect our use. So what directly causes these defects? Let me introduce it to you! The causes of direct defects in aluminum die castings are generally due to incorrect mold and die casting schemes; or unreasonable structural design of castings, incorrect operation methods, and incorrect casting process conditions; unskilled operators and other reasons. Will cause direct defects in aluminum die castings. Aluminum die castings play an extremely important role in mechanical operation. When purchasing, we should pay attention not to buy defective aluminum die castings. If we buy them, we must repair them in time before using them.

Two dies are used in die casting; one is called the "cover die half" and the other the "ejector die half". Where they meet is called the parting line. The cover die contains the sprue (for hot-chamber machines) or shot hole (for cold-chamber machines), which allows the molten metal to flow into the dies; this feature matches up with the injector nozzle on the hot-chamber machines or the shot chamber in the cold-chamber machines. The ejector die contains the ejector pins and usually the runner, which is the path from the sprue or shot hole to the mouldcavity. The cover die is secured to the stationary, or front, platen of the casting machine, while the ejector die is attached to the movable platen. The mould cavity is cut into two cavity inserts, which are separate pieces that can be replaced relatively easily and bolt into the die halves.

Hot-chamber die casting, also known as gooseneck machines, rely upon a pool of molten metal to feed the die. At the beginning of the cycle the piston of the machine is retracted, which allows the molten metal to fill the "gooseneck". The pneumatic- or hydraulic-powered piston then forces this metal out of the gooseneck into the die. The advantages of this system include fast cycle times (approximately 15 cycles a minute) and the convenience of melting the metal in the casting machine. The disadvantages of this system are that it is limited to use with low-melting point metals and that aluminium cannot be used because it picks up some of the iron while in the molten pool. Therefore, hot-chamber machines are primarily used with zinc-, tin-, and lead-based alloys.

The main die casting alloys are: zinc, aluminium, magnesium, copper, lead, and tin。Specific die casting alloys include: zinc aluminium; aluminium to, e.g. The Aluminum Association (AA) standards: AA 380, AA 384, AA 386, AA 390; and AZ91D magnesium.The following is a summary of the advantages of each alloy: As of 2008[update], maximum weight limits for aluminium, brass, magnesium, and zinc castings are estimated at approximately 70 pounds (32 kg), 10 lb (4.5 kg), 44 lb (20 kg), and 75 lb (34 kg), respectively.By late-2019, press machines capable of die casting single pieces over-100 kilograms (220 lb) were being used to produce aluminium chassis components for cars.

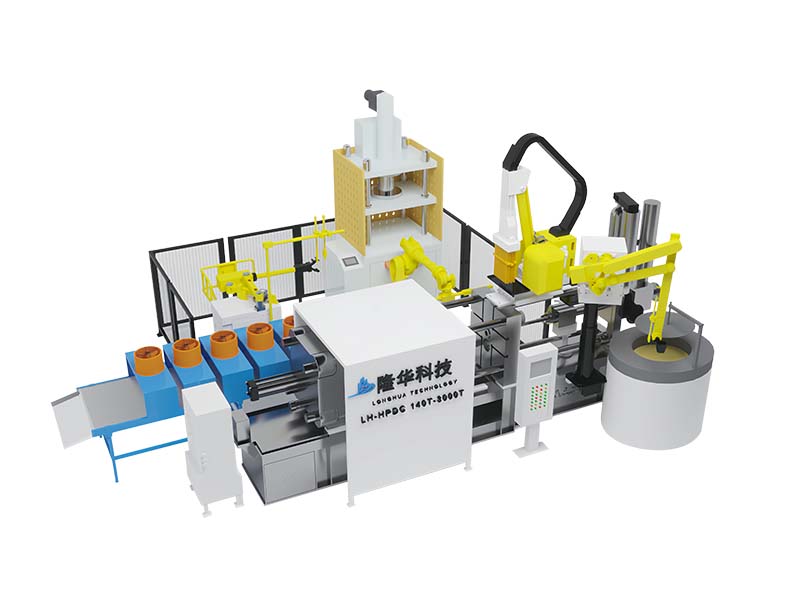

We manufacture advanced die-casting machines from 3,400 up to 92,000 kN locking force. From a single machine to a fully integrated die-casting cell, we build customized solutions for your foundry. Every die-casting system is engineered to meet your precise production needs. Our solutions, focused on availability, cycle time and quality production, are used to produce demanding components across a wide range of applications around the world. We offer one integrated solution. Each system is tailored to the parts you produce, your processes and factory environment, ensuring you get the efficiency, quality, ease of operation and automation to suit your precise needs. The material used defines the minimum section thickness and minimum draft required for a casting as outlined in the table below. The thickest section should be less than 13 mm (0.5 in), but can be greater. The first and most important step towards our vision is the introduction of our cell management system SmartCMS, to enable one point of access to view, control and operate the entire die-casting cell. We offer a full range of peripherals, from vacuum systems, sprayers and markers to ladlers, extractors and robots. The integration of our peripheral devices allows for a consistent operating concept, for an easier handling of your die-casting system. Additionally, we can integrate your preferred peripherals into your customized production solution. We offer a full range of peripherals, from vacuum systems, sprayers and markers to ladlers, extractors and robots. The integration of our peripheral devices allows for a consistent operating concept, for an easier handling of your die-casting system. Additionally, we can integrate your preferred peripherals into your customized production solution.

Aluminum alloy die casting machines have revolutionized the production of complex shapes with high precision. These machines use high pressure to inject molten aluminum into steel molds. The result is a highly durable and reliable product that can be used in a variety of industries. In this article, we will explore the different aspects of aluminum alloy die casting machines, including their operation, design and dimensions. Aluminum die casting machines use high pressure to inject molten aluminum into molds. The process is very efficient and can produce high-quality products quickly. Molten aluminum is heated to a temperature of around 700°C and then injected into a mold under pressure of up to 1,200 bar. The pressure is maintained until the aluminum solidifies, then the mold is opened to reveal the finished product. This process can be repeated many times to produce large numbers of identical parts.

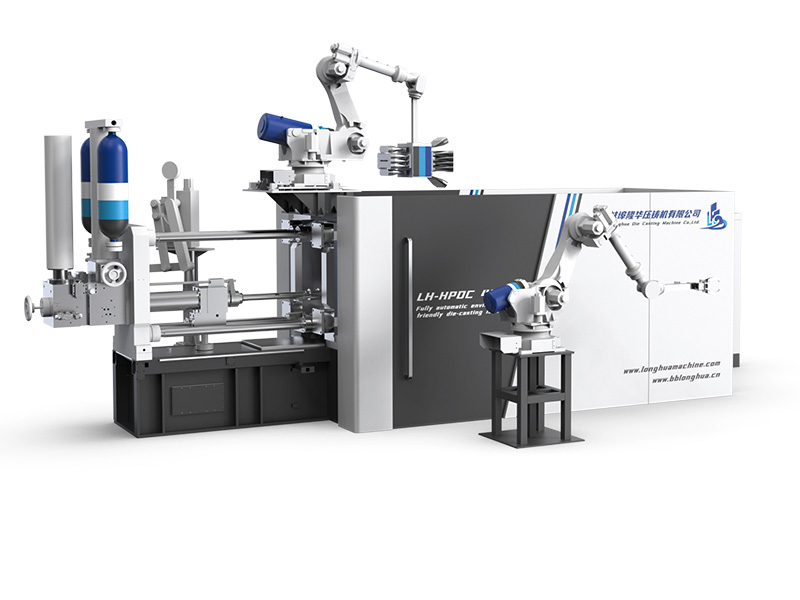

Cold chamber die casting machines are used in a wide range of applications, including the manufacturing of automotive parts, aerospace components, and industrial machinery. These machines are particularly useful for producing parts with complex geometries and thin walls. The high pressure injection system ensures that the metal fills the mold cavity completely, resulting in a finished product that is free of defects. One of the significant advantages of cold chamber die casting machines is their efficiency. These machines can produce parts at a high rate, making them ideal for large-scale production. Additionally, the precision and accuracy of the process result in a finished product that requires minimal finishing or machining. In conclusion, cold chamber die casting machines are an essential component of the manufacturing process for a range of products. These machines are used to cast metals with high melting points, such as aluminum, brass, and copper, and are particularly useful for producing parts with complex geometries and thin walls. The process of die casting involves injecting molten metal into a mold cavity under high pressure, resulting in a precise and consistent final product. The components of a cold chamber die casting machine include a melting furnace, injection system, and mold cooling system, and these machines are used in a wide range of applications, including the manufacturing of automotive parts, aerospace components, and industrial machinery.

The injection system is responsible for injecting the molten metal into the mold cavity. This system consists of a plunger, which forces the metal into the mold, and a nozzle, which controls the flow of metal. The injection system operates at high pressure, typically around 100-200 MPa, to ensure that the metal is injected into the mold with precision and accuracy. The mold cooling system is another critical component of the cold chamber die casting machine. Once the metal has been injected into the mold, it must be cooled rapidly to ensure that it solidifies correctly. The mold cooling system typically uses water or oil to cool the mold, and the cooling time varies depending on the size and complexity of the part being cast.
