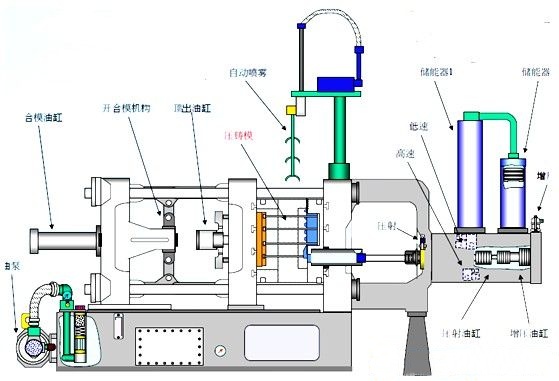

The horizontal cold chamber die casting machine is a kind of equipment commonly used for non-ferrous metal die casting. The following is a structural introduction of the equipment:

Frame: The frame is the main frame of the entire die casting machine. It is made of high-strength cast iron or steel and can bear and support the weight of the entire equipment.

Shot system: The shot system is mainly composed of a shot cylinder, an injection cylinder, a nozzle, etc. The shot cylinder is responsible for pressing the molten alloy from the cold chamber into the mold. The injection cylinder controls the pressing speed and pressure. The nozzle connects the cold chamber and the mold to control the flow of the molten alloy.

Mold system: The mold consists of a mold seat, a fixed plate, a movable mold plate, a movable mold plate seat, etc. The mold system is used to form the shape of the metal product and complete the casting process through the opening and closing and movement of the mold.

Hydraulic system: The hydraulic system provides the required power, including hydraulic pumps, hydraulic cylinders, oil pipes, etc. It is responsible for driving various hydraulic components to realize the action and control of the die-casting machine.

Control system: The control system monitors and controls the operation process of the die-casting machine through electrical components, sensors, PLC, etc., including the adjustment and regulation of parameters such as temperature, pressure, and speed.

Horizontal cold chamber die-casting machines have certain advantages over other types of die-casting machines, such as being suitable for larger and more complex castings, higher injection speeds, and easier mold installation and adjustment. However, in specific applications, the selection of a suitable die-casting machine structure still needs to consider multiple factors such as product requirements and process requirements.
