1. Die casting process introduction

Die casting (high pressure casting) is a near net forming technology widely used in the automotive, aerospace and electronics industries.

During the die casting process, the molten metal (usually a light alloy) is filled at high pressure and high speed under the action of the punch and cooled rapidly to form the final casting.

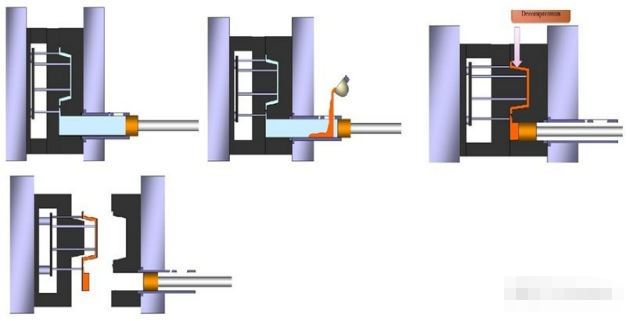

Magnesium and aluminum alloy are the main die casting materials. Die-casting alloy materials are mainly non-ferrous metals and their alloys, among which aluminum alloy is the largest, while ferrous metals and their alloys have been at a standstill for a long time. Its technological process is die casting mold installation, mold closing, pouring injection, pressure cooling, open mold taking parts and cooling treatment

2. Die casting machine

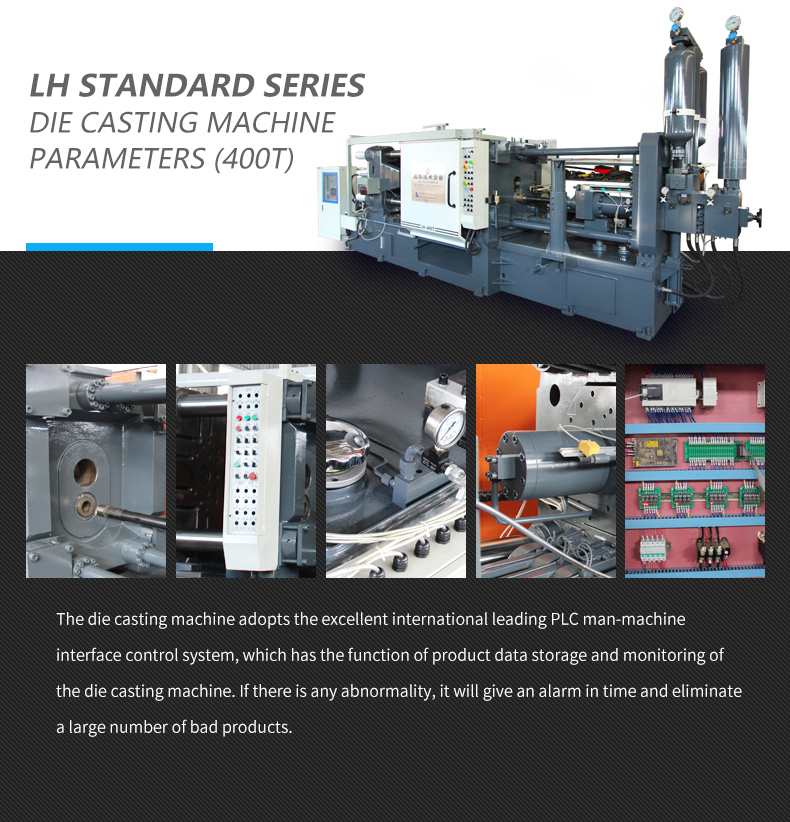

Die casting is generally divided into cold chamber die casting and hot chamber die casting. Die casting machine according to the size of the clamping force can be divided into small (160-400 tons), medium (400-1,000 tons) and large (more than 1,000 tons) die casting machine. (The picture below is Longhua new generation automatic 400T cold chamber die casting Machine)

3. Application of die-casting technique in automotive field

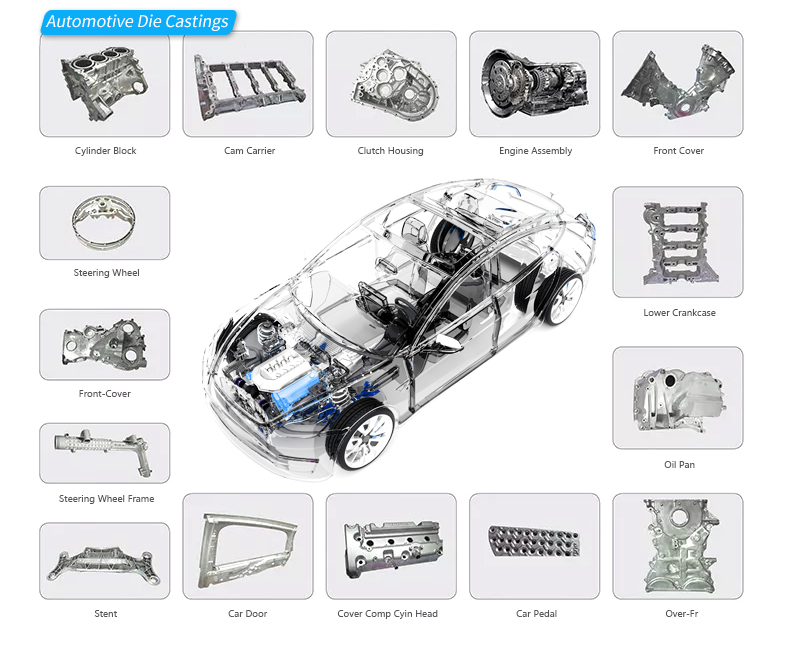

Die casting will wind up, so heat treatment is not allowed for die casting; Die castings are net forming, post processing (sandblasting or other) direct assembly, no machining; Die casting parts have been widely used in automobile industry, and they are widely used in engine (cylinder block, cylinder head, intake pipe, etc.), transmission housing, wheel hub and other non-structural parts. In structural parts, die casting parts are also used in chassis suspension, body in white structural parts (transverse and longitudinal beams, shock absorption towers, etc.), covering parts, interior parts and other parts.
