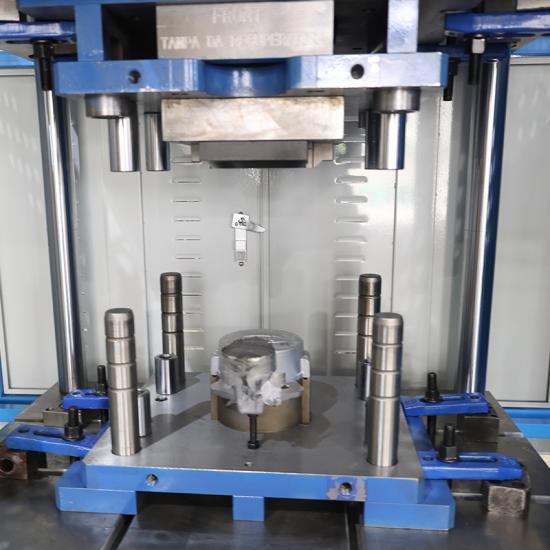

The die-casting trimming machine cuts the edge of the die-casting product by rotating the cutting tool.
The speed and cutting method of the cutting tool can be adjusted according to the requirements of the product.
Generally speaking, the trimming machine is equipped with a variety of different types of cutters to adapt to die-casting products of different shapes and sizes.
2. Advantages:
The die-casting trimming machine has the following advantages:
1) High efficiency:
Automated operation can achieve fast cutting and continuous production of finished products.
2) Accuracy:
The cutting tool can accurately control the cutting position and angle to ensure the smoothness and consistency of the product edge.
3) Reliability:
The trimming machine adopts high-quality cutting tools and a stable control system to ensure the reliability and stability of the equipment.
4)Applicability:
The trimming machine can adapt to die-casting products of different shapes and sizes and has strong adaptability.

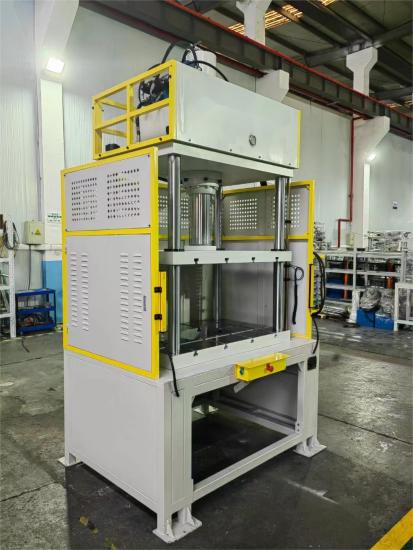

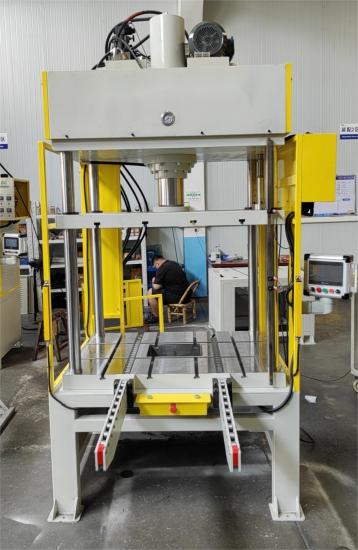

| Longhua Semi-Automatic Trimming Press Machine Parameter | |||||||
| ITEM | LH-TRIMMING-20T | LH-TRIMMING-30T | LH-TRIMMING-40T | LH-TRIMMING-50T | LH-TRIMMING-60T | LH-TRIMMING-80T | LH-TRIMMING-100T |
| Nominal force (T) | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
| Liquid working pressure (MPa) | 2-21 | ||||||
|
Lower and upper working face size (mm) Left and right (inside the column); Front and rear (edge to edge). |
700*600 | 750*650 | 800*700 | 950*850 | 1100*900 | 1300*1100 | 1500*1300 |
| Size of discharge port (mm) | 200*150 | 200*150 | 250*200 | 300*250 | 400*300 | 500*400 | 600*500 |
|
Maximum working height (mm) （Customizable） |
600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| Closing height (mm) | 300 | 300 | 300 | 300 | 400 | 400 | 400 |
| Cylinder stroke (mm) | 300 | 400 | 500 | 600 | 600 | 700 | 800 |
| Power Supply | 3φ380VAC,50/60Hz | ||||||
| Oil type | 46# anti-wear hydraulic oil | ||||||

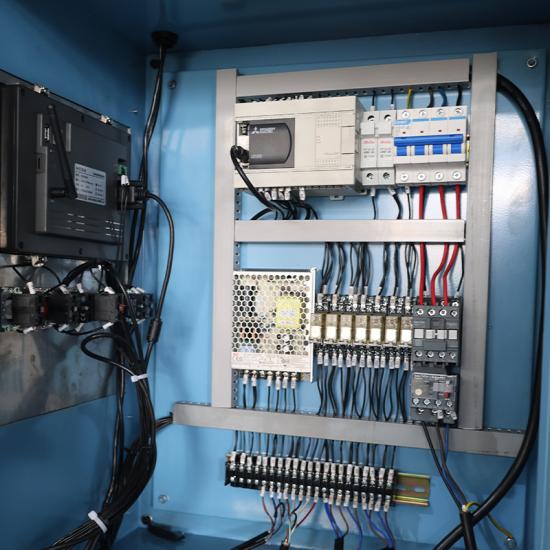

| Control mode | PLC | ||||||
| Operation mode | Manual operation | ||||||
| Power | (20T/30T-3.7KW)(40T/50T-5.5KW)(60T-7.5KW)(80T/100T-11KW) | ||||||
| Equipment height from the ground | 950MM (unified for manual operation, automation according to site and design) | ||||||
