Product Details

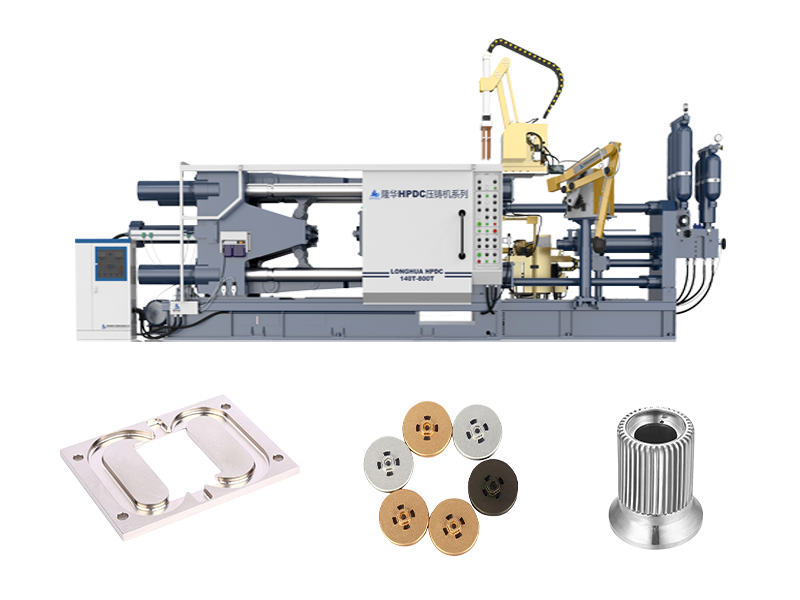

Cold chamber die-casting machines can be used to produce 3C product parts with various shapes and functions.
The specific production products depend on mold design and production needs. These products usually require
high -precision, good appearance and structural design, durability, and certain electromagnetic performance.
Cold room die -casting machines can meet these requirements and provide high -quality die -casting products.
| LH series of standard parameter table (300 t) | ||
| ITEMS | Unit | Specification |
| Clamping Force | KN | 3000 |
| Opening stroke | mm | 460 |
| Die thickness(Min--Max) | mm | 250～700 |
| Space between tie bars | mm | 570*570 |
| Ejector stroke | mm | 100 |
| Ejector force | KN | 150 |
| Injection position（0 as center） | mm | 0，-160 |
| Injection force（intensification) | KN | 350 |
| Injection stroke | mm | 410 |
| Plunger diameter | mm | ￠50 --￠70 |
| lnjection weight(aluminum) | Kg | 3.2 |
| Casting pressure (intensification) | MPa | 143/99/73 |
| Max. casting area(40Mpa) | CM2 | 720 |
| Injection plunger penetration | mm | 140 |
| Diameter of pressure chamber flange | mm | 110 |
| Height of pressure chamber flange | mm | 10 |
| Max.working pressure | MPa | 14 |
| Motor power | Kw | 15 |
| Dimensions (L*W*H) | m | 6.6*1.85*2.8 |
| Machine lifting reference weight | T | 12.5 |
| Oil tank capacity | L | 700 |
(Due to the continuous progress of science and technology,the picture,parameter configuration,etc,
will not be changed without notice)

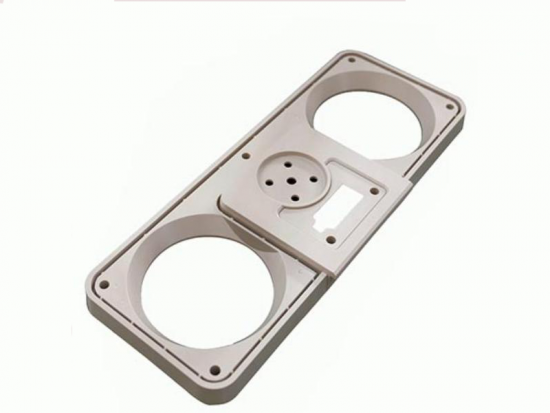

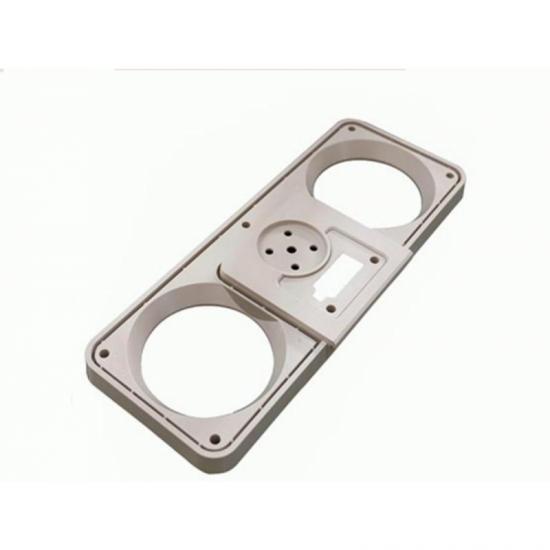

Die casting product
Common 3C die casting:
1. Mobile phone case and accessories: mobile phone case, back cover, frame, keys, brackets, etc.
2. Computer shells and components: laptop computers, keyboard frameworks, radiator,
power adapter shell, etc.
3. Tablet computers and components: tablet computers, back shells, frames, brackets, etc.
4. Smart watch housing and components: smart watch housing, strap buckle, buckle, etc.
5. Headphones and headset accessories: headset shells, headset brackets, headset plugs, etc.
6. Digital camera housing and parts: digital camera case, lens framework, buttons, etc.
7. Gaming machine shells and parts: game machine shell, handle shell, keys, etc.
8. Smart home product shells and parts: smart speaker shell, smart socket shell,
smart camera shell, etc.
ABOUT US

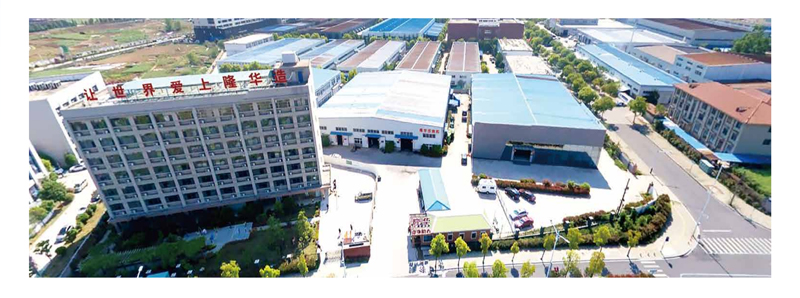

Bengbu Longhua Die Casting Machine Co.,Lid is a company based in Bengbu City,Anhui Province,China.
It specializes in the manufacturing of die casting machines and related equipment.
Established in 1982,Longhua Die Casting Machine Co.,Ltd has been involved in the die casting industry for
several decades.The company focuses on research,development,production,and sales of various types of
die casting machines.The company's product range covers cold chamber die-casting machines,die-casting
manipulators,industrial robots and peripheral equipment of die-casting machines to meet the needs of
different customers.
FAQ：
1. Who are we?
We are based in Anhui, China, Longhua was founded in 1950 and has specialized in the R&D and manufacturing of die-casting machines since 1982.We now have more than 44 years of history in R&D and casting.To date, our products have been exported to more than 43 countries.
2. How can we guarantee quality?
Always final Inspection before shipment;
3. What can you buy from us?

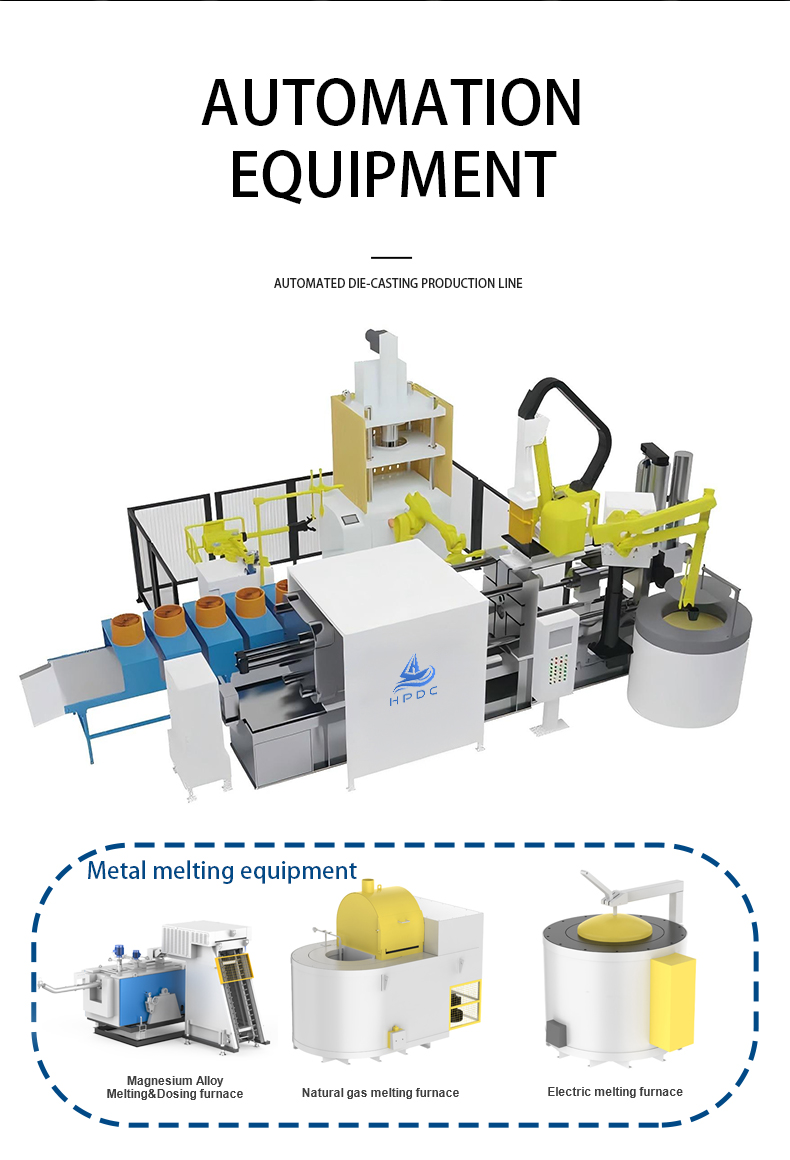

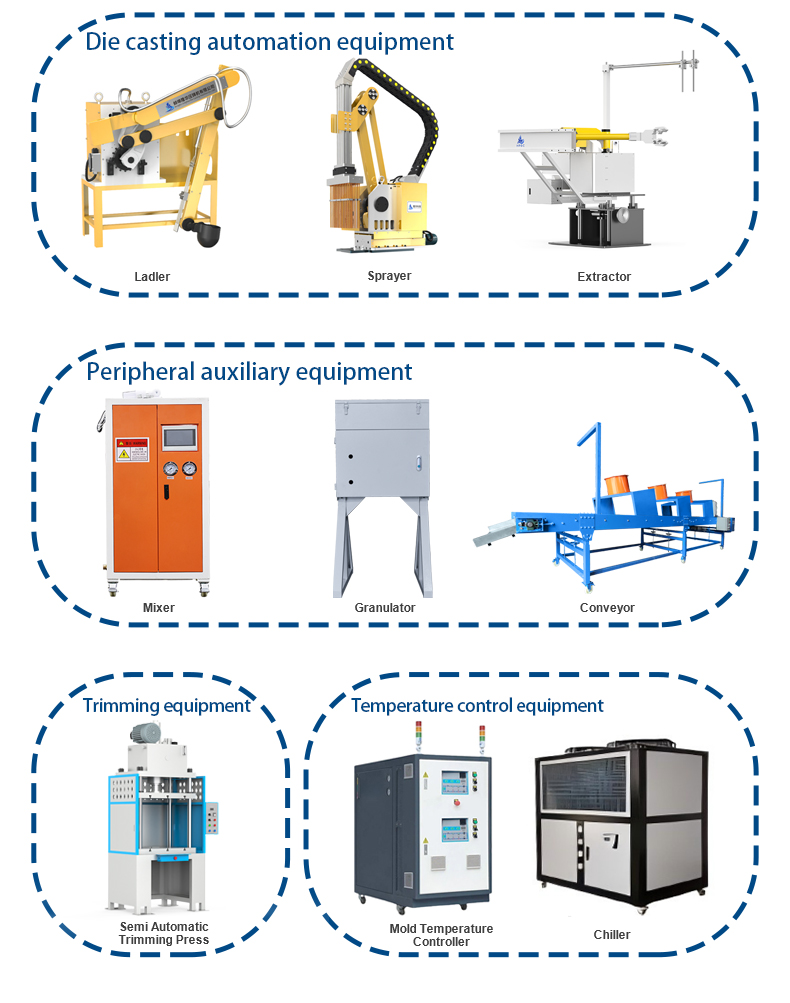

Die casting machines, die casting machine robots, die casting machine parts and consumables, moulds, melting furnaces and other peripheral equipment.
4. Why should you buy from us not from other suppliers?
Longhua Die Casting Machine has more than 44 years of production experience, and cooperate with the Chinese Academy of Science and Technology, you know that China's space shuttles are cooperating with the Chinese Academy of Science and Technology.
5. What services can we provide?
Accepted Delivery Terms: FOB/EXW;
Accepted Payment Currency:USD,EUR,CNY;
ccepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese
