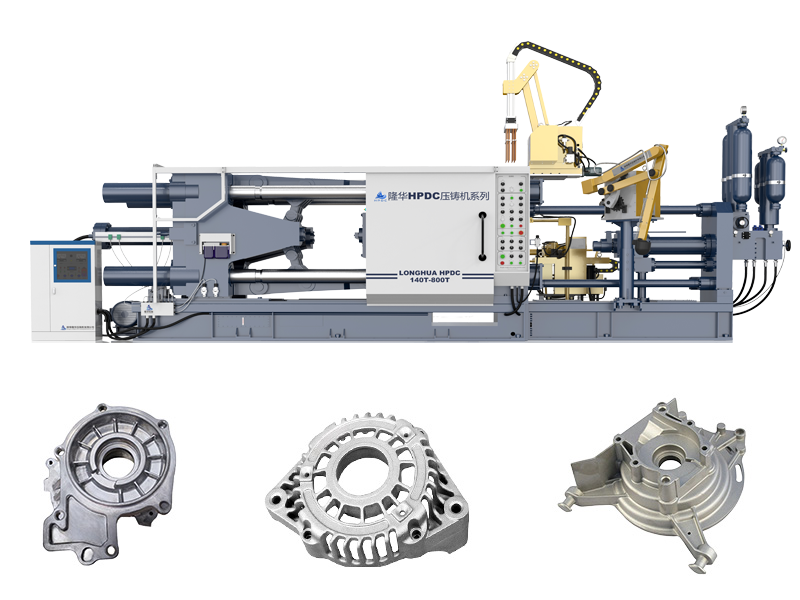

LH-HPDC 630T New Metal Cold Chamber Die Casting Machine For Parts Casting

Metal part type cold chamber die casting machines have the characteristics of high efficiency, accuracy, high degree of automation, and wide scope of applications, so they have been widely used in modern industrial production.

  • Product Origin:

    Anhui China
  • Item NO.:

  • Shipping Port:

    Shanghai Port
  • Lead Time:

    1set,20 days;≥2 sets,To be negotiated
  • Price Range:

Products Description

die casting machine price


Metal parts horizontal cold chamber die casting machine has the following characteristics:
1. Hile structure: The horizontal design makes the operation of the die-casting machine more convenient, and it

is also conducive to handling heavy workpieces and reducing the labor intensity of workers.
2. Cold room die casting: Compared with the hot chamber die casting, cold chamber die casting is more suitable for

handling high melting point metals such as aluminum alloy. By heating metal alloys in advance, the metal is

placed in a cooling room before injection to liquefy, which helps reduce the formation of metal gases and bubbles,

and improve the density and surface quality of the castings.

3. High pressure injection: Cold chamber die-casting machines usually have high injection pressure, which can

ensure that the metal alloy is fully filled in the mold cavity, ensuring the accuracy and integrity of the casting.

4. Automation control: Modern cold room die casting machines are usually equipped with advanced automation

control systems that can achieve automated operations of the entire production process and improve production

efficiency and consistency.
5. Fast replacement of molds: The cold chamber die-casting machine is usually designed to quickly replace the mold,

so that it can meet the production needs of different shapes and sizes and improve the flexibility of production.
6. Low energy consumption: Compared to the hot room die casting, the cold chamber die casting machine usually uses

energy more effectively, because the metal heated in the cooling room in advance, reducing the waste of energy.


LH series of standard parameter table (630 t)
ITEMS Unit Specification
Clamping Force KN 6300
Opening stroke mm 650
Die thickness(Min--Max) mm 350~850
Space between tie bars mm 750*750
Ejector stroke mm 150
Ejector force KN 315
Injection position(0 as center) mm 0,-250
Injection force(intensification) KN 590
Injection stroke mm 600
Plunger diameter mm ¢70 ¢80 ¢90
lnjection weight(aluminum) Kg 7.2
Casting pressure (intensification) MPa 153/117/92
Max. casting area(40Mpa) CM2 1575
Injection plunger penetration mm 250
Diameter of pressure chamber flange mm 130
Height of pressure chamber flange mm 15
Max.working pressure MPa 14
Motor power Kw 30
Dimensions  (L*W*H) m 8*2.2*3
Machine lifting reference weight T 25
Oil tank capacity L 1050

(Due to the continuous progress of science and technology,the picture,parameter configuration,etc,

will not be changed without notice)

injection molding machine aluminium

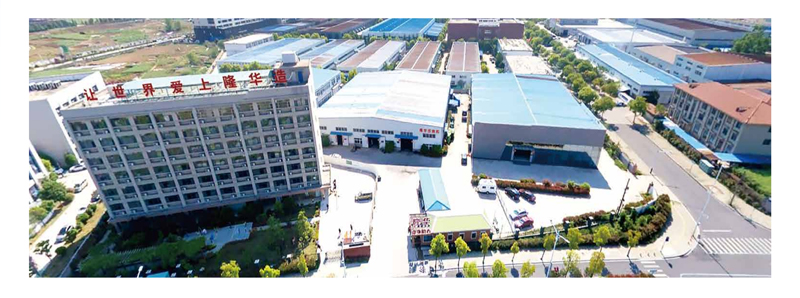

Bengbu Longhua Die Casting Machine Co.,Lid is a company based in Bengbu City,Anhui Province,
China.It specializes in the manufacturing of die casting machines and related equipment.
Established in 1982,Longhua Die Casting Machine Co.,Ltd has been involved in the die casting
industry for several decades.The company focuses on research,development,production,and
sales of various types of die casting machines.The company's product range covers cold chamber
die-casting machines,die-casting manipulators,industrial robots and peripheral equipment of
die-casting machines to meet the needs of different customers.
