■ Description

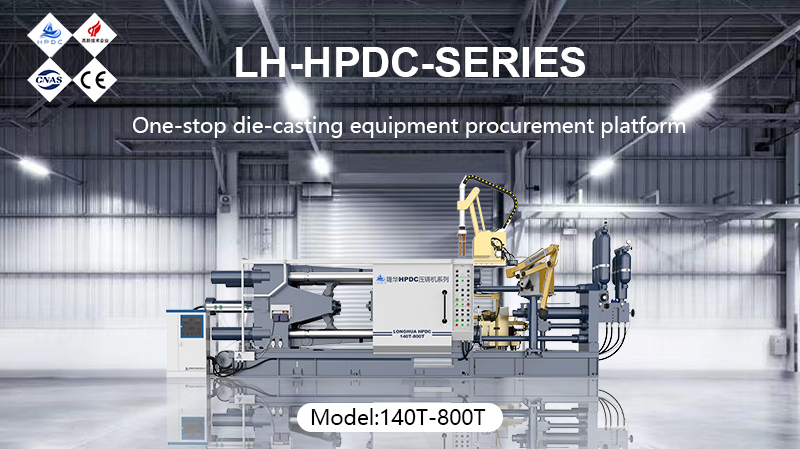

- 130T small cold chamber die casting machine is engineered to handle a broad range of metals, including aluminum, magnesium, and copper alloys, making it a versatile choice for diverse production needs. Additionally, we offer customized mold solutions based on client technical drawings, enabling precise and flexible production for both standard and complex casting applications.
-

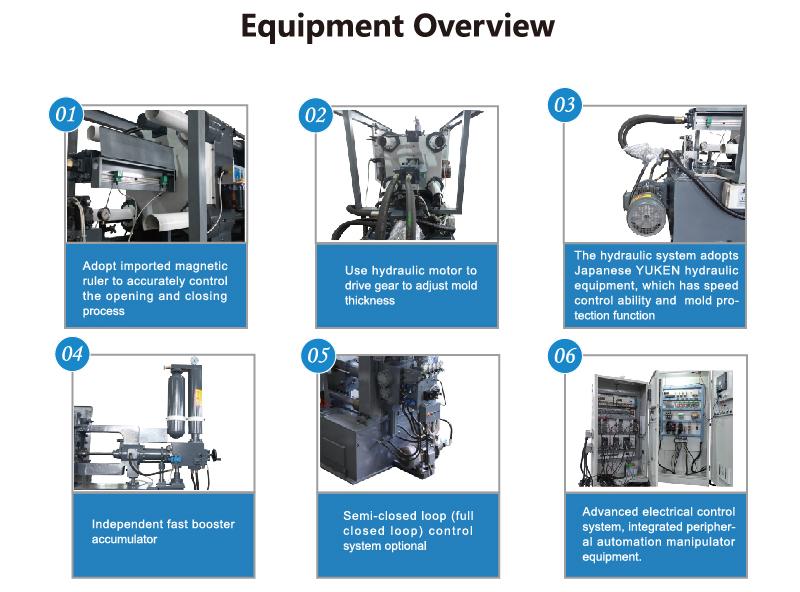

- Easy operation: Simplifies mold changes and control, boosting efficiency.
- High automation: Equipped with advanced controls for automated spraying, ladling, and extraction.
- Eco-friendly: Uses energy-saving tech to reduce consumption and emissions.
-
-
■ Key Features
| LH series of standard parameter table (130S) | ||
| ITEMS | Unit | Specification |
| Clamping Force | KN | 1450 |
| Opening stroke | mm | 350 |
| Die thickness(Min--Max) | mm | 250～500 |
| Space between tie bars | mm | 429*429 |
| Ejector stroke | mm | 85 |
| Ejector force | KN | 108 |
| Injection position（0 as center） | mm | 0，- 100 |
| Injection force（intensification) | KN | 220 |
| Injection stroke | mm | 320 |
| Plunger diameter | mm | ￠40 ￠50 ￠60 |
| lnjection weight(aluminum) | Kg | 1.6 |
| Casting pressure (intensification) | MPa | 175/112/77 |
| Max. casting area(40Mpa) | CM2 | 362 |
| Injection plunger penetration | mm | 115 |
| Diameter of pressure chamber flange | mm | 110 |
| Height of pressure chamber flange | mm | 10 |
| Max.working pressure | MPa | 12 |
| Motor power | Kw | 11 |
| Dimensions (L*W*H) | m | 4.6*1.2*1.5 |
| Machine lifting reference weight | T | 4.5 |
| Oil tank capacity | L | 480 |
■ About Longhua
Longhua Die Casting Machine was founded in 1950 and has been specializing in the production of die casting machines since 1982. It is a national high-tech enterprise specializing in the design, research and development, manufacturing, and sales of horizontal cold chamber J11 series die casting machines, die casting robots, die casting molds, die casting peripheral equipment, etc. It is a permanent member of the Hong Kong Foundry Association.
