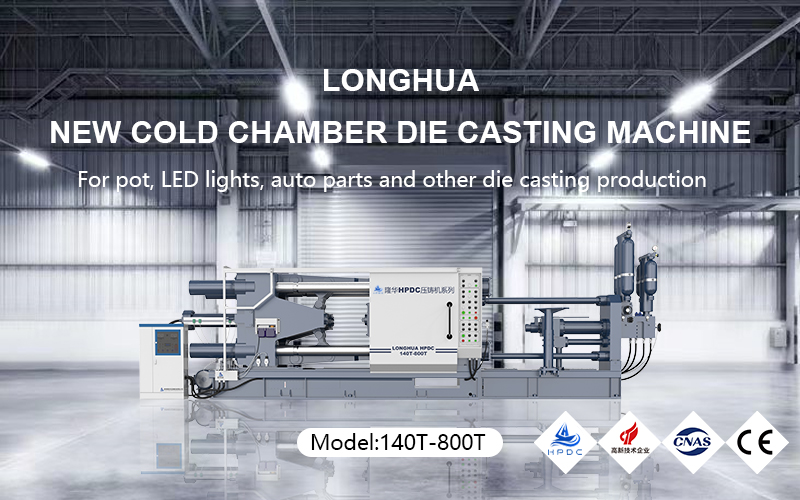

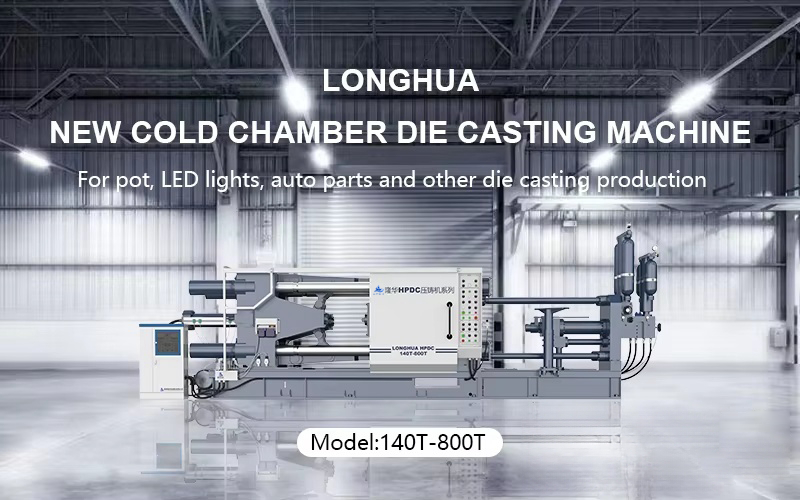

LH-HPDC 300T Full Automatic Horizontal Cold Chamber Die Casting Machine

Aluminum alloy cold chamber die casting machines have many advantages such as high quality, high efficiency, energy saving and environmental protection, so they are widely used in industrial production.

  • Product Origin:

    Anhui China
  • Item NO.:

  • Shipping Port:

  • Color:

  • Lead Time:

    30 working days
  • Price Range:

Products Description

aluminium injection molding machine

The aluminum alloy cold chamber die casting machine has many advantages, making it one of the commonly

used equipment in aluminum alloy die casting processing. Here are some of the main advantages:

1. High-quality casting surface quality: By controlling the temperature and pressure of aluminum alloy, the cold

chamber die-casting machine can produce castings with smooth surfaces and high precision, reducing or

avoiding defects such as pores and bubbles.
2. Manufacturing high-strength castings: Since the cold chamber die casting machine uses a high-pressure

injection casting process, the density of aluminum alloy castings is higher, so stronger and higher-strength

parts can be manufactured.
3. Good dimensional stability: The cold chamber die casting machine can effectively control the temperature

and pressure during the casting process, making the dimensional stability of the castings better, reducing

problems such as thermal deformation and shrinkage, and improving the processing accuracy and

consistency of parts. .

4. Efficient production: The cold chamber die-casting machine has functions such as rapid injection,

 cooling and demoulding. It has high production efficiency and can meet the needs of mass production and

reduce production costs.

5. Energy saving and environmental protection: Compared with traditional hot chamber die casting machines,

cold chamber die casting machines can reduce energy consumption during the production process, reduce

energy costs, and reduce aluminum alloy waste, which meets the requirements of energy conservation and

environmental protection.

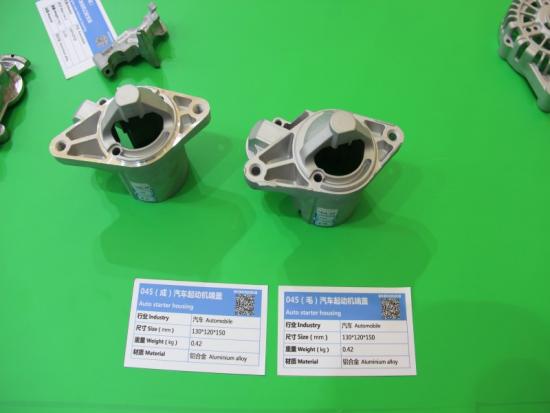

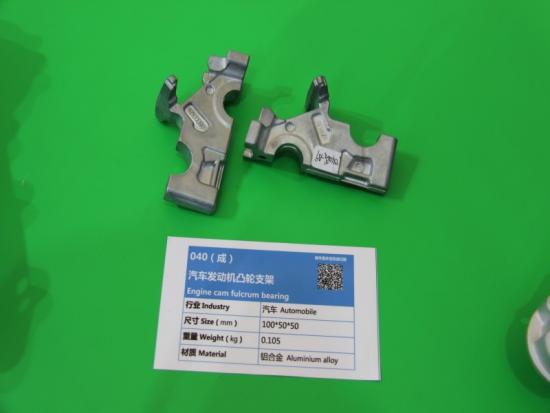

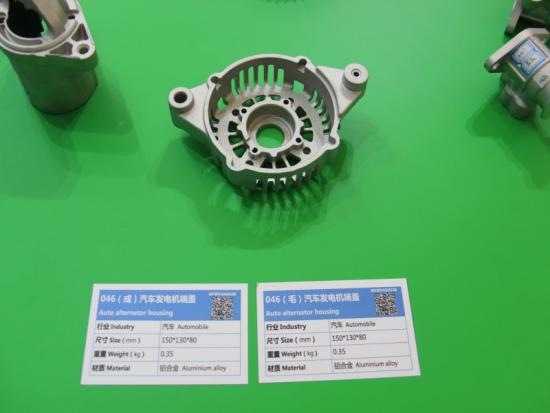

6. Wide range of applications: Cold chamber die casting machines are suitable for various types of aluminum

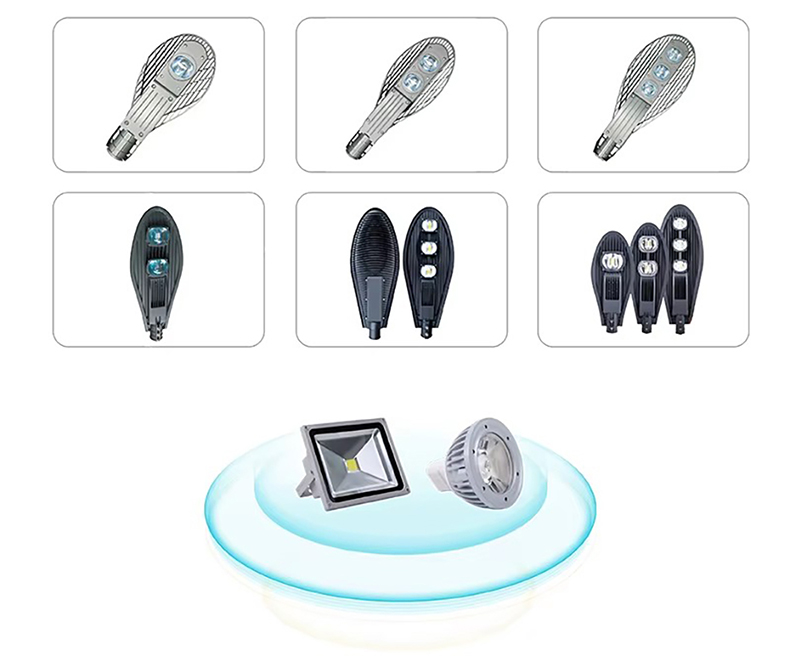

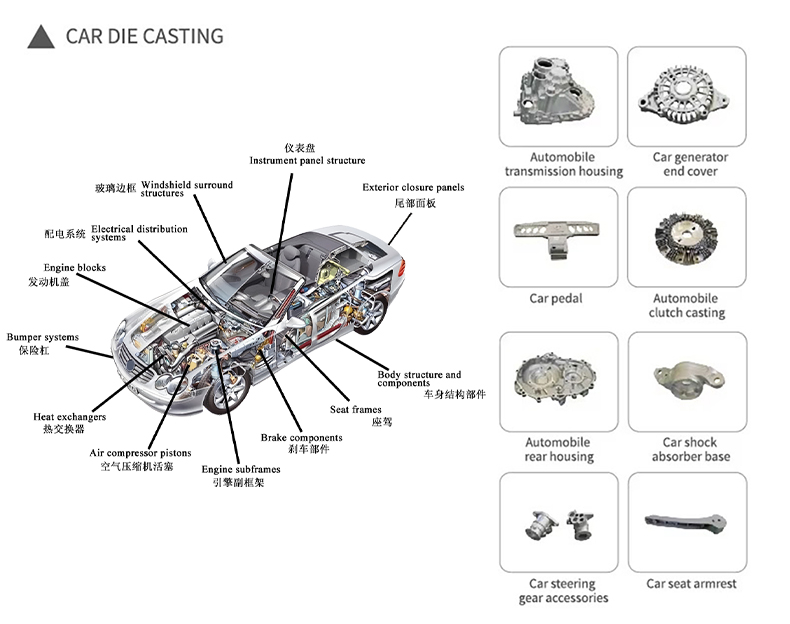

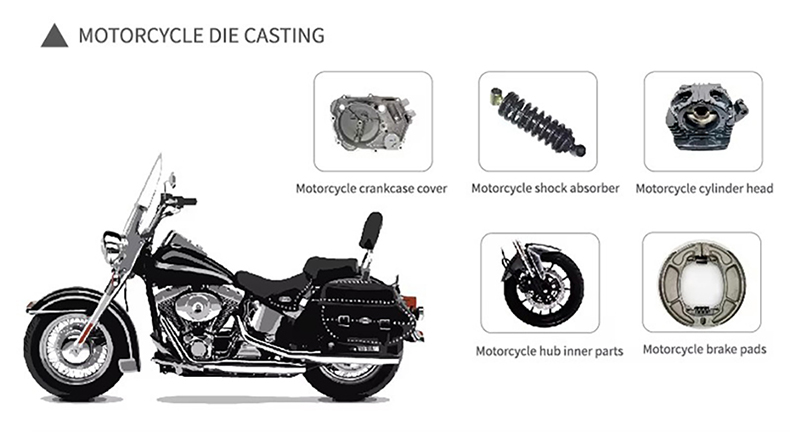

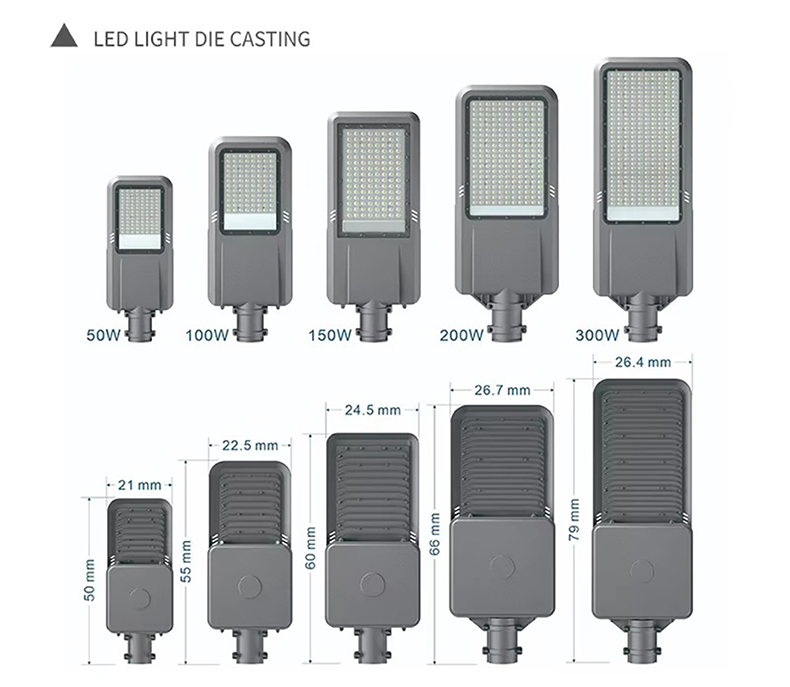

alloy materials and can be used in the manufacturing of parts in automobiles, aerospace, electronic products

and other fields.


LH series of standard parameter table (300 t)
ITEMS Unit Specification
Clamping Force KN 3000
Opening stroke mm 460
Die thickness(Min--Max) mm 250~700
Space between tie bars mm 570*570
Ejector stroke mm 100
Ejector force KN 150
Injection position(0 as center) mm 0,-160
Injection force(intensification) KN 350
Injection stroke mm 410
Plunger diameter mm ¢50 --¢70
lnjection weight(aluminum) Kg 3.2
Casting pressure (intensification) MPa 143/99/73
Max. casting area(40Mpa) CM2 720
Injection plunger penetration mm 140
Diameter of pressure chamber flange mm 110
Height of pressure chamber flange mm 10
Max.working pressure MPa 14
Motor power Kw 15
Dimensions  (L*W*H) m 6.6*1.85*2.8
Machine lifting reference weight T 12.5
Oil tank capacity L 700
(Due to the continuous progress of science and technology,the picture,parameter configuration,etc,

will not be changed without notice)

high pressure casting machine

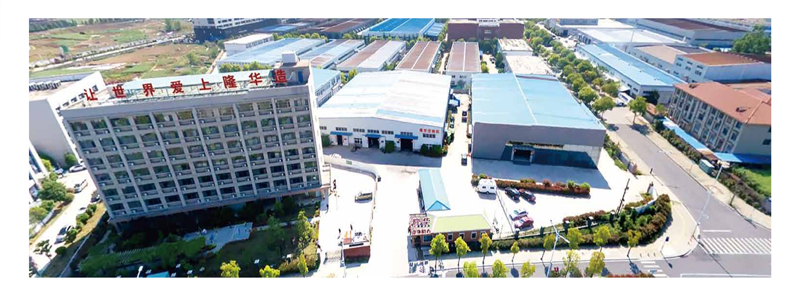

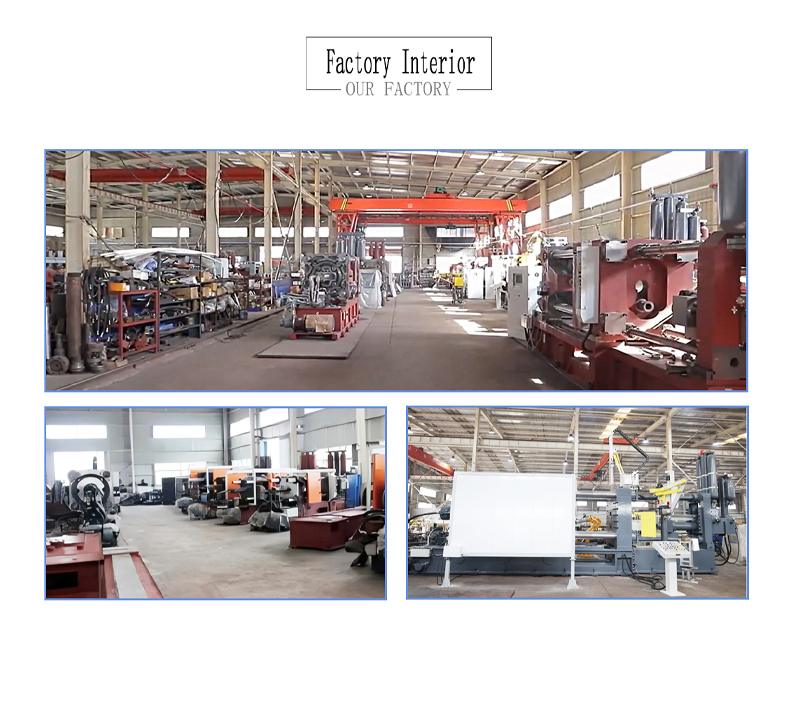

Bengbu Longhua Die Casting Machine Co.,Lid is a company based in Bengbu City,Anhui Province,
China.It specializes in the manufacturing of die casting machines and related equipment.
Established in 1982,Longhua Die Casting Machine Co.,Ltd has been involved in the die casting
industry for several decades.The company focuses on research,development,production,and
sales of various types of die casting machines.The company's product range covers cold chamber
die-casting machines,die-casting manipulators,industrial robots and peripheral equipment of
die-casting machines to meet the needs of different customers.
