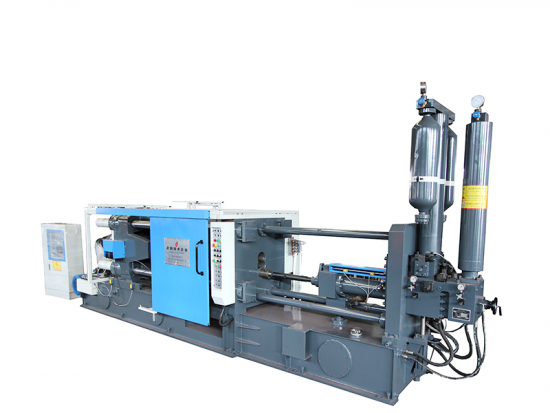

| LH series of standard parameter table (350 t) | ||
| ITEMS | Unit | Specification |
| Clamping Force | KN | 3500 |
| Opening stroke | mm | 520 |
| Die thickness(Min--Max) | mm | 250-750 |
| Space between tie bars | mm | 620*620 |
| Ejector stroke | mm | 110 |
| Ejector force | KN | 160 |
| Injection position（0 as center） | mm | 0，-175 |
| Injection force（intensification) | KN | 410 |
| Injection stroke | mm | 480 |
| Plunger diameter | mm | ￠60 -- ￠80 |
| lnjection weight(aluminum) | Kg | 4.5 |
| Casting pressure (intensification) | MPa | 145/106/81 |
| Max. casting area(40Mpa) | CM2 | 875 |
| Injection plunger penetration | mm | 180 |
| Diameter of pressure chamber flange | mm | 110 |
| Height of pressure chamber flange | mm | 10 |
| Max.working pressure | MPa | 14 |
| Motor power | Kw | 18.5 |
| Dimensions (L*W*H) | m | 6.7*1.9*2.88 |
| Machine lifting reference weight | T | 15 |
| Oil tank capacity | L | 810 |
will not be changed without notice)

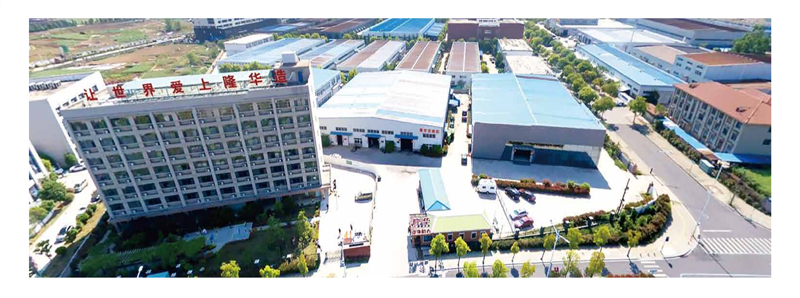

ABOUT US
Bengbu Longhua Die Casting Machine Co.,Lid is a company based in Bengbu City,Anhui Province,
China.It specializes in the manufacturing of die casting machines and related equipment.
Established in 1982,Longhua Die Casting Machine Co.,Ltd has been involved in the die casting
industry for several decades.The company focuses on research,development,production,and
sales of various types of die casting machines.The company's product range covers cold chamber
die-casting machines,die-casting manipulators,industrial robots and peripheral equipment of
die-casting machines to meet the needs of different customers.
