Aluminium Alloy Cold Chamber Die Casting Machine
  • cold chamber die casting machine

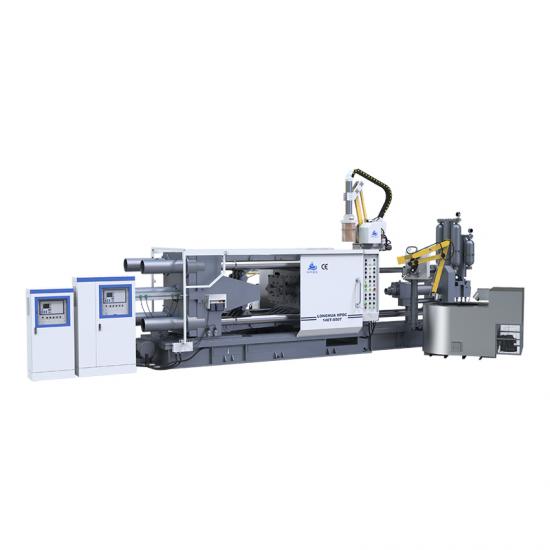

    LH-HPDC 300T Full Automatic Horizontal Cold Chamber Die Casting Machine

    LH-300T is a 300-ton horizontal cold chamber die-casting machine in the Longhua LH series. It has a clamping force of 3000 kN, an injection force (pressurization) of 240 kN, a maximum aluminum liquid injection volume of about 3.2–3.5 kg, and a maximum casting area of about 700–720 cm². The equipment adopts PLC human-machine interface control system and dual proportional control. It has four-stage injection function, the maximum injection speed exceeds 8 m/s, and the boosting and pressure building time is ≤15 ms. The injection and boosting systems are independently designed, with stable operation and molding accuracy.

    Application areas

    • New energy: motor end cover, small electronic control housing, battery bracket, heat dissipation base;
    • Automobile/Motorcycle: sensor housing, light bracket, pedal, oil pump housing, small valve body;
    • 3C and lighting: LED radiators, industrial control housings, camera housings, small communication parts;
    • Home appliances & tools: power tool housings, valve housings, water pump accessories, hardware structural parts;


    Item NO.: LH-300T

    Product Origin: Anhui China

    Shipping Port: shanghai
