■ Description

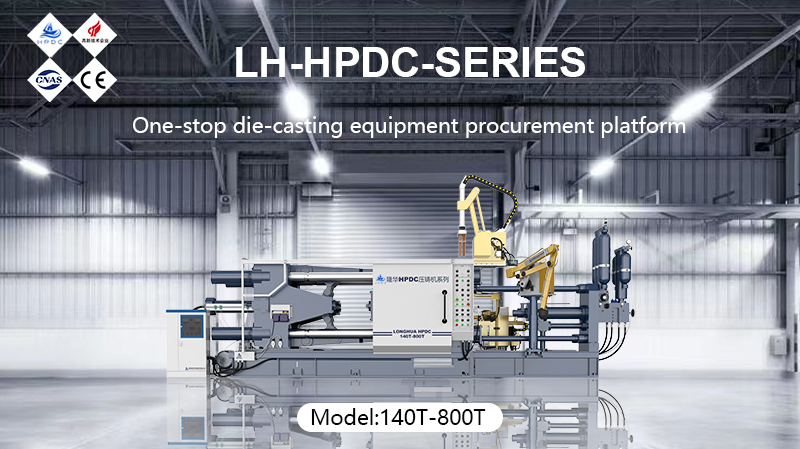

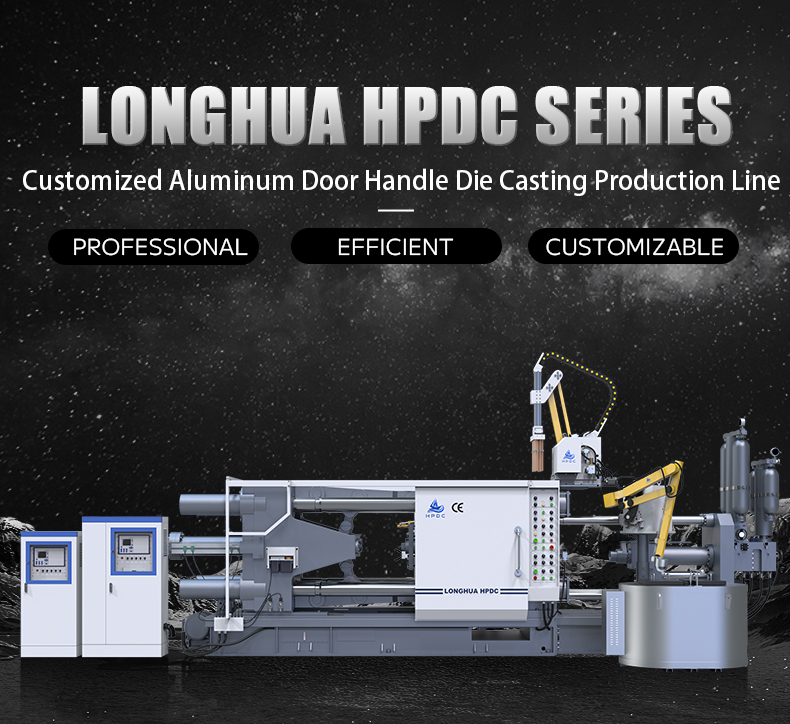

- 130T small cold chamber die casting machine is engineered to handle a broad range of metals, including aluminum, magnesium, and copper alloys, making it a versatile choice for diverse production needs. Additionally, we offer customized mold solutions based on client technical drawings, enabling precise and flexible production for both standard and complex casting applications.
-
- Easy operation: Simplifies mold changes and control, boosting efficiency.

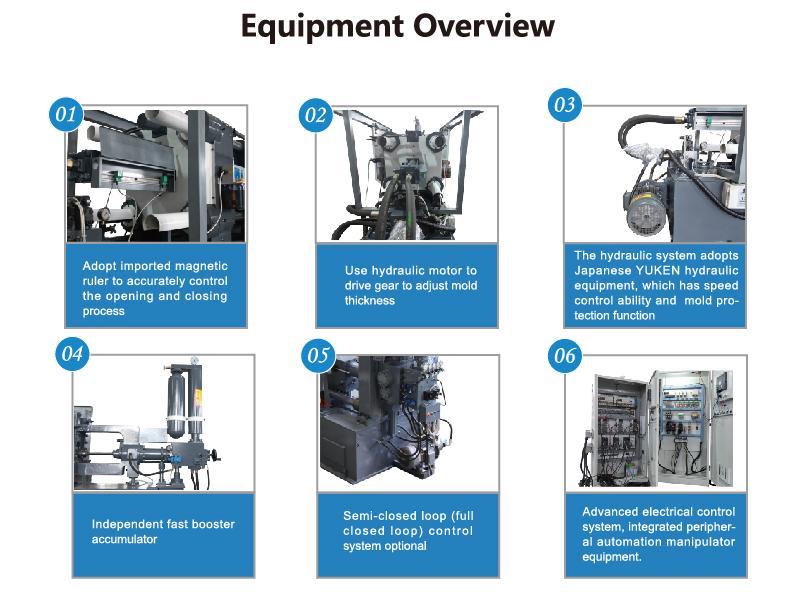

- High automation: Equipped with advanced controls for automated spraying, ladling, and extraction.
- Eco-friendly: Uses energy-saving tech to reduce consumption and emissions.
-
-
-
-
-
-
■ Key Features
| LH series of standard parameter table (130S) | ||
| ITEMS | Unit | Specification |
| Clamping Force | KN | 1450 |
| Opening stroke | mm | 350 |
| Die thickness(Min--Max) | mm | 250～500 |
| Space between tie bars | mm | 429*429 |
| Ejector stroke | mm | 85 |
| Ejector force | KN | 108 |
| Injection position（0 as center） | mm | 0，- 100 |
| Injection force（intensification) | KN | 220 |
| Injection stroke | mm | 320 |
| Plunger diameter | mm | ￠40 ￠50 ￠60 |
| lnjection weight(aluminum) | Kg | 1.6 |
| Casting pressure (intensification) | MPa | 175/112/77 |
| Max. casting area(40Mpa) | CM2 | 362 |
| Injection plunger penetration | mm | 115 |
| Diameter of pressure chamber flange | mm | 110 |
| Height of pressure chamber flange | mm | 10 |
| Max.working pressure | MPa | 12 |
| Motor power | Kw | 11 |
| Dimensions (L*W*H) | m | 4.6*1.2*1.5 |
| Machine lifting reference weight | T | 4.5 |
| Oil tank capacity | L | 480 |
■ About Longhua

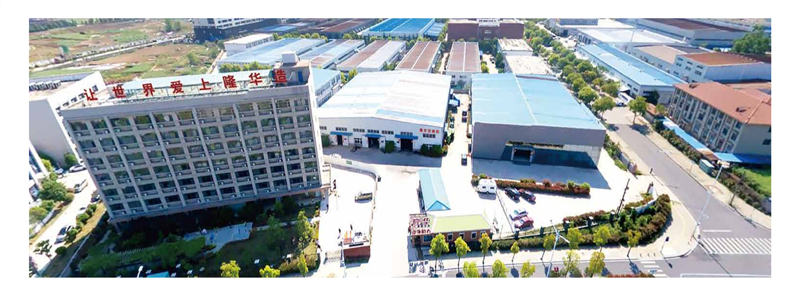

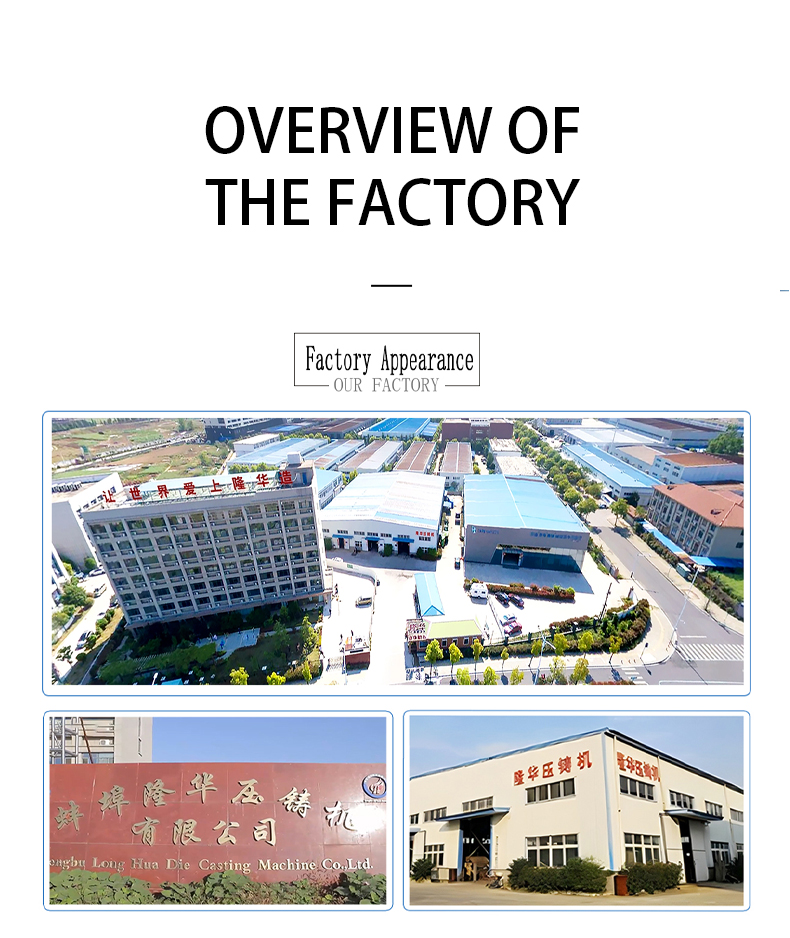

Longhua Die Casting Machine was founded in 1950 and has been specializing in the production of die casting machines since 1982. It is a national high-tech enterprise specializing in the design, research and development, manufacturing, and sales of horizontal cold chamber J11 series die casting machines, die casting robots, die casting molds, die casting peripheral equipment, etc. It is a permanent member of the Hong Kong Foundry Association.
FAQ：
1.What industries are your die-casting machines suitable for?

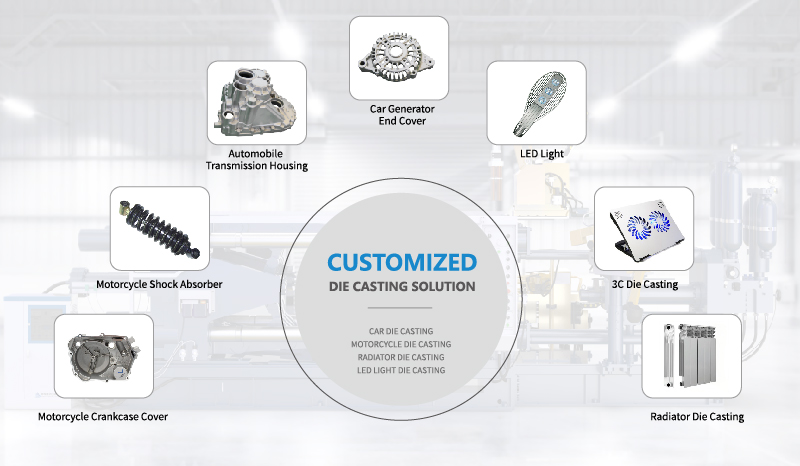

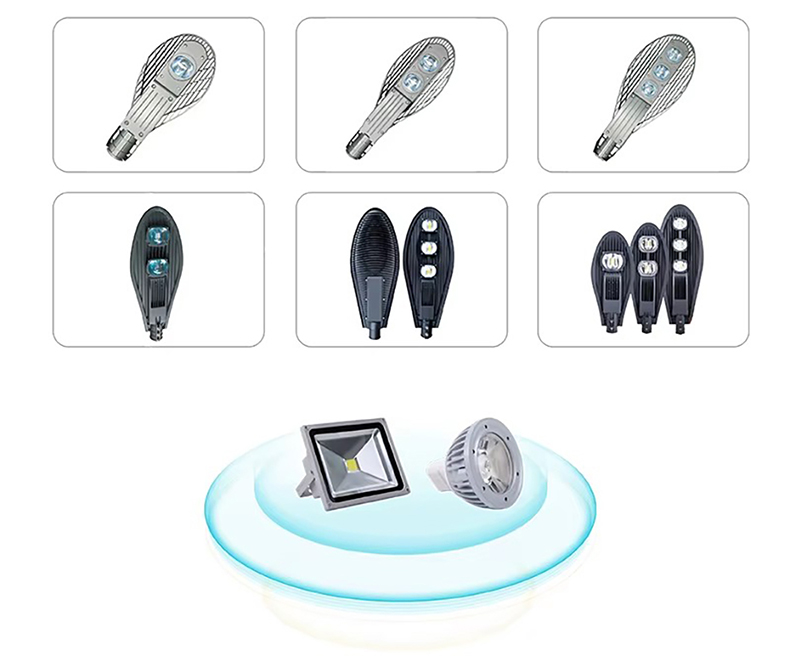

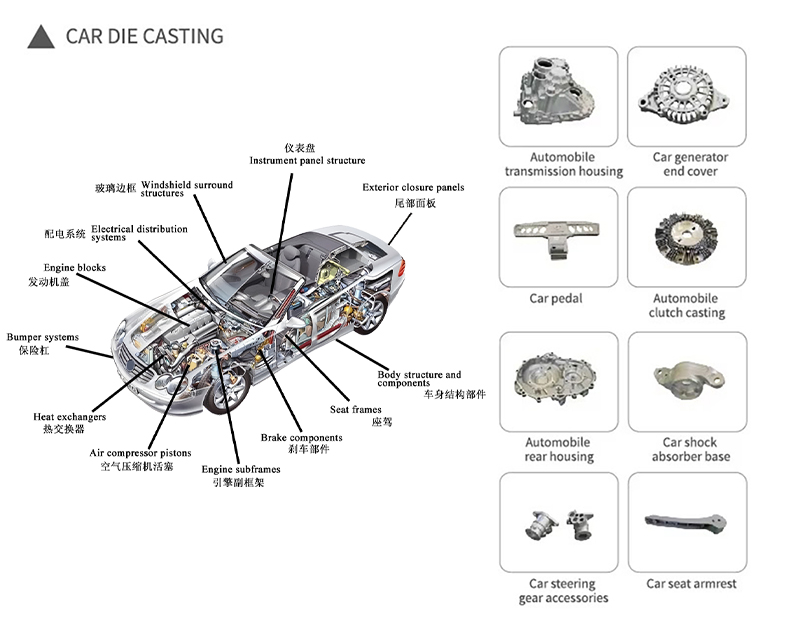

Our equipment is widely used in auto parts, hardware accessories, electronic components, newenersy ports, sanitary ware and oher manutacturing industries.
2.What is your after-sales service?
We provide one year waranty for the whole machine, lifelong technical support, online operation guidance and overseas engineer service for equipment debugging and maintenance.
3.Can you customize die-casting machines according to my requirements?
Yes, we support non stondard customization. We can adjust tonnage, injection system, control system and automation functions according to your production needs.
4.Is your enterprise a direct manufacturer or a trading company?
Factory direct sales, no intermediate costs, can directly buy the lowest price machine.
5.Once the advance payment is received, what is the lead time for the die-casting machine and matching mold?
Standard models and matching mold take 25-60 working days; customized machines and matching mold take 40-60 working days according to configuration.
