Seven-servo three-machine integrated technical characteristics
The amount of soup can be accurately set according to the size of the product to reduce the cost loss caused by artificial operation and fatigue; in addition, it also avoids human safety hazards and increases the output, especially for the fundamental guarantee of product quality.

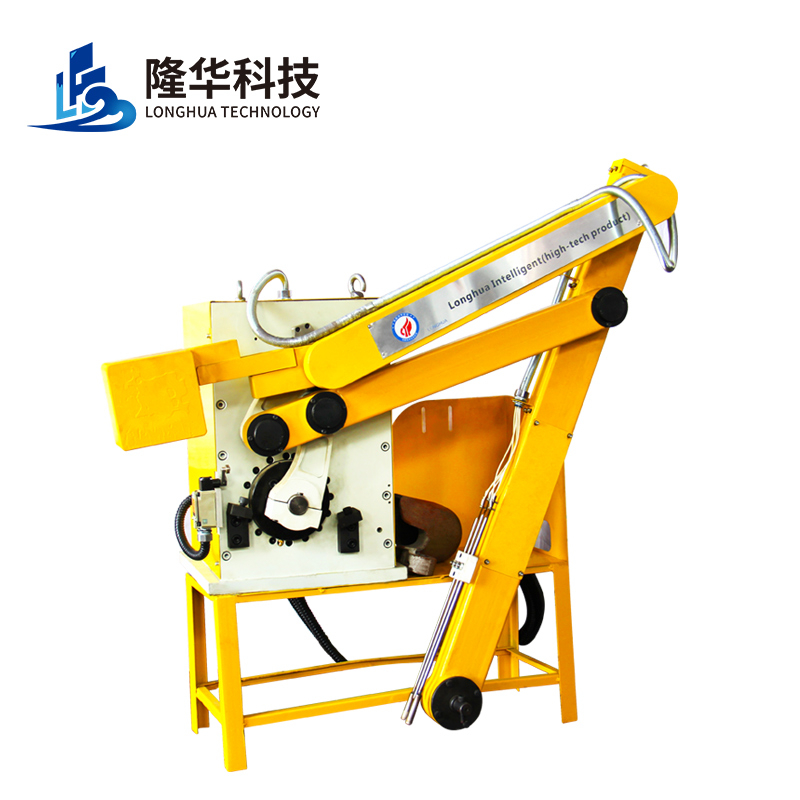

Technical characteristics of servo ladle machine:
1.The main accessories and electrical components are imported and controlled by PLC.Select and set any function of the touch screen;
2.Link structure, double servo motor drive, direct connection of reducer;Improve the stability and service life of the machine;
3.High precision for soup, enhance arm line.Advance speed and smooth operation, efficient production capacity;
4.Arm forward/backward and soup injection/take soup servo motor control, speed;Adjustable speed; motor brake function, aluminum soup is not easy to overflow;
5. With fault code display function, easy to check and repair.
Main parameters of servo ladle machine:
规格/机型Specification/model
2#
4#
5#
6#
适用压铸机型Applicable die casting machine
50-400T
450-900T
950-1300T
1600-3000T
最大给汤量Maximum amount of soup
4.5KG
10KG
20kg
35kg
给汤精度Give soup precision
+/-1%
+/-1%
+/-1%
+/-1%
给汤速度Speed of soup
Max.5-8sec
Max.10-15sec
Max.15-25sec
Max.35sec
坩锅内径Crucible inner diameter
Min.300-480mm
Min.520-550mm
Min.800mm
Min.850mm
取汤深度Depth of soup
Max.350mm
Max.350-450mm
Max.500mm
Max.500mm
手臂驱动电源Arm drive power
1500W 4P
2000W 4P
2500W 4P
3000W 4P
汤勺驱动电源Drive power for soup spoon
750W 4P
1000W 4P
1500W 4P
2000W 4P
电源power supply
2ø-380V 50-60HZ
2ø-380V 50-60HZ
2ø-380V 50-60HZ
2ø-380V 50-60HZ
电源容量battery capacity
1.5KVA
1.5KVA
1.5KVA
1.5KVA
操作电源Operating power
DC24V
DC24V
DC24V
DC24V
The main configuration of the servo ladle machine:
名称
Name
研发单位 型号
R & D unit model
制造商（产地）
Manufacturer (origin)
计算机编程
Computer Programming
中国科学院合肥院*蚌埠隆华
Hefei Institute of Chinese Academy of Sciences*Bengbu Longhua
蚌埠隆华（中国）
Bengbu Longhua (China)
信捷伺服电机+驱动
Xinje servo motor & drive
MS5G-130STE-CS07220BZ-21P5
信捷（中国）
Xinje (China)
信捷伺服电机+驱动
Xinje servo motor & drive
MS5H-60STE-CS0133OB-20P4
信捷（中国）
Xinje (China)
人机界面
HMI
TG765-MT
信捷（中国）
Xinje (China)
轴承
Bearing
6208/6207/6206...
NSK(日本)
NSK (Japan)
链条
Chain
40M/50#
KCM（日本）
KCM (Japan)
继电器
Relay
RXM2L2B2BD/24VDC/24AC
施耐德（法国）
Schneider (France)
高温线
High temperature wire
2.7m*4=10.8m
克拉比（日本）
Krabi (Japan)
操作开关
Operation switch
XB2BD21C/XB2BD53C
施耐德（法国）
Schneider (France)
电源供应器
Power Supplier
NES-50-24
明纬（中国台湾）
MEAN WELL (Taiwan, China)
尼克拉斯RV减速机
Niclas RV reducer
BX40E-153-F
苏州（中国）
Suzhou(China)
尼可拉斯行星减速机
Niclas planetary reducer
AB60-40
苏州（中国）
Suzhou(China)
可编程控制器PLC
Programmable Controller PLC
FX5U-40MT/ES
三菱（日本）
Mitsubishi (Japan)
We have the right to make any technical improvements without notice.
