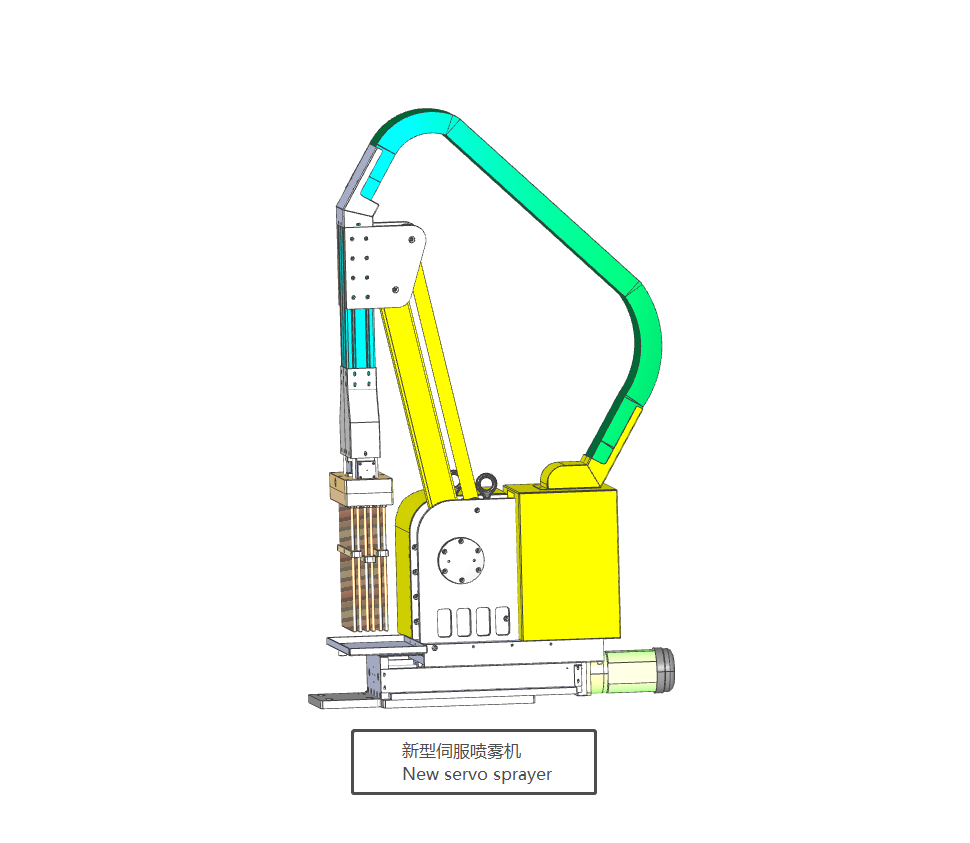

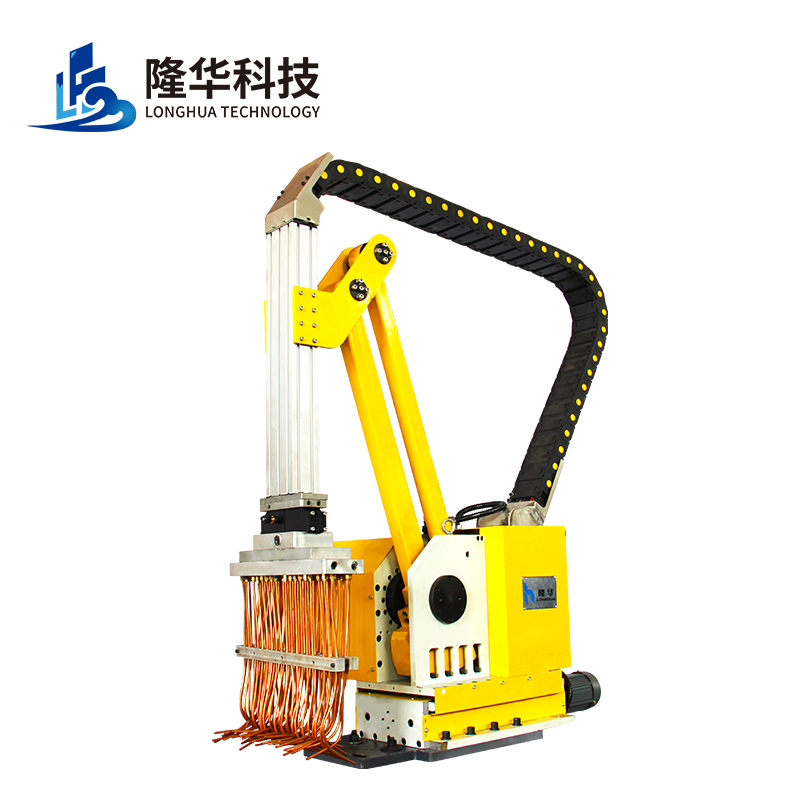

I. Longhua Servo Spray machine description:
Driven by servo reducer, the water mist device is put into the mold cavity for atomization and spraying through connecting rod structure.
Two, Longhua servo spray machine technical characteristics
1. Controller and servo motor drive, efficient and stable;
2. Time and amount of release agent can be sprayed separately on fixed and moving die sides
Make an adjustment;
3. Steady rising and falling speed, with standby function in advance;
4. With anti-falling device, buffer buffer function;
5.PLC control loop, touch screen adjustment, fault code display function, easy to check and repair.
Third. Main parameters of the servo spray machine:
|
规格/机型Specification/model |
2# |
4# |
5# |
6# |
|
适用压铸机型Applicable die casting machine |
125-400T |
450-900T |
950-1250T |
1300-1600T |
|
空压源Air pressure source |
5-6kgf/㎡ |
5-6kgf/㎡ |
5-6kgf/㎡ |
5-6kgf/㎡ |
|
离型剂Release agent |
4.5kgf/㎡ |
4.5kgf/㎡ |
4.5kgf/㎡ |
4.5kgf/㎡ |
|
膜厚调整Film thickness adjustment |
±200-250mm |
±300-350mm |
±400mm |
±400mm |
|
电源power supply |
380V50HZ |
380V50HZ |
380V50HZ |
380V50HZ |
|
上升时间Rise Time |
0.8-1.2s |
1.6-2.0s |
2.5s |
2.5s |
|
下降时间Fall time |
1.2s |
1.6-2.0s |
2.5s |
2.5s |
|
机械重量Machine weight |
400-450kg |
500-550kg |
630kg |
630kg |
|
名称 Name |
研发单位 型号 R & D unit model |
制造商（产地） Manufacturer (origin) |
|
计算机编程 Computer Programming |
中国科学院合肥院*蚌埠隆华 Hefei Institute of Chinese Academy of Sciences*Bengbu Longhua |
蚌埠隆华（中国） Bengbu Longhua (China) |
|
信捷伺服电机+驱动 Xinje servo motor + drive |
MS5G-13OSTE-CS05415BZ-20P8-S01 |
信捷（中国） Xinje (China) |
|
宇形减速马达 Yuxin Gear motor |
GV18-200-10A |
信捷（中国） Xinje (China) |
|
电磁阀 The electromagnetic valve |
VXD252LG/RV5221-08QE4 |
SMC（日本） SMC (Japan) |
|
电磁阀 The electromagnetic valve |
RV5221-08QE4 |
EMC（美国） EMC (U.S.A) |
|
雾化器Atomizer |
ST-5 |
亚德克（中国台湾） Adek (Taiwan, China) |
|
丝杆Screw |
SFNHRO2510C1DFG7-552-P0 |
TBI（中国台湾） TBI (Taiwan, China) |
|
操作开关Operation switch |
XB2BD21C/XB2BD53C |
施耐德（法国） Schneider (France) |
|
轴承Bearing |
62206-2RS/6206ZZCM/6306ZZCM/6208ZZCM/NJ204EM... |
NSK(日本) NSK (Japan) |
|
端子盘Terminal board |
TBC-10 |
天得（台湾） TEND (Taiwan) |
|
微动开关Micro Switch |
LXW5-11M |
天得（台湾） TEND (Taiwan) |
|
电源供应器Power Supplier |
NES-50-24 |
明纬（台湾） MEAN WELL (Taiwan) |
|
可编程控制器PLC Programmable Controller PLC |
FX5U-40MT/ES |
三菱（日本） Mitsubishi (Japan) |
|
尼克拉斯减速机 Niclas reducer |
BX40E-121-F |
苏州（中国） Suzhou (China) |
我们有权做任何技术改进而不另行通知
