■ Description
- Our automatic ladling robot features an intuitive touchscreen interface Its modular arm design simplifies routine maintenance, while the compact floor plan fits easily into existing die casting lines without major layout changes.
-
- PLC control with imported components and touchscreen operation.
- Dual-servo direct drive for stable, long-lasting performance.
- Fast, smooth arm travel with high feeding accuracy.
- Servo-driven motion with adjustable speed and anti-spill brake.
- Fault code display for quick troubleshooting.
-
Name Unit LONGHUA Five Linkage Type Auto Ladder Model LH-Ladler 2# LH-Ladler 4# LH-Ladler 6# Applicable die-casting machine models LH140T-LH400T LH450T-LH800T LH900T-LH1250T Give the amount of soup KG 0.5-4 4.5-8 46315 Provide soup accuracy % ±1 ±1 ±1 Inner diameter of crucible mm Min.480 Min.550 Min.800 Depth of crucible mm Min.400 Min.550 Min.600 Soup speed Sec 46371 16-18 25-30 Arm motor power KW 1.5 1.5 1.5 Spoon motor power KW 0.2 0.4 0.75 Operating power supply V DC24 Main control cabinet 3-phase 380V 50-60HZ Power capacity KVA 1.5 Product weight KG 240-260 280-350 380-420 Reference size mm 975*800*1250 1100*950*1400 1300*1100*1550
■ Key Features

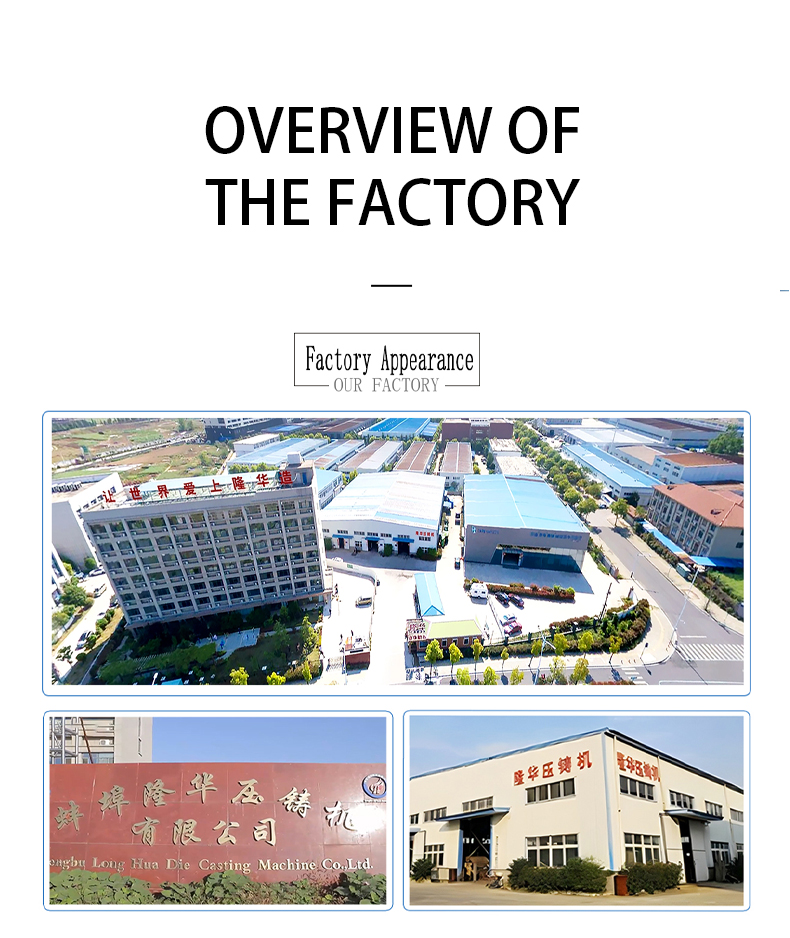

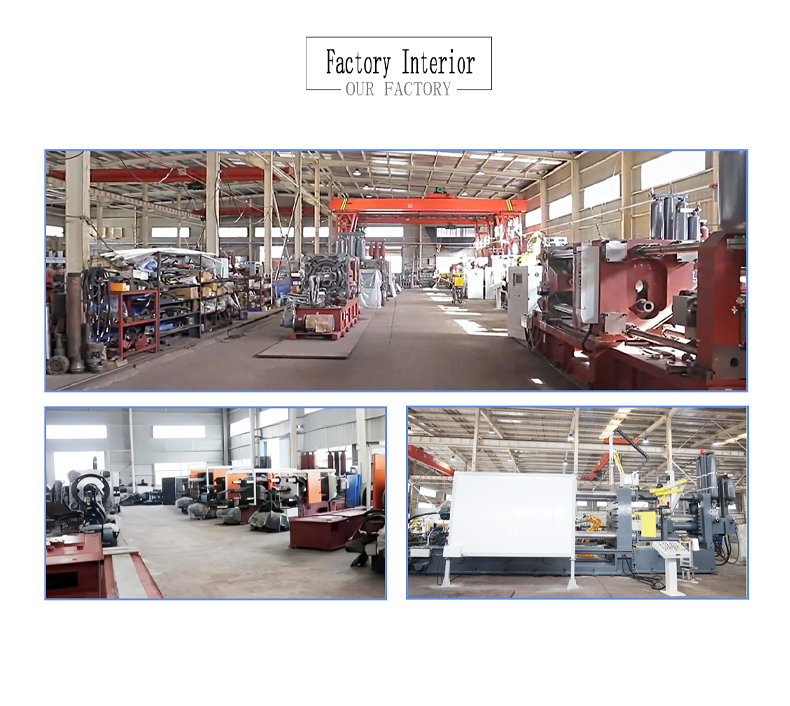

■ About Longhua
Longhua Die Casting Machine was founded in 1950 and has been specializing in the production of die casting machines since 1982. It is a national high-tech enterprise specializing in the design, research and development, manufacturing, and sales of horizontal cold chamber J11 series die casting machines, die casting robots, die casting molds, die casting peripheral equipment, etc. It is a permanent member of the Hong Kong Foundry Association.
