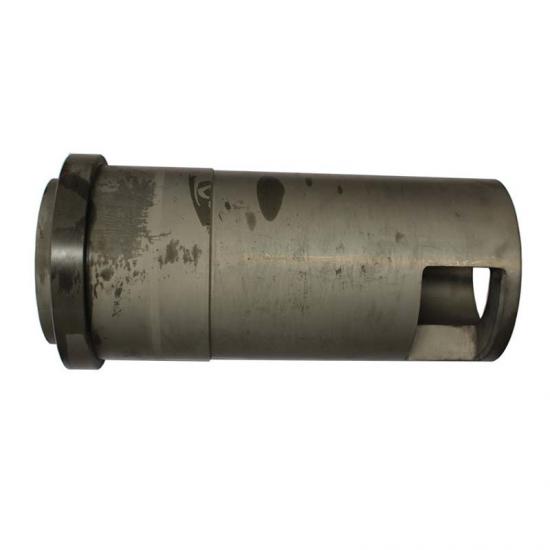

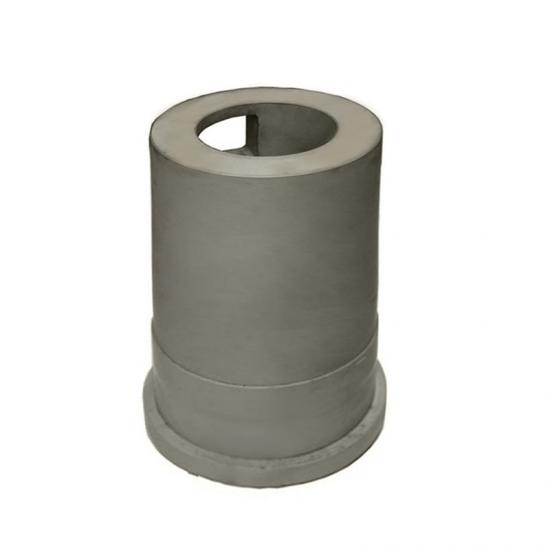

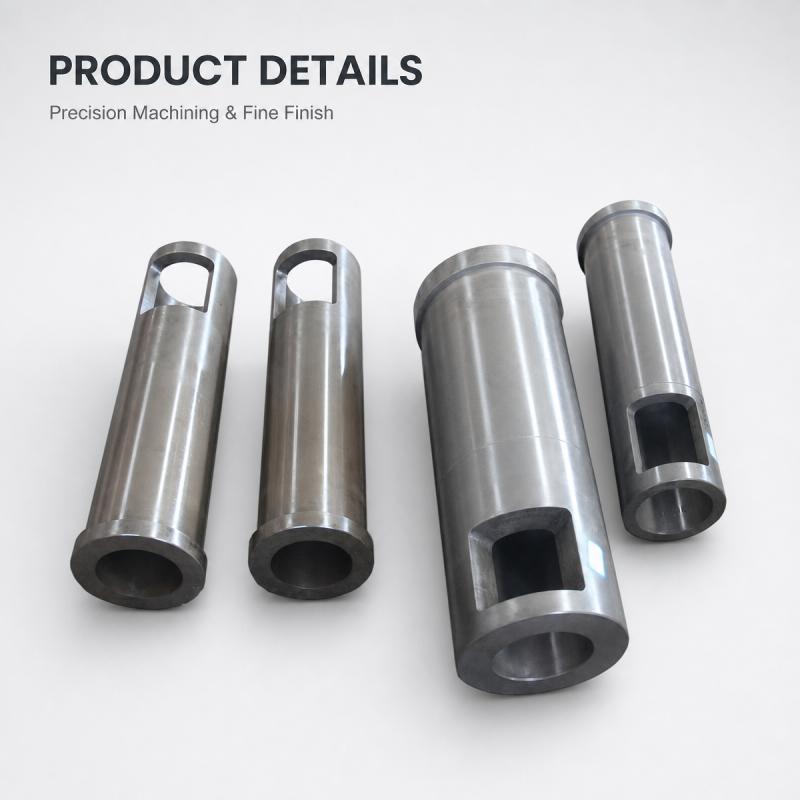

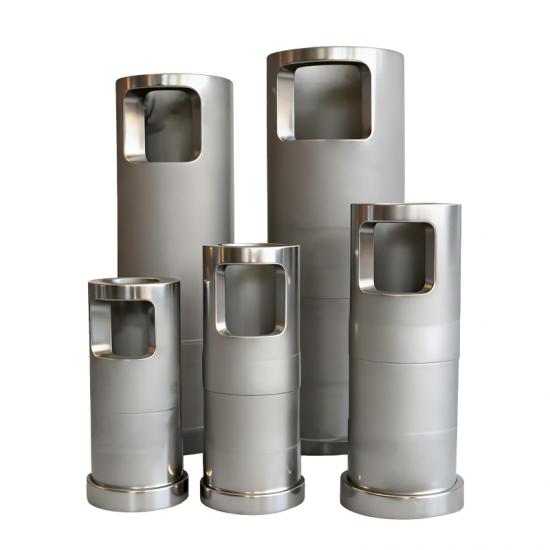

Longhua injection chamber (shot sleeve) serves as the core part of the die casting shot system. Fabricated from premium hot work die steel with nitriding treatment, it delivers excellent hardness and wear resistance. Compatible with plunger tips for aluminum die casting, we offer custom sizes for various requirements.
Material Parameters
Made of high-performance hot work die steel. The base material reaches a heat treatment hardness of HRC45-48. Nitriding layer depth: 0.25-0.3 mm, nitrided surface hardness ≥HV900.
Product Advantages
Easy to assemble and disassemble, wear-resistant and high-temperature resistant with excellent cooling performance, impact resistance and corrosion resistance. Customization is available according to customer drawings. The average service life of a single unit is ≥30,000 shots, durable with competitive price and reliable quality.
Application

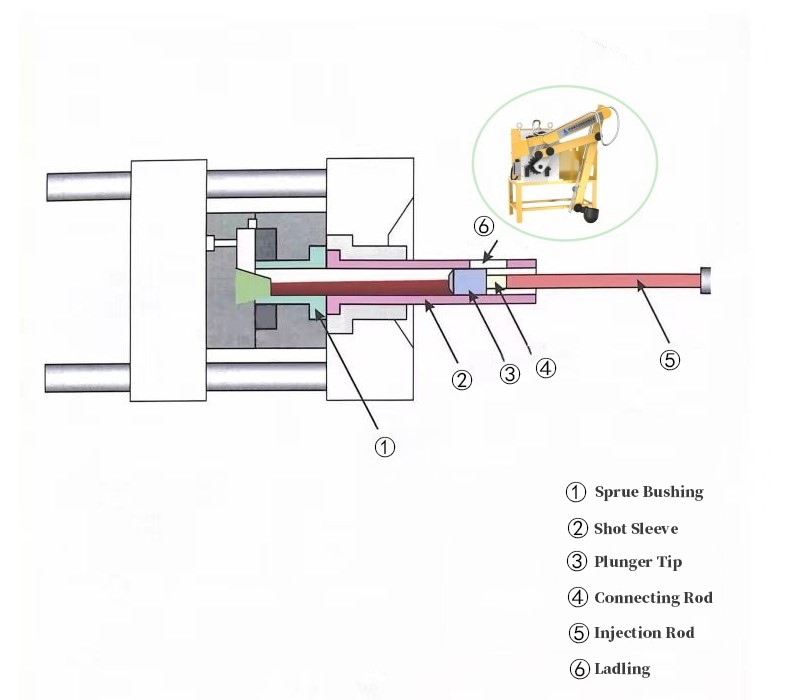

Special sleeve for the injection system of die casting machines. Matched with the injection plunger, it delivers molten aluminum from the sleeve to the mold cavity to complete the injection forming process.
Accessories & Consumables

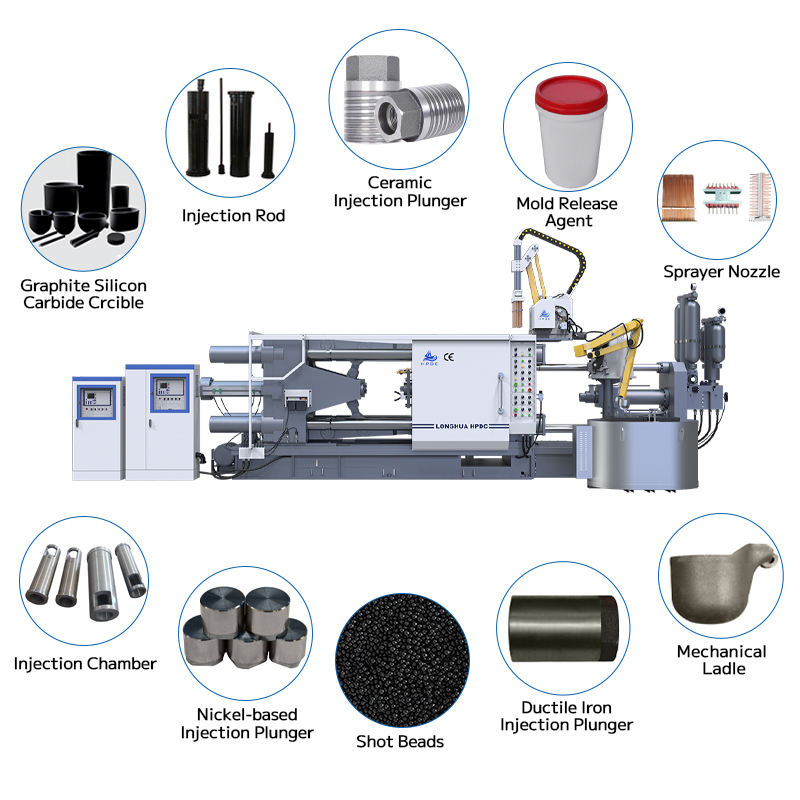

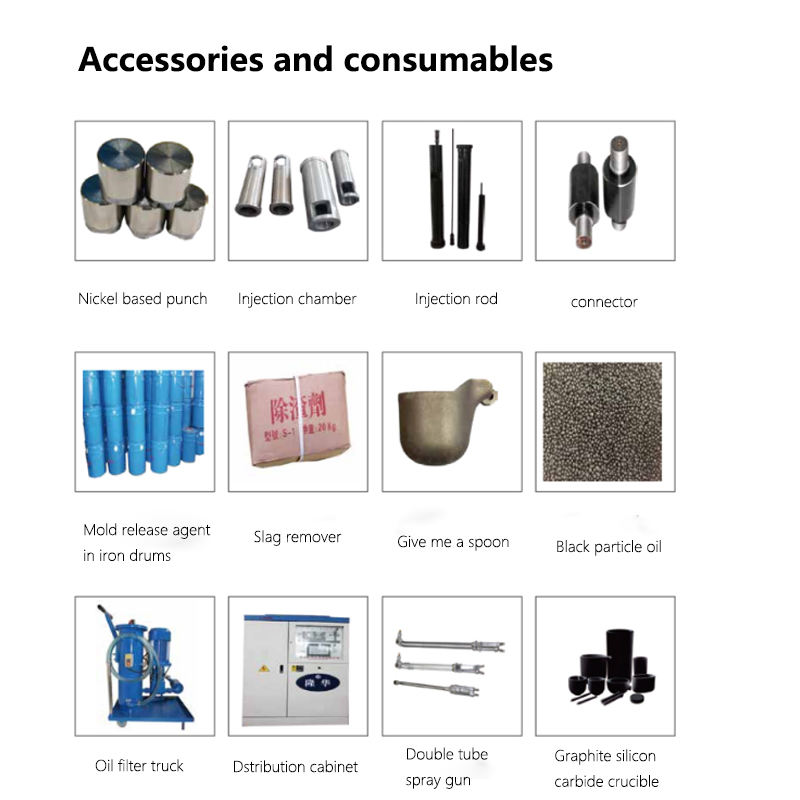

- We supply a full set of die casting spare parts and consumables that perfectly match our die casting machine, including plunger tips, injection rods, shot sleeves, ladles, mold release agents, degassing blocks and granular oils, and more.
- All these parts are manufactured under unified quality standards, guaranteeing stable coordination and consistent performance when working together.
- By sourcing all required components from Longhua, buyers can simplify procurement management, reduce matching risks and shorten lead time. We provide one-stop purchasing support for your die casting production line.
FAQ
Q1: What is the replacement frequency of shot sleeve as die casting machine consumable?
The service life and replacement cycle of shot sleeves are mainly determined by casting alloy, production cycle, material and surface nitriding treatment.Signs for replacement include: inner bore ovality, obvious thermal cracks, increased clearance between bore and plunger tip, metal backflow and rising scrap rate. Proper daily maintenance, stable melt temperature and matched plunger tip can effectively extend the service life of shot sleeves.
Q2: What is your shot sleeve made of?
Our shot sleeve adopts premium hot work die steel, processed with precision machining and deep nitriding treatment to achieve outstanding wear resistance and high-temperature performance.
Q3: What is the function of nitriding treatment on shot sleeve?
Nitriding treatment forms a high-hardness protective layer on the inner wall surface of the shot sleeve. It greatly improves high-temperature wear resistance, reduces aluminum adhesion and thermal fatigue cracking, effectively extending the service life during continuous die casting cycles.
Q4: Can you customize shot sleeves according to our drawings?
Yes. We support custom production of shot sleeves of different sizes to match various die casting machine models.
Q5: What is the lead time for custom shot sleeves?
The lead time depends on product specifications and order quantity. Please send us your drawing and requirement for an accurate delivery schedule.
