Specification

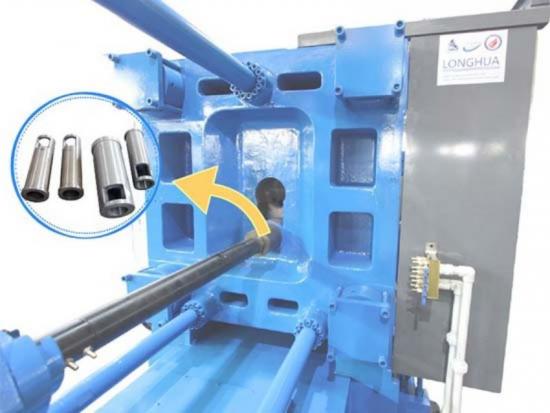

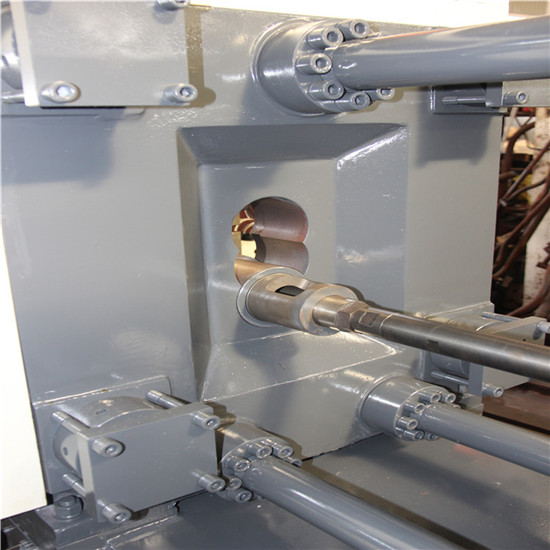

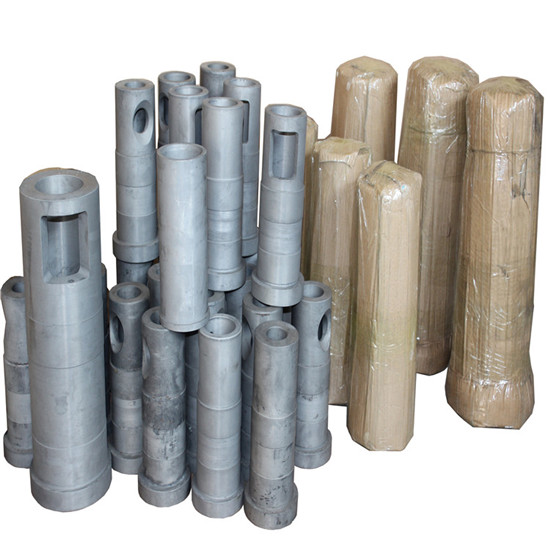

Our factory specializes in the production of various domestic and foreign brands of die-casting machine injection chambers (inlet barrel, melting cup sprue sleeve), water circulation cooling injection chamber, integral injection chamber, three double positioning injection chambers, and double conical positioning injection chambers. room etc.
The material is made of high-performance hot die steel: 3C2W8V HI3 electroslag material SKD-61 8407. The process adopts heat treatment matrix hardness HRC45-48, nitriding depth 0.25-0.3, nitriding hardness HV≥900, easy installation and disassembly, wear resistance and high temperature resistance. It has good cooling effect, impact resistance and corrosion resistance. It can be specially produced according to customer drawings. The average use mold number is ≥30,000 times/mold. It is durable, high quality and low price.The specific die-casting machine brands are as follows:Lijin, Yizumi, Bühler, Xinjiasheng, Aluminum Platform, Toshiba, Toyo, Ube, Yongda, Itela, Fulai, Sanji, Shanghai, Longhua, Baoyang, Haitian, etc.:The specific model specifications of the injection chamber of the die-casting machine are as follows: 125T/140T/160T /180T/ 200T/ 280T/ 400T/ 500T/550T / 630T/700T / 800T /900T/ 1000T/1100T /1250T/ 1300T/1600T /2000T /2600T/3000T/4500T
