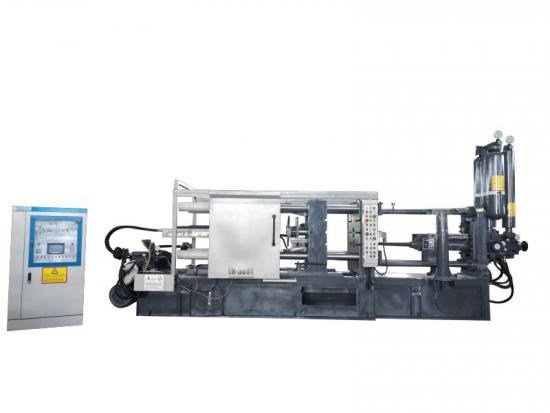

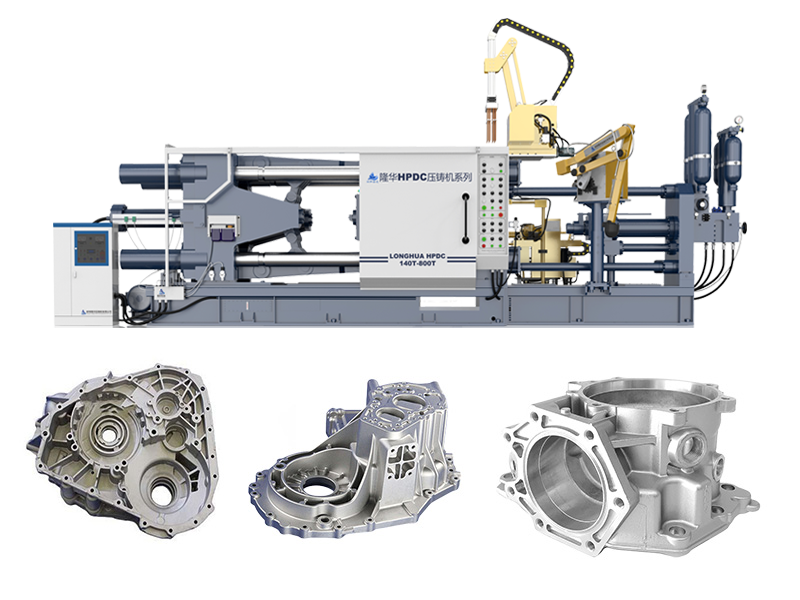

LH-HPDC 350T Magnesium Alloy Cold Chamber Die Casting Machine For Making Car Parts

Die-cast automotive parts have excellent strength, wear resistance and precision, and can meet the needs of the automotive manufacturing industry for high-quality, high-performance parts. These spare parts play an important role in improving the overall performance of the car, reducing costs and improving user experience.

  • Product Origin:

    Anhui China (Mainland)
  • Item NO.:

    LH-350T
  • Shipping Port:

    shanghai
  • Color:

    Customizable
  • Lead Time:

    30 working days
  • Price Range:

    1-2/52970$
Products Description

Automotive die casting

Feature

Auto parts die-casting machine has the following characteristics:
1. High precision: Die-casting machines can provide high-precision processing and casting to ensure that

the size, shape and surface quality of auto parts meet requirements.
2. High efficiency: The die-casting machine has efficient production capacity and can complete the

production of a large number of auto parts in a short time, improving production efficiency.
3. Energy saving and environmental protection: Modern auto parts die-casting machines adopt advanced

energy-saving technology to reduce energy consumption and emissions and comply with environmental

protection requirements.
4. High degree of automation: Equipped with an automated control system, it can achieve fully automatic

production, reduce manual intervention, and improve the stability and consistency of the production line.
5. Versatility: Die-casting machines can be used to process various materials, including aluminum alloys,

 magnesium alloys, zinc alloys, etc., to meet the manufacturing needs of different auto parts.
6. High reliability: The die-casting machine has a solid structure, stable and reliable operation, and can work

continuously for a long time without damage.
7. Strong adaptability: The die-casting machine can be adjusted and customized according to the design

requirements of different auto parts, adapting to the casting needs of various complex shapes and sizes.
8. High cost-effectiveness: Although the investment cost of a die-casting machine is relatively high, it can

bring significant cost-effectiveness in long-term operations due to its high efficiency and high-precision

processing characteristics.

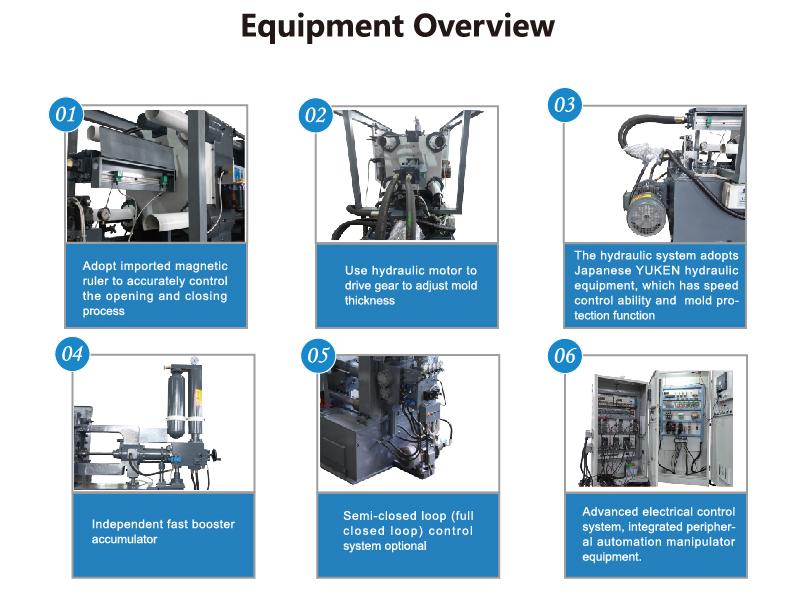

Characteristics of die casting machine

LH series of standard parameter table (350 t)
ITEMS Unit Specification
Clamping Force KN 3500
Opening stroke mm 520
Die thickness(Min--Max) mm 250-750
Space between tie bars mm 620*620
Ejector stroke mm 110
Ejector force KN 160
Injection position(0 as center) mm 0,-175
Injection force(intensification) KN 410
Injection stroke mm 480
Plunger diameter mm ¢60 -- ¢80
lnjection weight(aluminum) Kg 4.5
Casting pressure (intensification) MPa 145/106/81
Max. casting area(40Mpa) CM2 875
Injection plunger penetration mm 180
Diameter of pressure chamber flange mm 110
Height of pressure chamber flange mm 10
Max.working pressure MPa 14
Motor power Kw 18.5
Dimensions  (L*W*H) m 6.7*1.9*2.88
Machine lifting reference weight T 15
Oil tank capacity L 810
(Due to the continuous progress of science and technology,the picture,parameter configuration,etc,

will not be changed without notice)

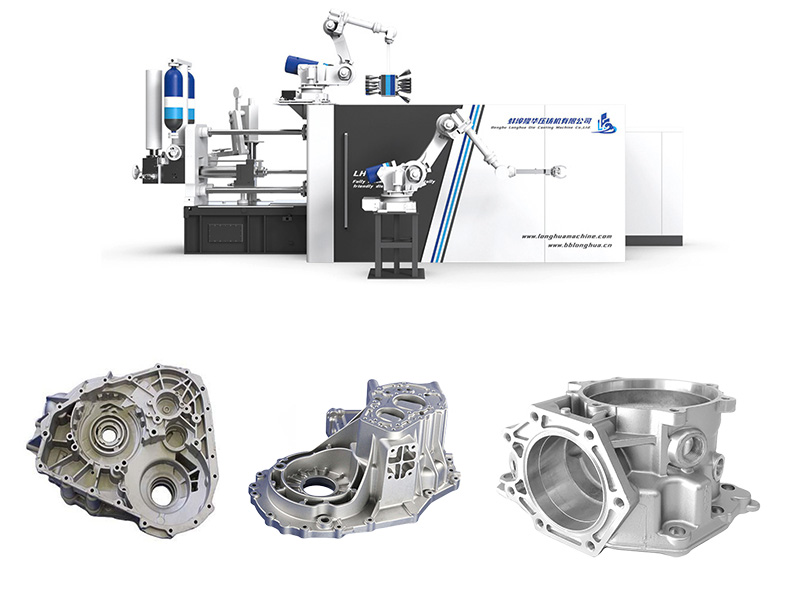

aluminium casting machine price

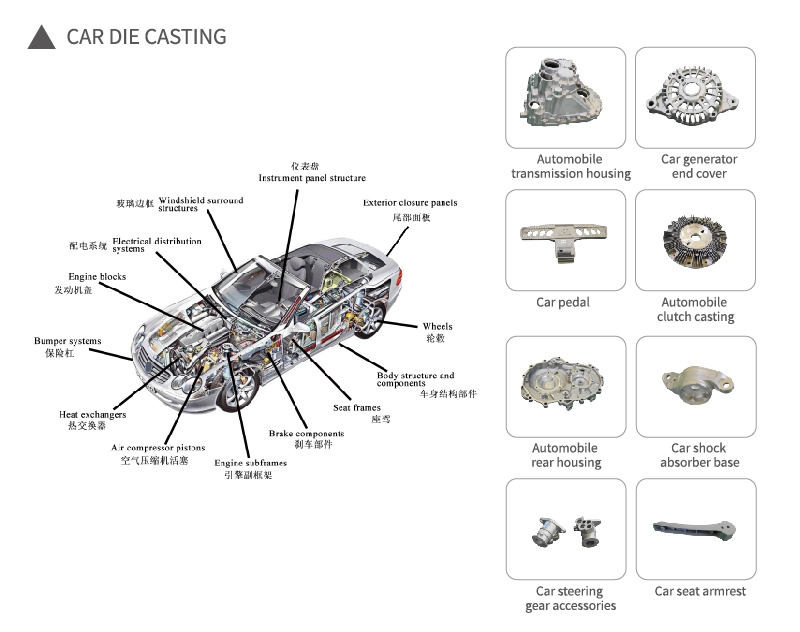

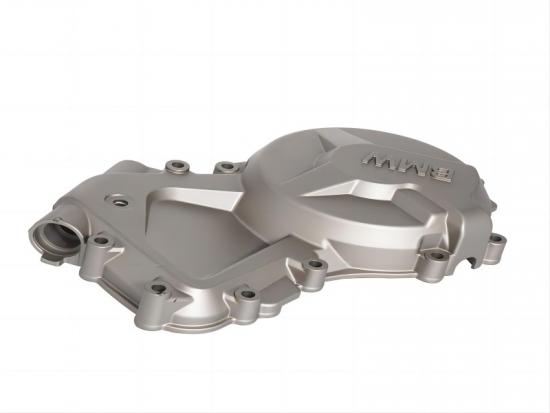

Die-cast auto parts are auto parts manufactured using die-casting technology, usually made of

metals such as aluminum alloy, magnesium alloy or zinc alloy. The manufacturing process of

these parts involves heating the metal to a liquid state and then injecting it through high pressure

into a pre-designed mold to ultimately form the desired auto parts product. Here are some

common types of die-cast automotive parts and their characteristics:

1.Engine parts: Die casting technology can manufacture various types of engine parts, such as

cylinder blocks, cylinder heads, crankcases, etc. These parts often need to have high strength

and wear resistance to withstand the high temperatures and pressures of engine operation.
2.Transmission system parts: Die-casting technology can also be used to manufacture

transmission system parts, such as gearbox housings, drive shaft housings, etc. These parts

need to have good sealing and structural strength to ensure the normal operation and safety

of the transmission system.

3.Body structure parts: Die-casting technology can manufacture body structure parts, such as

door frames, beams, brackets, etc. These parts usually need to be lightweight and high-strength

to improve the fuel economy and safety performance of the vehicle.
4.Braking system parts: Braking system parts such as brake calipers, brake cylinders, etc.

can also be manufactured through die-casting technology. These parts need to have good

corrosion resistance and thermal stability to ensure the reliability and safety of the braking system.
5.Chassis parts: Chassis parts such as suspension brackets, steering brackets, etc. are also common

types of die-cast automotive parts. These parts need to have high strength and rigidity to

withstand the various forces and vibrations of the vehicle while driving.

aluminum die casting manufacturer

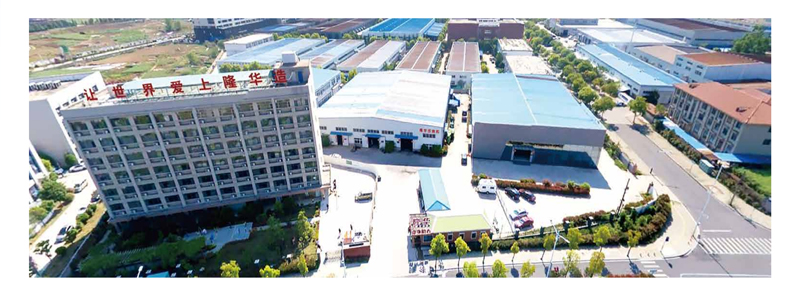

ABOUT US
Bengbu Longhua Die Casting Machine Co.,Lid is a company based in Bengbu City,Anhui Province,China.
It specializes in the manufacturing of die casting machines and related equipment.
Established in 1982,Longhua Die Casting Machine Co.,Ltd has been involved in the die casting industry for
several decades.The company focuses on research,development,production,and sales of various types of
die casting machines.The company's product range covers cold chamber die-casting machines,die-casting
manipulators,industrial robots and peripheral equipment of die-casting machines to meet the needs of
different customers.

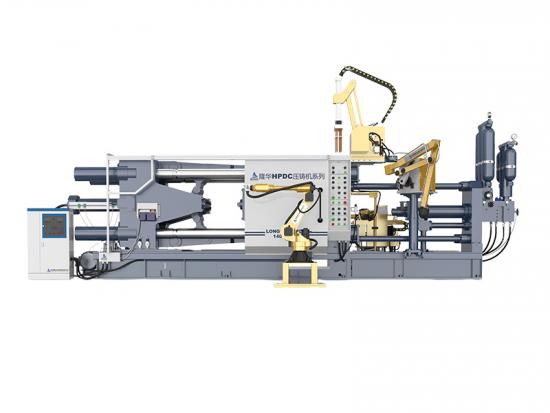

die-casting machine
