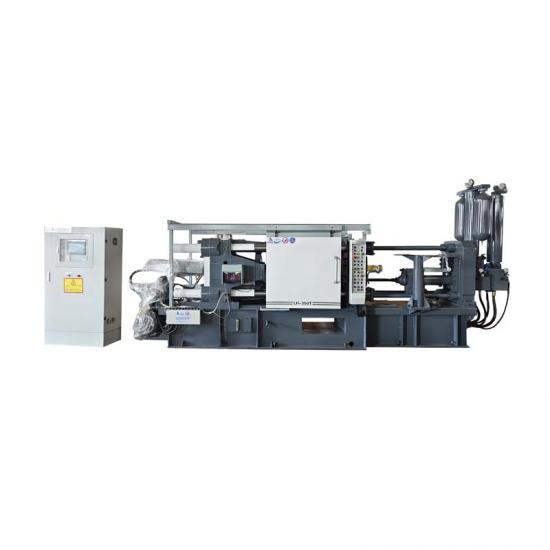

Aluminium Alloy Cold Chamber Die Casting Machine

LH-HPDC 650T High Pressure Full Automatic Magnesium Alloy Cold Chamber Die Casting Machine

The LH-650T horizontal cold chamber die-casting machine, with a clamping force of 6500kN, is the main medium-to-large tonnage die-casting machine. It is positioned between 500T and 800T. It has solid rigidity and sufficient injection capacity, and is suitable for mass production of aluminum alloys and magnesium alloys. It has optional servo energy-saving and high-pressure die-casting configurations and strong automation expansion capabilities. It is suitable for the mass production of medium and large shell die-casting parts in new energy, automobiles, and communication lighting, and supports the delivery of domestic and foreign export projects.

Application areas

  • New energy industry: motor housing, electronic control housing, water-cooling cavity, battery bracket, high-power heat dissipation base;
  • Automotive industry: gearbox housings, engine brackets, oil pump valve bodies, large headlight housings, chassis connectors, brake structural parts;
  • Communications & Lighting: 5G base station radiator, high-power LED street light housing, industrial control chassis housing;
  • General industry: air compressor casings, pump valve bodies, agricultural machinery aluminum alloy components, elevator accessories, large power tool casings;


  • Product Origin:

    Anhui China (Mainland)
  • Item NO.:

    LH-650T
  • Shipping Port:

    shanghai
  • Color:

    Customizable
  • Lead Time:

    30 working days
  • Price Range:

    1-2/100280$
Products Description

Core Selling Point

      ✅Finite element optimization of the fuselage, strong mold clamping rigidity, and not easy to expand the mold
      The fuselage, head plate, second plate, and tail plate are made of integral cast steel + finite element stress simulation design. The Gorin pillars are high-strength chrome plating and tempered. The hinge structure is wear-resistant and fatigue-resistant. The clamping force output is uniform, and the template deformation is small during high-pressure injection. It effectively suppresses flash and material running, and is suitable for structural parts with large projection areas.
      ✅Independent energy storage high-speed injection system with controllable injection curve
      It is equipped with independent fast injection and boosting accumulators, and is equipped with a magnetometer for fully closed-loop position feedback; the switching points of slow injection and fast injection, boosting pressure, and pressure building time can be accurately adjusted, with high injection repeatability, reducing air entrainment and pore defects, and supporting vacuum die-casting upgrades.
      ✅Servo energy-saving hydraulic system, stable consumption reduction
      Servo main pump + imported hydraulic valve group, oil supply on demand, low power consumption in no-load standby, and stable oil temperature control; compared with traditional quantitative pumps, it saves 15%–25% of energy overall, has low oil temperature, and has longer life of oil seals and oil pipes, making it suitable for 24-hour continuous production.
      ✅Intelligent PLC human-machine control system, the process can be stored and traced
      The independent industrial control touch screen can store hundreds of sets of mold process parameters; it has built-in fault self-diagnosis, production counting, cycle time recording, and process curve monitoring; the strong and weak current separation layout has strong anti-interference and supports docking with MES and remote operation and maintenance.

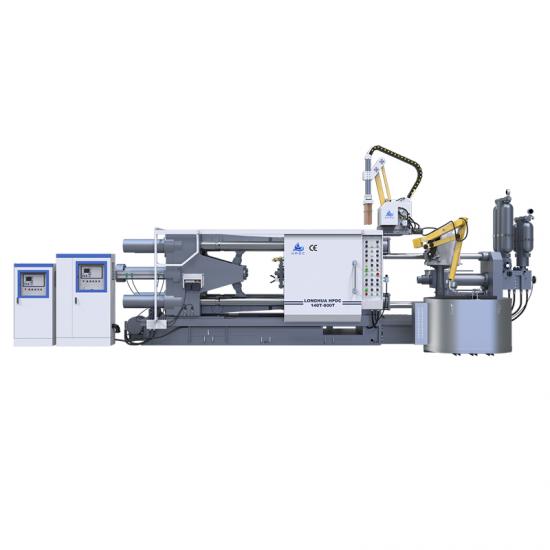

      ✅Modular expansion to adapt to automated die-casting units
      Natively reserved manipulator, sprayer, soup machine, and vacuum device interfaces, with complete signal interlocking; it can quickly build a fully automatic die-casting island, and can also perform manual spraying and manual soup production on a single machine, and flexibly switch production modes.
      ✅Original one-stop package + localized technical services
      Longhua complete machine + melting cup, ceramic injection head, hand-held spray gun, and complete supply of spare parts; engineers come to install the machine, adjust the machine, and provide operator training; support customized product-based lengthening injection, increased ejection force, and vacuum die-casting transformation plans.


      high pressure casting machine

      Die casting machine working cycle

  1. Mold closing: the movable template moves forward, and the mold is closed and locked.
  2.  Pouring: A certain amount of molten metal is scooped into the pressure chamber by manual or automatic soup feeding machine.
  3. Slow injection: The punch is pushed forward at a low speed to seal the pouring opening and smoothly discharge the air in the press chamber to avoid air entrainment.
  4. Rapid injection: After the molten metal reaches the inner gate, the punch accelerates and fills the cavity at high speed before the metal solidifies.
  5. Pressurization and pressure holding: After the cavity is filled, the pressurization system pressurizes the solidifying metal, shrinks it, and reduces pores and shrinkage porosity.
  6. Mold opening and ejection: After maintaining pressure and cooling, the mold is opened, and the ejection mechanism pushes out the casting to enter the next cycle.

      radiator making machine

      Product Parameters

      LH series of standard parameter table (650 T)

      ITEMS Unit Specification
      Clamping Force KN 6500
      Opening stroke mm 650
      Die thickness(Min--Max) mm 350~900
      Space between tie bars mm 810*810
      Ejector stroke mm 160
      Ejector force KN 315
      Injection position(0 as center) mm 0,-250
      Injection force(intensification) KN 590
      Injection stroke mm 650
      Plunger diameter mm ¢80 ¢90¢100
      lnjection weight(aluminum) Kg 10
      Casting pressure (intensification) MPa 123/79
      Max. casting area(40Mpa) CM2 1525
      Injection plunger penetration mm 280
      Diameter of pressure chamber flange mm 165
      Height of pressure chamber flange mm 15
      Max.working pressure MPa 14
      Motor power Kw 30
      Dimensions  (L*W*H) m 8*2.1*3.1
      Machine lifting reference weight T 30
      Oil tank capacity L 1100

      (Note: We reserve the right to make any technical improvements without prior notice)

      Company Introduction

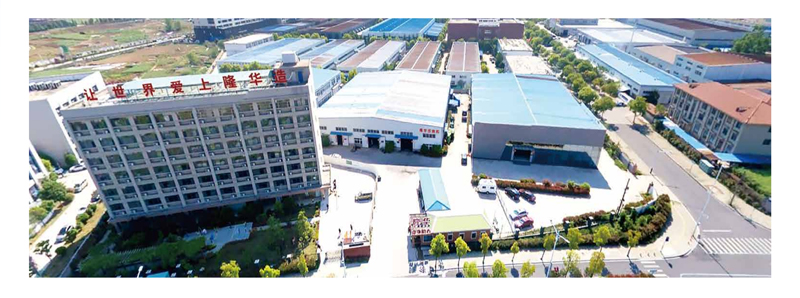

      Bengbu Longhua Die-casting Machine Co., Ltd. is located in Bengbu, Anhui, an old industrial base and a national comprehensive transportation hub. It is a high-tech enterprise focusing on the design, research and development, production, sales and global after-sales service of various die-casting machines and supporting equipment. The company traces its origins to 1950, and officially started the R&D and manufacturing of die-casting machines in 1982. As a pioneer in the domestic die-casting machine industry, Longhua has been deeply involved in the industry for decades, continuing to deepen technological innovation and promote product iteration, and has accumulated solid technical accumulation and rich industry experience.
      The company's product line has a complete layout. It mainly operates core machines such as cold chamber die-casting machines and hot-chamber die-casting machines. It is also equipped with die-casting manipulators, industrial robots and various die-casting auxiliary equipment. It has built a complete product matrix and can provide integrated die-casting production solutions to customers in different industries. The company has made great achievements in innovation, with 14+ invention patents and 21+ computer software copyrights. It is the leading developer of the group standard for "Artificial Intelligence Cold Chamber Die Casting Machine". At the same time, the products have CNAS test reports and CE certificates, and quality compliance is guaranteed.
      At present, Longhua's products have been exported to more than 50 countries and regions around the world. With stable and reliable equipment performance and excellent production efficiency, they are widely used in key fields such as automobile manufacturing, aerospace, and electronic information, and have gained widespread trust and praise from customers at home and abroad.



      FAQ

      Q1. How to choose between cold chamber die casting machine and hot chamber die casting machine?
      Look at the alloy. The injection mechanism of the hot chamber machine is immersed in molten metal, which is suitable for low-melting point alloys such as zinc; the melting point of aluminum alloy is about 660°C, and the temperature of magnesium and copper alloys is higher. Long-term immersion will corrode the gooseneck and contaminate the casting, so cold chamber machines are often used.
      Q2. What is the difference between horizontal and vertical cold chamber die casting machines?
      The core difference lies in the orientation of the injection chamber and the direction of plunger movement. Horizontal machines have a horizontally arranged shot chamber and plunger, while vertical machines have a vertically arranged shot chamber with the plunger moving up and down. This structural difference directly affects production efficiency, casting quality, and application scenarios.
      Q3. How do I choose the right clamping force (tonnage) for my casting?
      Clamping force should be calculated from the projected area of the casting (including runners, overflows, and biscuit) multiplied by the specific injection pressure required for the alloy. As a rule of thumb, aluminum typically requires 600–800 kg/cm² of cavity pressure. Always add a 15–20% safety margin. Undersized tonnage causes flash and die damage; oversized tonnage wastes energy and can crush vents.
      Q4. What are the risks of excessively high hydraulic oil temperature, and how should it be handled?
      High oil temperature accelerates seal aging and causes sluggish operation. Handling: clean the cooler to ensure proper heat dissipation; check whether the hydraulic oil is contaminated and replace it in time; confirm whether the pump is overloaded. Oil temperature should be kept within 35–55°C.
      Q5. What are the benefits of servo hydraulics? Is it worth choosing?
      The servo drive supplies oil according to action requirements, which can reduce no-load energy consumption, improve response speed and repeatability; the conventional hydraulic solution has a mature structure and straightforward maintenance. Whether the servo is equipped as standard is confirmed according to the model. Energy consumption and cycle time benefits need to be evaluated based on your production batch and shift.

      Q6. What is the role of the vacuum system in cold chamber die casting?
      A vacuum system evacuates air from the die cavity and shot sleeve before or during injection, reducing gas entrapment and porosity. It is especially useful for large, thin-wall, or airtightness-critical castings. Vacuum systems require well-sealed dies and proper valve timing; without these, the benefit is limited and maintenance costs rise.
