■ Description

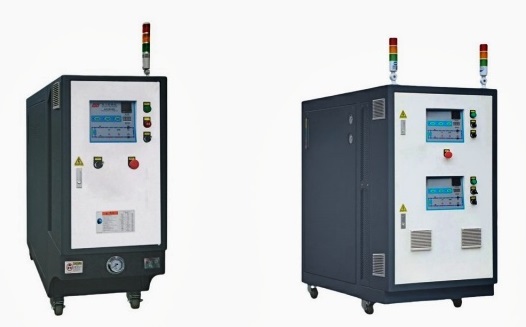

- This product uses oil as a thermal media, through the electric heating and heat pump forced circulation heating equipment. Relatively wide use, such as injection molding, light guide plates, connectors, optical lenses, such as mold temperature control.
■ Why Choose Our Mold Temperature Controller for Die Casting?
✅ Precision temperature control ensures consistent casting quality and minimizes scrap rate.
✅ Energy efficient design reduces operating costs and extends equipment lifespan.
✅ User friendly interface with multiple safety protections enables reliable unattended operation.
| ITEM | UNIT | LH-DCMTC-10Y | LH-DCMTC-20Y | LH-DCMTC-40Y | LH-DCMTCS-10Y | LH-DCMTCS-20Y | LH-DCMTCS-40Y |
| Temp. control range | ℃ | For Room temperature +30℃ ~ 320℃ | |||||
| Temp. control accuracy | ℃ | PID ±1℃ | |||||
| Power supply | - | AC 3φ 380V 50Hz/ AC 3φ415V 50Hz / AC 3φ 480V 60Hz or others | |||||
| Heat transfer medium | - | Heat transfer oil | |||||
| Cooling mode | - | Indirect Cooling | |||||
| Expansion tank capacity | L | 30 | 30 | 56 | 55 | 55 | 55 |
| Heating capacity | kW | 18 | 24 / 30 | 36 / 48 | 18 * 2 | (24/30) * 2 | (36/48) * 2 |
| Pump power | kW | 0.6 | 1.1 | 2.8 | 0.55 * 2 | 1.1 * 2 | 2.8 * 2 |
| Working flow of pump | L/min | (0.5 - 30) | (0.5 - 55) | (0.5 - 80) | (0.5 - 30) * 2 | (0.5 - 55) * 2 | (0.5 - 80) * 2 |
| Working pressure of pump | kg/cm² | (0.5 - 5) | (0.5 - 5.5) | (0.5 - 8) | (0.5 - 5) * 2 | (0.5 - 5.5) * 2 | (0.5 - 8) * 2 |
| Maximum power consumption | kW | 19 | 32 | 51 | 38 | 64 | 102 |
| Alarm | - | Phase loss / Oil shortage / Overheating / Overloading / Oil overflow / Abnormal heating | |||||
| Circulating oil pipe | Inch | 46085 | 46085 | 1 | 3/4 x 2 | 3/4 x 2 | 1 * 2 |
| Size (L x W x H) | mm | 1160 x 420 x 1110 | 1160 x 420 x 1100 | 1350 x 500 x 1260 | 1300 x 650 x 1300 | 1300 x 650 x 1300 | 1400 x 650 x 1500 |
| Reference Weight | KG | 156 | 156 | 280 | 300 | 340 | 370 |
■ About Longhua

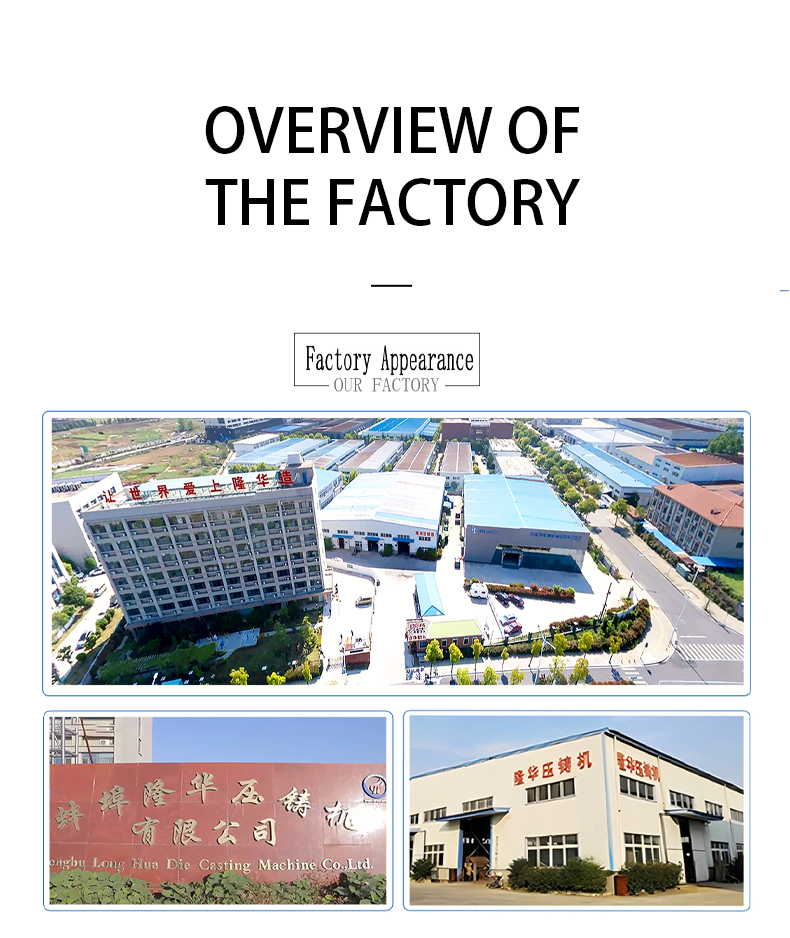

Longhua Die Casting Machine was founded in 1950 and has been specializing in the production of die casting machines since 1982. It is a national high-tech enterprise specializing in the design, research and development, manufacturing, and sales of horizontal cold chamber J11 series die casting machines, die casting robots, die casting molds, die casting peripheral equipment, etc. It is a permanent member of the Hong Kong Foundry Association.
