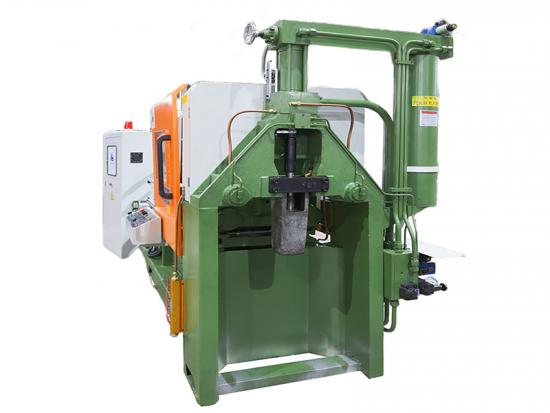

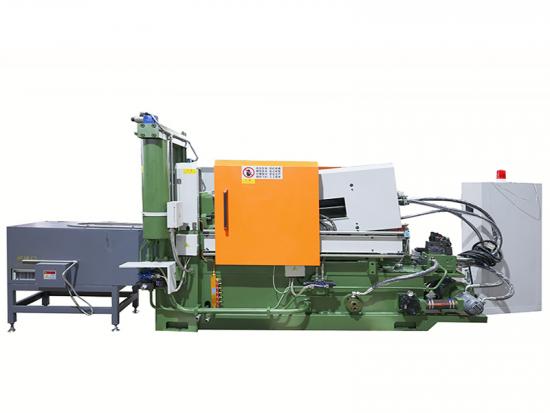

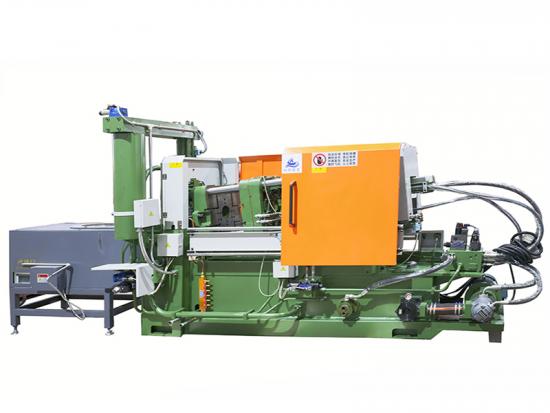

| Standard parameters of Longhua hot chamber die-casting machine series(200T) | |||
| 项 目 Item | 单位 | LH-HC200T | |
| 锁模力 Die-locking Force | kN | 2000 |
|
| 开模行程 Die-stroke | mm | 400 | |
| 哥林柱内距 Clearance Between Tie Bars | mm | 460*460 | |
| 最小/最大模厚 Die Thickness(Min/Max) | mm | 220/560 | |
| 顶出力 Ejection Force | kN | 110 | |
| 顶出行程 Ejection Stroke | mm | 100 | |
| 压射力 Injection Force | kN | 130 |
|
| 压射行程 Plunger Stroke | mm | 175 | |
| 压射位置 Shot Position | mm | 0,100 | |
| 压射头直径 Plunger-tip Diameter | mm |
70,75 |
|
| 射料量（锌）Shot Weight(Zn) | kg | 2.5/2.9/3.3 | |
| 系统工作压力 Working pressure | MPa | 12 |
|
| 电机功率 Motor Rating | kW | 15 | |
| 坩埚容量（锌）Melting Pot Capacity | kg | 720 | |
| 燃烧炉耗油量 Oil Consumption Of Burner | kg/h | 6.3 | |
| 油箱容量 Oil Tank Capacity | L | 400 | |
| 机器重量 Weight Of Machine | kg | 7800 | |
| 机器外形尺寸（L/W/H) | mm | 5800x1710x2500 | |
