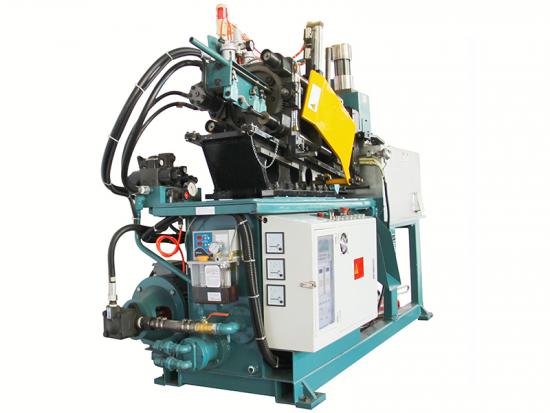

| Standard parameters of Longhua hot chamber die-casting machine series(160T) | ||
| 项 目 Item | 单位 | LH-HC160T |
| 锁模力 Die-locking Force | kN | 1800 |
| 开模行程 Die-stroke | mm | 385 |
| 哥林柱内距 Clearance Between Tie Bars | mm | 460*460 |
| 最小/最大模厚 Die Thickness(Min/Max) | mm | 200/580 |
| 顶出力 Ejection Force | kN | 109 |
| 顶出行程 Ejection Stroke | mm | 85 |
| 压射力 Injection Force | kN | 120 |
| 压射行程 Plunger Stroke | mm | 160 |
| 压射位置 Shot Position | mm | 0,-80 |
| 压射头直径 Plunger-tip Diameter | mm |
65,70 |
| 射料量（锌）Shot Weight(Zn) | kg | 2.5(3.5) |
| 系统工作压力 Working pressure | MPa | 12 |
| 电机功率 Motor Rating | kW | 15 |
| 坩埚容量（锌）Melting Pot Capacity | kg | 450 |
| 燃烧炉耗油量 Oil Consumption Of Burner | kg/h | 4.8 |
| 油箱容量 Oil Tank Capacity | L | 300 |
| 机器重量 Weight Of Machine | kg | 6000 |
| 机器外形尺寸（L/W/H) | ||
|
(Due to the continuous progress of science and technology, the picture,parameter configuration, etc. will not be changed without notice)
|
||
| mm | 5500x1600x2250 | |
