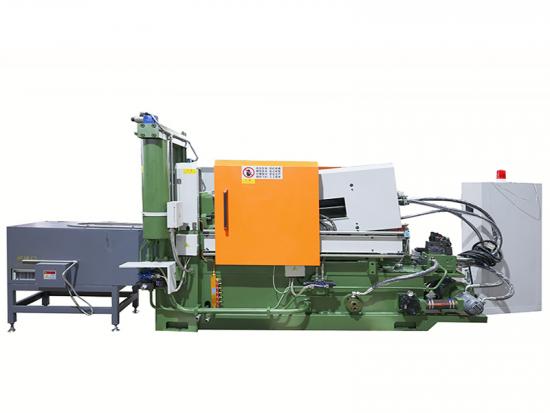

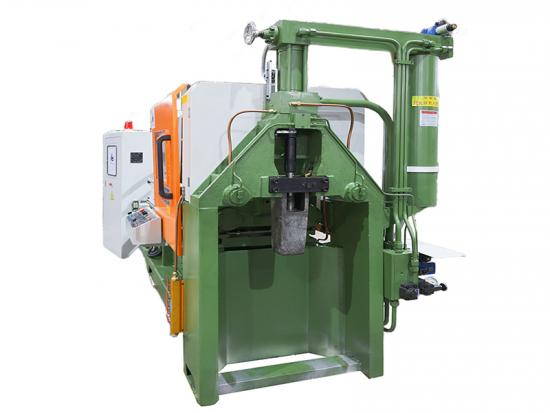

Standard parameters of Longhua hot chamber die-casting machine series(130T) |
||
| 项 目 Item | 单位 | LH-HC130T |
| 锁模力 Die-locking Force | kN | 1300 |
| 开模行程 Die-stroke | mm | 350 |
| 哥林柱内距 Clearance Between Tie Bars | mm | 409*409 |
| 最小/最大模厚 Die Thickness(Min/Max) | mm | 250/500 |
| 顶出力 Ejection Force | kN | 90 |
| 顶出行程 Ejection Stroke | mm | 85 |
| 压射力 Injection Force | kN | 100 |
| 压射行程 Plunger Stroke | mm | 148 |
| 压射位置 Shot Position | mm | 0,-80 |
| 压射头直径 Plunger-tip Diameter | mm | 60,65 |
| 射料量（锌）Shot Weight(Zn) | kg | 2.5 |
| 系统工作压力 Working pressure | MPa | 14 |
| 电机功率 Motor Rating | kW | 11 |
| 坩埚容量（锌）Melting Pot Capacity | kg | 350 |
| 燃烧炉耗油量 Oil Consumption Of Burner | kg/h | 4.8 |
| 油箱容量 Oil Tank Capacity | L | 300 |
| 机器重量 Weight Of Machine | kg | 5700 |
| 机器外形尺寸（L/W/H) | mm | 5000x1600x2320 |
