■ Applications
- Our hot chamber die casting machines are versatile for manufacturing a wide range of precision components, from small hardware accessories like bag buckles, snap buttons, zipper pulls, belt buckles, swivel hooks, and hair clips, to complex industrial parts including automotive engine components, mechanical housings, connectors, and specialized metal fittings, enabling efficient production of high-quality metal parts across fashion accessories, consumer goods, automotive, and industrial equipment sectors.
-
Our hot chamber die casting include high-precision molds and durable spare parts for reliable, long-term production：
die casting molds are supporting multi-cavity production of components from fashion hardware to industrial fittings.
Genuine spare parts (heating pipes, nozzles, material cups, shooting poles, melting pots, etc.) offer seamless compatibility and wear resistance to minimize downtime and extend machine lifespan.
■ Specifications

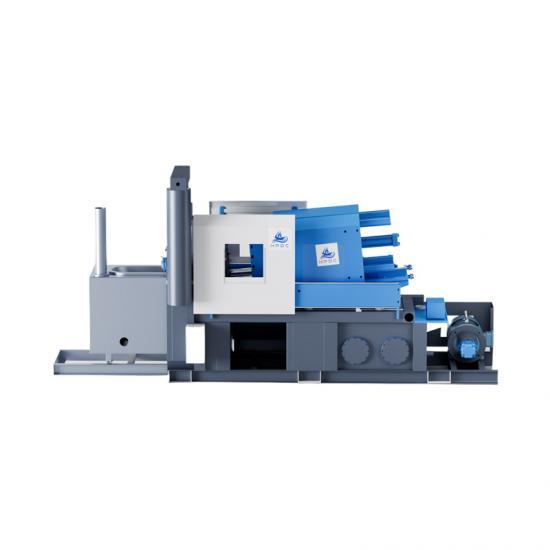

| Standard parameters of Longhua hot chamber die-casting machine series(280T) | ||
| Item | Unit | LH-HC280T |
| Die-locking Force | kN | 2800 |
| Die-stroke | mm | 460 |
| Clearance Between Tie Bars | mm | 560*560 |
| Die Thickness(Min/Max) | mm | 250/650 |
| Ejection Force | kN | 158 |
| Ejection Stroke | mm | 100 |
| Injection Force | kN | 158 |
| Plunger Stroke | mm | 200 |
| Shot Position | mm | 0,125 |
| Plunger-tip Diameter | mm |
70,80 |
| Shot Weight(Zn) | kg | 3.8/5 |
| Working pressure | MPa | 14 |
| Motor Rating | kW | 18.5 |
| Melting Pot Capacity | kg | 720 |
| Oil Consumption Of Burner | kg/h | 6.3 |
| Oil Tank Capacity | L | 500 |
| Weight Of Machine | kg | 11000 |
| （L/W/H) | mm | 6400x1800x2500 |
■ Die Casting Machine Mold & Spare Part
