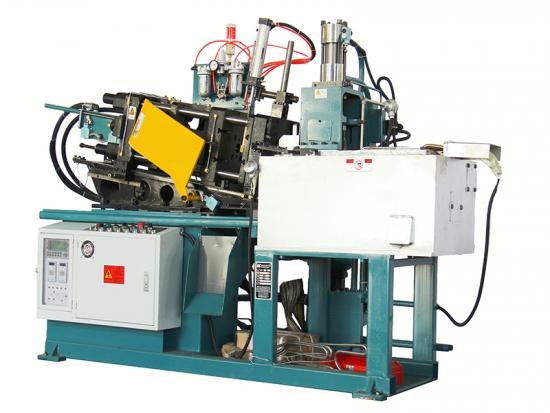

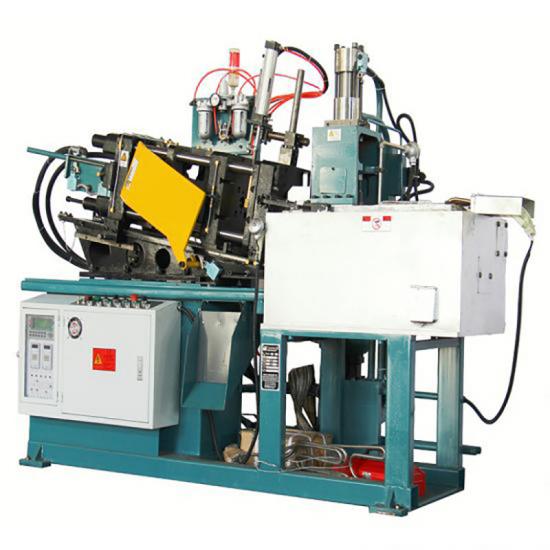

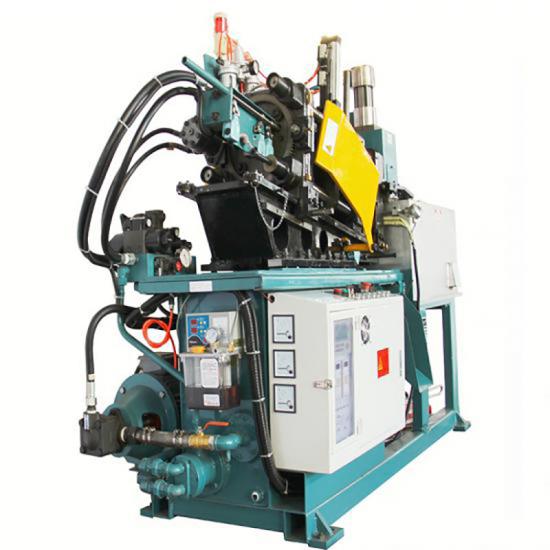

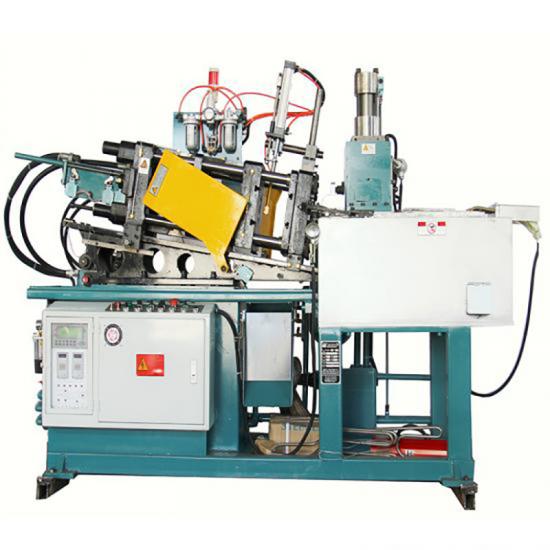

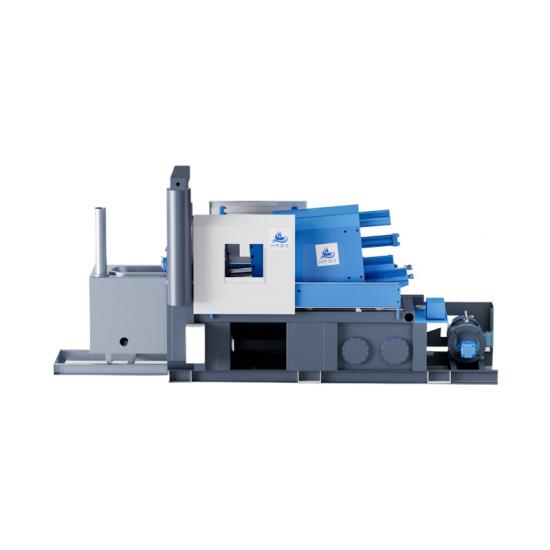

| Standard parameters of Longhua hot chamber die-casting machine series(68T) | ||
| 项 目 Item | 单位 | LH-HC68T |
| 锁模力 Die-locking Force | kN | 680 |
| 开模行程 Die-stroke | mm | 240 |
| 哥林柱内距 Clearance Between Tie Bars | mm | 320x320 |
| 最小/最大模厚 Die Thickness(Min/Max) | mm | 150/350 |
| 顶出力 Ejection Force | kN | 66 |
| 顶出行程 Ejection Stroke | mm | 60 |
| 压射力 Injection Force | kN | 66 |
| 压射行程 Plunger Stroke | mm | 130 |
| 压射位置 Shot Position | mm | 0,-60 |
| 压射头直径 Plunger-tip Diameter | mm | 45,50 |
| 射料量（锌）Shot Weight(Zn) | kg | 1.5 |
| 系统工作压力 Working pressure | MPa | 12 |
| 电机功率 Motor Rating | kW | 11 |
| 坩埚容量（锌）Melting Pot Capacity | kg | 250 |
| 燃烧炉耗油量 Oil Consumption Of Burner | kg/h | 1.5~6.0 |
| 油箱容量 Oil Tank Capacity | L | 280 |
| 机器重量 Weight Of Machine | kg | 3950 |
| 机器外形尺寸（L/W/H) | mm | 3900x1500x2000 |
