Core Selling Point
✅Complete tonnage coverage, from small parts with multiple cavities to large parts, there are corresponding models

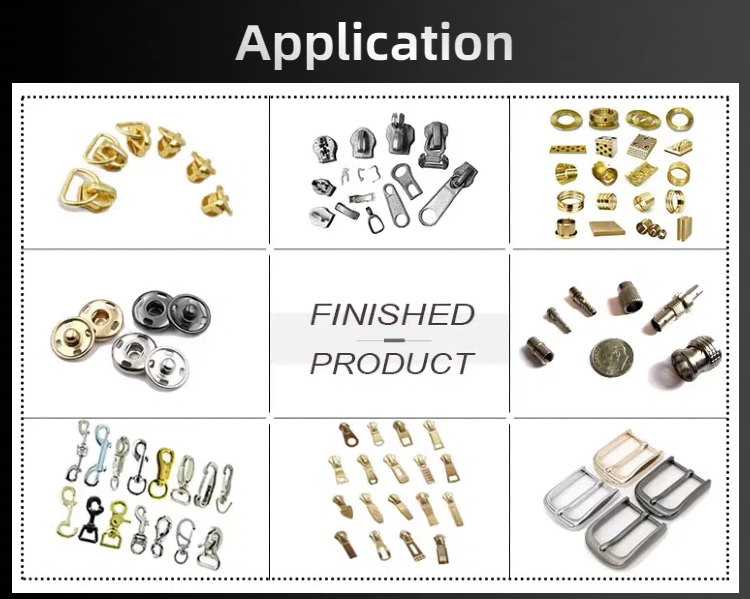

30T–450T complete sequence: small tonnage is suitable for multi-cavity small precision parts such as buttons and zipper pullers; medium and large tonnage can be used for large-sized zinc alloy parts such as locks, brackets, car models, etc. When customers expand production, they can be smoothly upgraded within the same brand series, and the processes and accessories are common.
✅The hot chamber supplies ingredients in one piece, eliminating the need for soup, fast pace and low loss
The crucible has a built-in machine, and the molten metal is directly pressed into the mold cavity through the gooseneck. There is no need to scoop the material separately for soup. The cycle time is short and the oxidation and burning loss is small. It is suitable for high-speed continuous production of small parts and the daily output of a single machine is high.
✅PLC segmented injection + optional servo, accurate molding, energy saving and material saving
The computer PLC adjusts the injection speed, pressurization, holding pressure and cooling time in stages, and multiple sets of mold recipes can be called with one click; the servo configuration supplies oil on demand, reducing no-load energy consumption. The surface of the casting is smooth, with few pores and flash, and the molding consistency is good.
✅The clamping rigidity is sufficient to protect the mold and reduce flash
The fuselage is made of carbon steel welded, and key parts are heat treated to strengthen it. The inner distance of the coring pillar and the mold opening stroke are matched according to the tonnage. The mold clamping is stable and the impact is small. Complex parts and deep cavity parts are not easy to run out of materials and flash, and the mold life is guaranteed.
✅Strong automation expansion capability, can form a fully automatic die-casting island
Interfaces for spraying, picking up, and conveyor belts are reserved, and can be used with Longhua servo sprayers, picking manipulators, industrial robots, and conveyor belts for online production; the original complete machine + peripheral equipment + consumables are included, and debugging and after-sales are completed in one stop.
✅Common accessories and perfect after-sales system

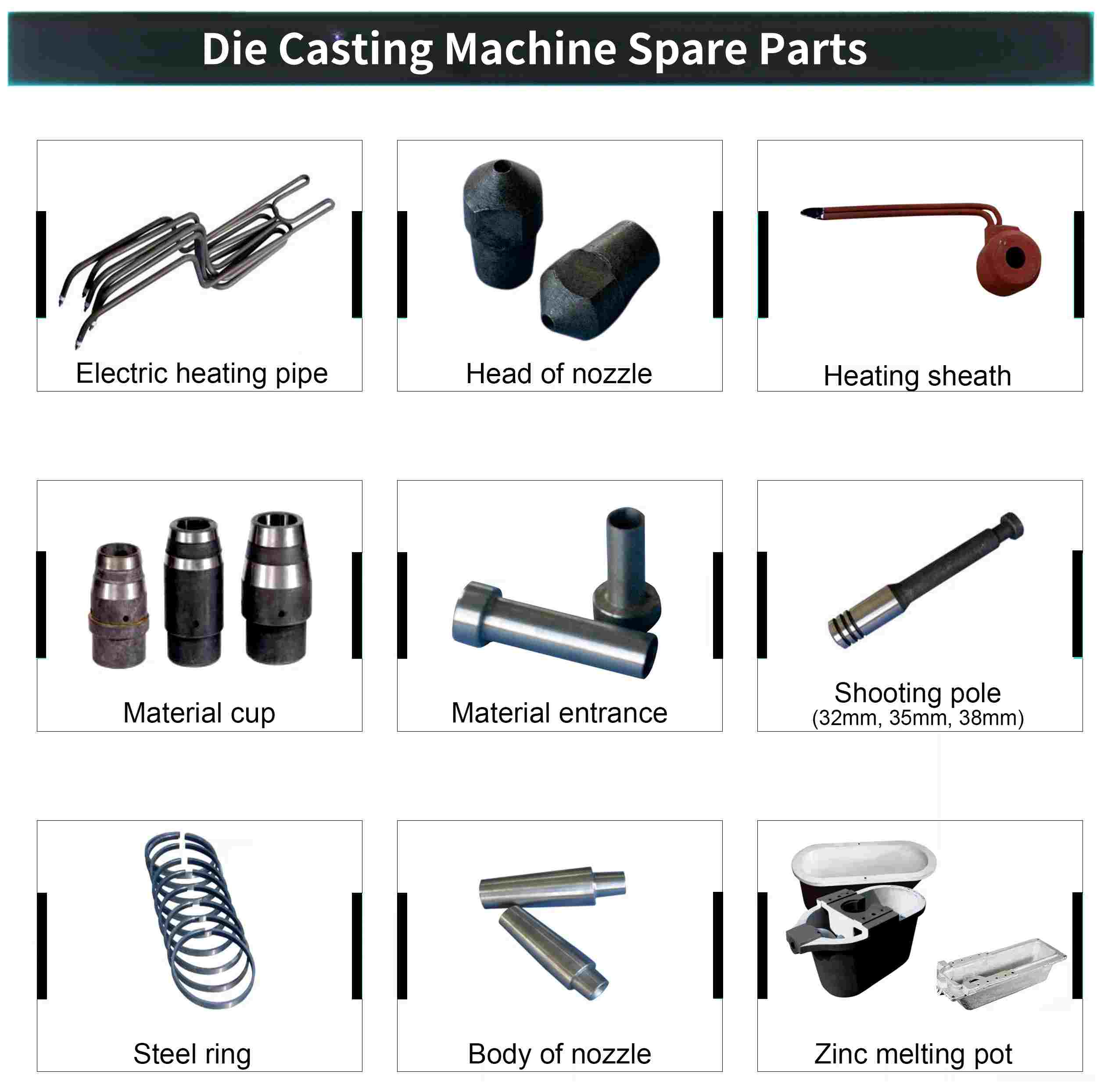

The material pot, gooseneck, nozzle, injection head, injection rod, nozzle, heating sheath and other consumable parts are supplied from the original factory; we provide pre-production samples, final factory inspection, video troubleshooting, on-site guidance from engineers and a priority policy for upgrading old customers.
Working Cycle Of Hot Chamber Die Casting Machine
-
Mold clamping: The movable platen moves forward, the mold is closed and locked, and the nozzle tip presses against the mold gate.
-
Feeding (plunger upward): The plunger in the injection cylinder moves upward, opening the feed port, and the molten metal flows into the injection cylinder by gravity.
-
Injection (plunger downward): The plunger moves downward to seal the feed inlet, hydraulically pump the metal into the gooseneck, and inject it into the closed cavity through the nozzle at high speed.
-
Pressurization and pressure-maintaining: After the cavity is filled, it is pressurized and compacted, and the metal solidifies and shrinks under pressure.
-
Cooling and solidification: maintain pressure until the casting solidifies, and the nozzle tip maintains temperature to prevent metal from solidifying in the flow channel.
-
Mold opening and ejection: After the mold is opened and the casting is ejected, the plunger returns to the upper position and enters the next cycle.

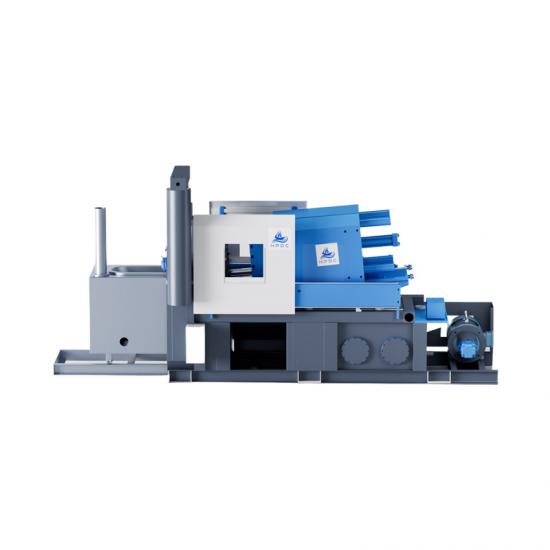

Product Parameters
项 目 Item
|
单位
|
LH-HC-90T
|
锁模力 Die-locking Force
|
kN
|
900
|
开模行程 Die-stroke
|
mm
|
270
|
哥林柱内距 Clearance Between Tie Bars
|
mm
|
360*360
|
最小/最大模厚 Die Thickness(Min/Max)
|
mm
|
120/360
|
顶出力 Ejection Force
|
kN
|
60
|
顶出行程 Ejection Stroke
|
mm
|
60
|
压射力 Injection Force
|
kN
|
75
|
压射行程 Plunger Stroke
|
mm
|
130
|
压射位置 Shot Position
|
mm
|
0,-60
|
压射头直径 Plunger-tip Diameter
|
mm
|
45,50,55
|
射料量(锌)Shot Weight(Zn)
|
kg
|
1.6
|
系统工作压力 Working pressure
|
MPa
|
11
|
电机功率 Motor Rating
|
kW
|
9
|
坩埚容量(锌)Melting Pot Capacity
|
kg
|
350
|
燃烧炉耗油量 Oil Consumption Of Burner
|
kg/h
|
4
|
油箱容量 Oil Tank Capacity
|
L
|
250
|
机器重量 Weight Of Machine
|
kg
|
4100
|
机器外形尺寸(L/W/H)
|
mm
|
4250x1550x2155
|
(Note: We reserve the right to make any technical improvements without prior notice)
Company Introduction

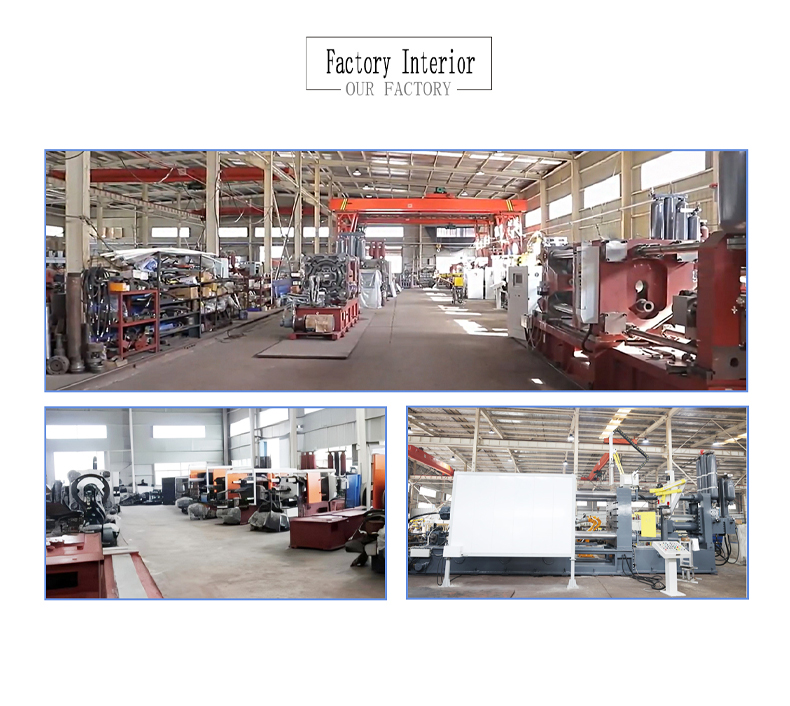

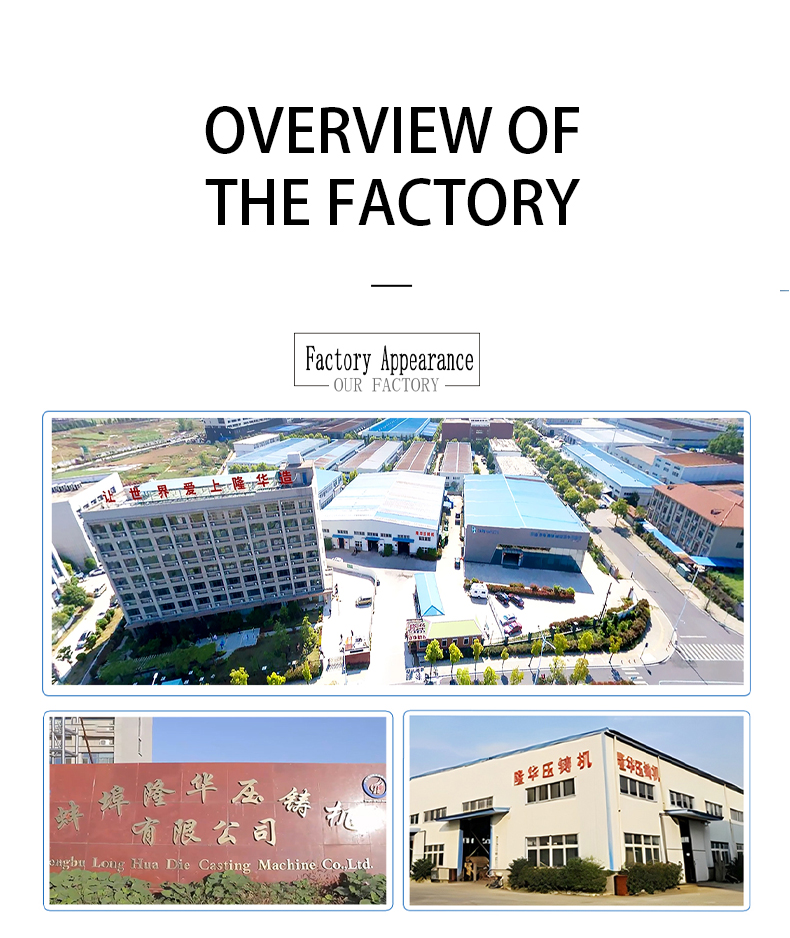

Bengbu Longhua Die-casting Machine Co., Ltd. is located in Bengbu, Anhui, an old industrial base and a national comprehensive transportation hub. It is a high-tech enterprise focusing on the design, research and development, production, sales and global after-sales service of various die-casting machines and supporting equipment. The company traces its origins to 1950, and officially started the R&D and manufacturing of die-casting machines in 1982. As a pioneer in the domestic die-casting machine industry, Longhua has been deeply involved in the industry for decades, continuing to deepen technological innovation and promote product iteration, and has accumulated solid technical accumulation and rich industry experience.
The company's product line has a complete layout. It mainly operates core machines such as cold chamber die-casting machines and hot-chamber die-casting machines. It is also equipped with die-casting manipulators, industrial robots and various die-casting auxiliary equipment. It has built a complete product matrix and can provide integrated die-casting production solutions to customers in different industries. The company has made great achievements in innovation, with 14+ invention patents and 21+ computer software copyrights. It is the leading developer of the group standard for "Artificial Intelligence Cold Chamber Die Casting Machine". At the same time, the products have CNAS test reports and CE certificates, and quality compliance is guaranteed.
At present, Longhua's products have been exported to more than 50 countries and regions around the world. With stable and reliable equipment performance and excellent production efficiency, they are widely used in key fields such as automobile manufacturing, aerospace, and electronic information, and have gained widespread trust and praise from customers at home and abroad.
FAQ
Q1: Can the LH-HC hot chamber die casting machine cast aluminum alloy?
Regular LH-HC series cannot die cast aluminum alloys. Liquid aluminum is highly corrosive and will quickly corrode the kettle, gooseneck, and nozzle, making it easy to block pipes and scrap parts. Please use Longhua cold chamber die-casting machines for aluminum alloy die-casting. Magnesium alloy requires custom-made high-temperature resistant kettles and heating systems. Please specify this in advance before placing an order. The standard model of this machine is suitable for zinc alloy, and can also be adapted for tin, lead and other low melting point alloys.
Q2: What tonnage hot chamber machine should I choose? How to judge?
Priority is given to the projected area of the casting + whether it is a thin-walled and complex part. 30–90T is suitable for buttons, zipper pulls, small nameplates, and small multi-cavity parts; 130–200T is suitable for small and medium-sized parts such as locks, luggage buckles, handles, and instruments; 280–450T is suitable for brackets, car models, and larger casings. You provide casting drawings, product weight, and projected area, and we can help select models and calculate the clamping force for free.

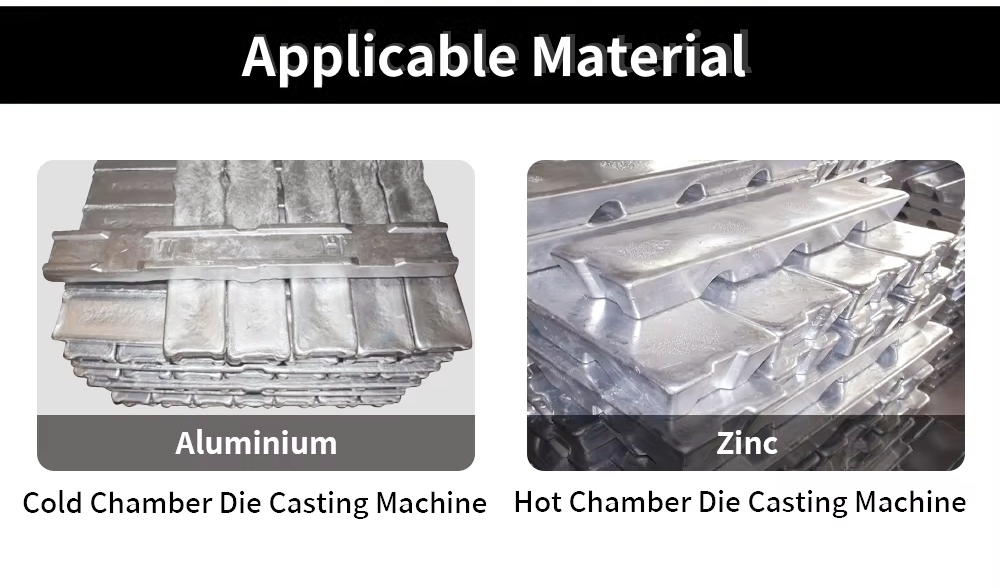

Q3: What is the difference between hot chamber machine and cold chamber die casting machine? How should I choose?
The hot chamber comes with its own crucible and gooseneck for feeding materials, without the need for a soup feeding manipulator. It has a fast rhythm and less oxidation, and is suitable for large batches of small zinc alloy parts. The cold chamber requires separate melting and feeding, and is suitable for aluminum alloy, large parts, and thick-walled die-casting parts. Zinc alloys are given priority in hot chambers, while aluminum alloys must be placed in cold chambers.
Q4: Can the same machine be replaced with different injection heads to make products of different weights?
Yes, the same model supports multiple specifications of injection heads. If the diameter of the injection head changes, the maximum injection weight will change accordingly. It is not recommended to make large parts beyond the specifications, as it is prone to air holes, poor filling, and insufficient mold clamping and flash.
Q5: What is the fastest machine cycle time?
The cycle time depends on the product size, wall thickness, cooling time, and mold structure. Small multi-cavity products can achieve a cycle of several seconds; medium and large parts have a long cooling time and the cycle time will be extended. A sample mold trial can be provided to confirm the stable cycle time.
Q6: Can a sprayer and pick-up manipulator be added to make a fully automatic die-casting island?
Can. The entire series of LH-HC has reserved standard signal interfaces, which can be directly used with Longhua servo sprayers, pick-up manipulators, conveyor belts, and material temperature monitoring modules to achieve fully automatic production, reduce labor, and stabilize quality.
Q7: Does the machine come with a furnace? Do I still need to buy a smelting furnace separately?
The LH-HC hot chamber die-casting machine has a built-in integrated crucible melting furnace, which does not require a separate external melting furnace. The metal is melted and kept warm directly in the crucible of the machine, eliminating the need for a soup process.
Q8: After the equipment arrives, does it include installation, commissioning and training?
Domestic orders: engineers can be arranged for on-site installation, debugging, and on-site training of operators; foreign trade orders: a full set of English instructions, video debugging tutorials, and remote online guidance are provided. If overseas on-site services are required, travel and service fees can be negotiated separately.
Q9: Is there CE certification? Can it be exported?
Supporting foreign trade exports, we can provide CE certificates, factory inspection reports, packing lists, invoices and other customs clearance information; nameplates and instructions in English can be made according to customer requirements.
