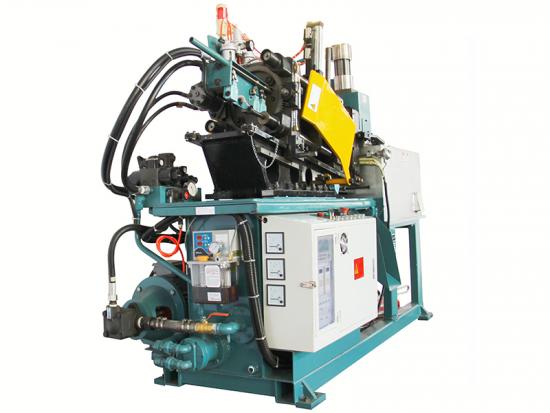

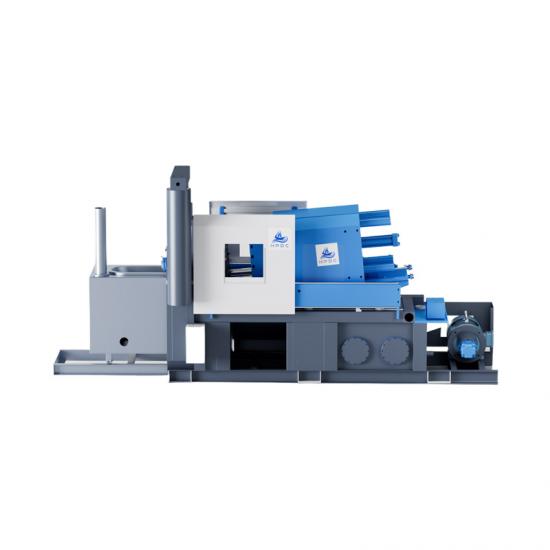

| Standard parameters of Longhua hot chamber die-casting machine series(30T) | ||
| 项 目 Item | 单位 | LH-HC30T |
| 锁模力 Die-locking Force | kN | 300 |
| 开模行程 Die-stroke | mm | 200 |
| 哥林柱内距 Clearance Between Tie Bars | mm | 240x240 |
| 最小/最大模厚 Die Thickness(Min/Max) | mm | 120/320 |
| 顶出力 Ejection Force | kN | 35 |
| 顶出行程 Ejection Stroke | mm | 50 |
| 压射力 Injection Force | kN | 30 |
| 压射行程 Plunger Stroke | mm | 110 |
| 压射位置 Shot Position | mm | 0,-40 |
| 压射头直径 Plunger-tip Diameter | mm | 45 |
| 射料量（锌）Shot Weight(Zn) | kg | 0.6 |
| 系统工作压力 Working pressure | MPa | 7 |
| 电机功率 Motor Rating | kW | 7.5 |
| 坩埚容量（锌）Melting Pot Capacity | kg | 160 |
| 燃烧炉耗油量 Oil Consumption Of Burner | kg/h | 1.5~6.0 |
| 油箱容量 Oil Tank Capacity | L | 250 |
| 机器重量 Weight Of Machine | kg | 2900 |
| 机器外形尺寸（L/W/H) | mm | 3407x1273x2542 |
