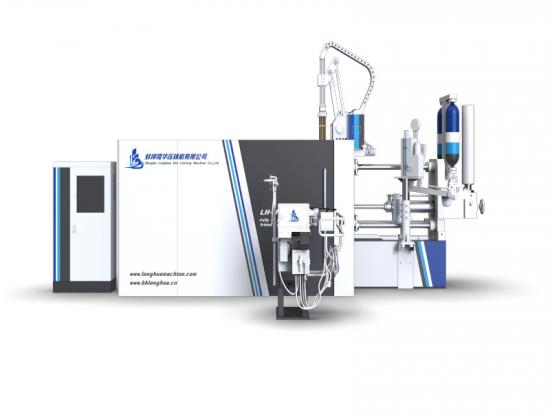

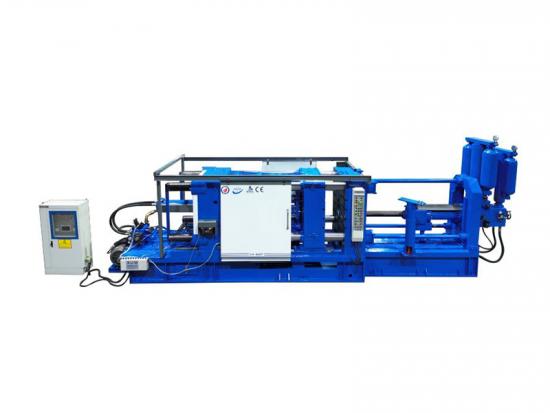

Product Details

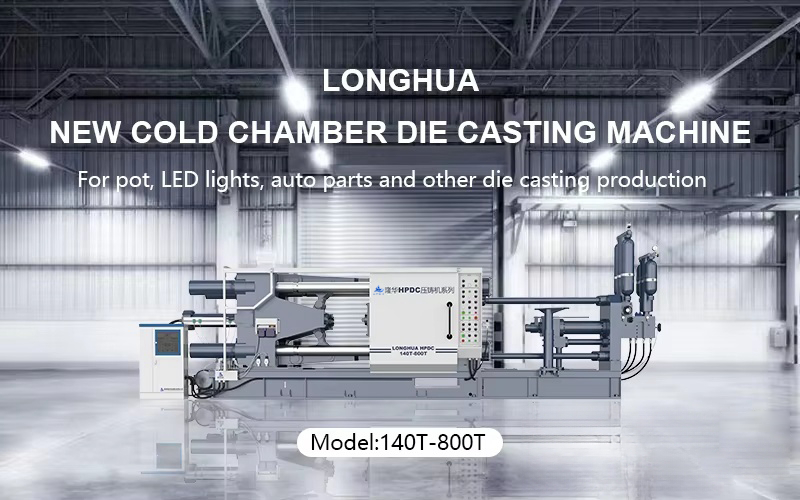

Our die-casting machines have excellent strength, wear resistance and precision in die-casting automotive
parts, and can meet the needs of the automotive manufacturing industry for high-quality, high-performance
parts. These spare parts play an important role in improving the overall performance of the car, reducing
costs and improving user experience.

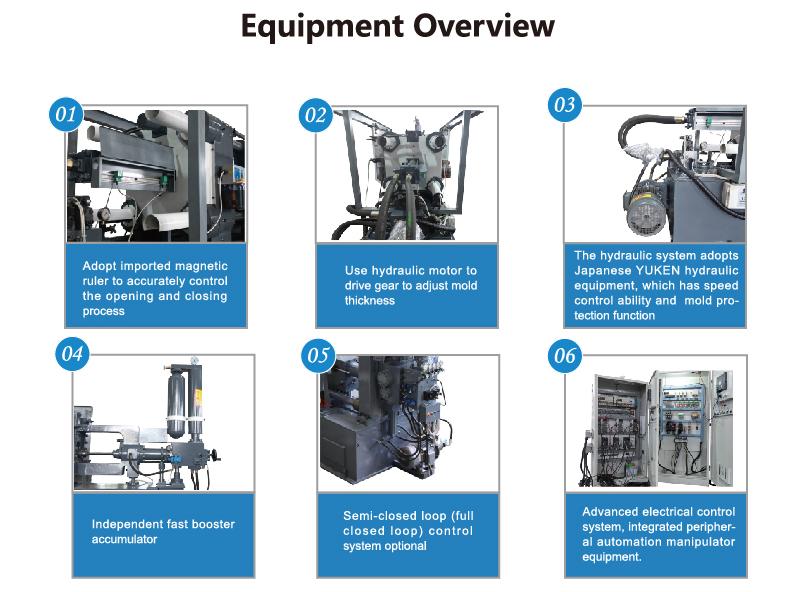

Feature
Specification
| LH series of standard parameter table (900 t) | ||
| ITEMS | Unit | Specification |
| Clamping Force | KN | 9000 |
| Opening stroke | mm | 800 |
| Die thickness(Min--Max) | mm | 400～1000 |
| Space between tie bars | mm | 960*960 |
| Ejector stroke | mm | 190 |
| Ejector force | KN | 360 |
| Injection position（0 as center） | mm | 0，-250 |
| Injection force（intensification) | KN | 775 |
| Injection stroke | mm | 760 |
| Plunger diameter | mm | ￠80 -- ￠110 |
| lnjection weight(aluminum) | Kg | 13.5 |
| Casting pressure (intensification) | MPa | 154/121/81 |
| Max. casting area(40Mpa) | CM2 | 2250 |
| Injection plunger penetration | mm | 300 |
| Diameter of pressure chamber flange | mm | 200 |
| Height of pressure chamber flange | mm | 20 |
| Max.working pressure | MPa | 14 |
| Motor power | Kw | 30 |
| Dimensions (L*W*H) | m | 8.7*2.5*3 |
| Machine lifting reference weight | T | 45 |
| Oil tank capacity | L | 1500 |
will not be changed without notice)

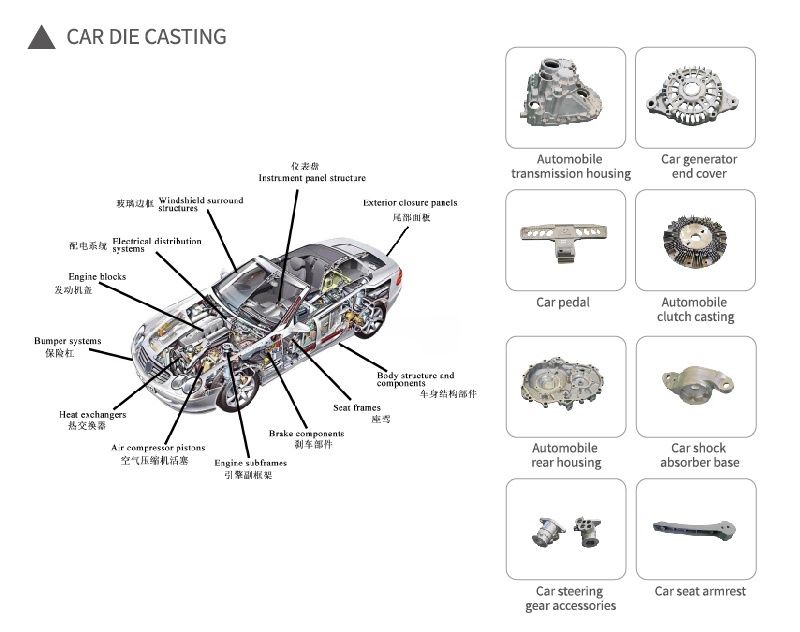

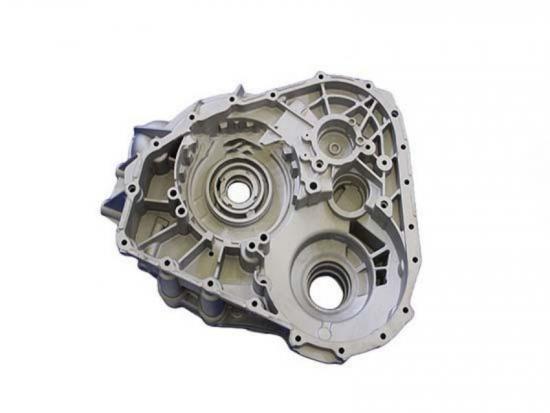

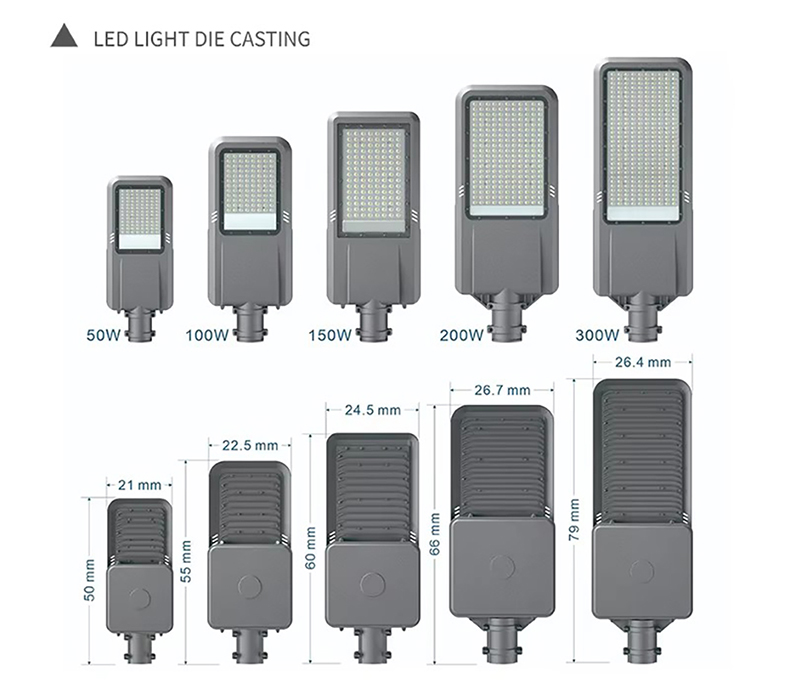

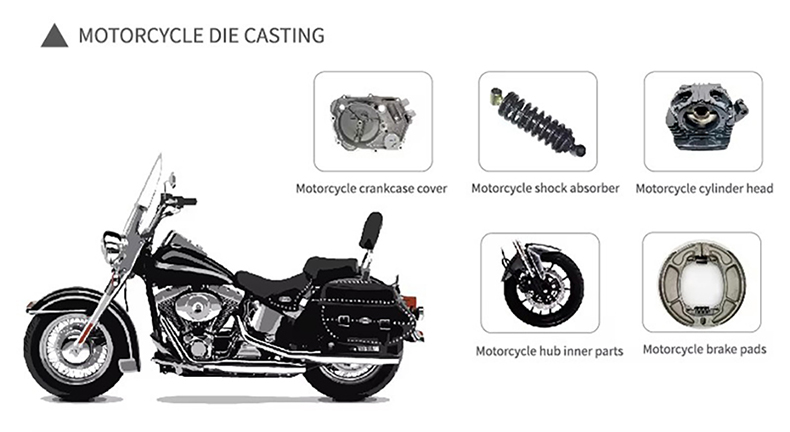

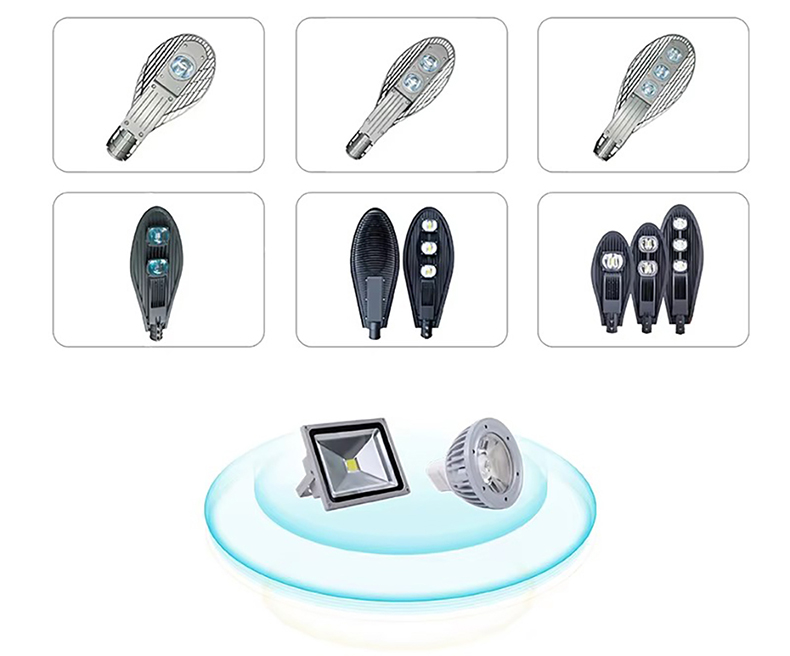

Die casting product
Cold chamber die casting machines can manufacture a variety of automotive parts, including engine parts,
transmission system parts, chassis parts, braking system parts and body structure parts, etc.
These accessories play a vital role in the car manufacturing process and can affect the performance,
safety and comfort of the car.

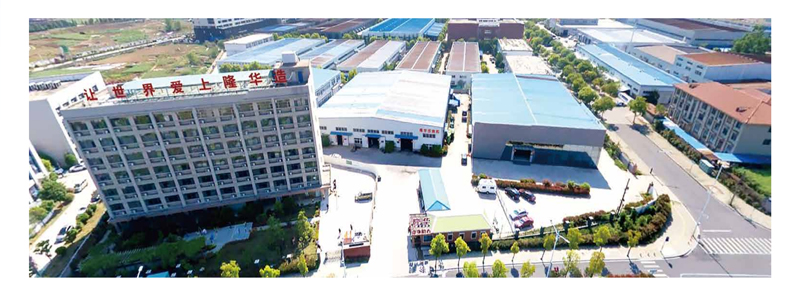

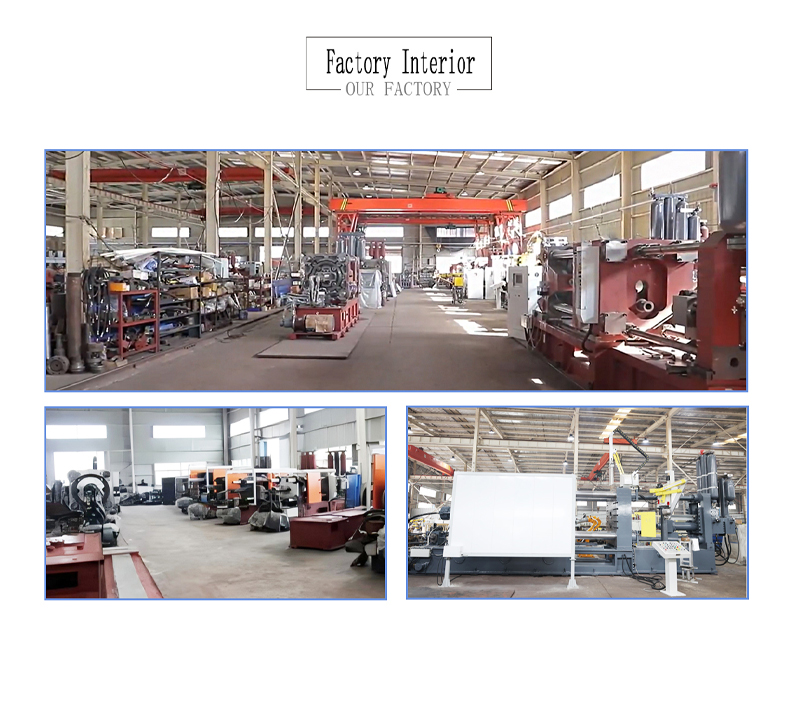

ABOUT US
Bengbu Longhua Die Casting Machine Co.,Lid is a company based in Bengbu City,Anhui Province,China.
It specializes in the manufacturing of die casting machines and related equipment.
Established in 1982,Longhua Die Casting Machine Co.,Ltd has been involved in the die casting industry for
several decades.The company focuses on research,development,production,and sales of various types of
die casting machines.The company's product range covers cold chamber die-casting machines,die-casting
manipulators,industrial robots and peripheral equipment of die-casting machines to meet the needs of
different customers.
