Nonferrous metal die casting machine with photos(LH-700T)

Longhua brand die casting machine's hydraulic system consists of:The most advanced uniform accelerated multistage injection system in the world

  • Product Origin:

    Anhui China
  • Shipping Port:

    Shanghai Port
  • Lead Time:

    1set,20 days;≥2 sets,To be negotiated
Products Description

Product Item

Nonferrous metal die casting machine with photos(LH-700T)

Product Description

The die casting machine has the characteristics of high quality and high rigidity.

The wear-resisting pressing plate is designed by finite element analysis, with uniform stress distribution, small deformation and high precision of mould locking.



die casting machine advantages aluminum die casting machine



LH SERIES OF STANDARD PARAMETER TABLE (LH-700 T)


ITEMS

UNIT

SPECIFICATION

HYDRAULIC WORKING PRESSURE

MPA

14

CLAMPING FORCE

KN

7000

SPACE BETWEEN TIE BARS

MM

750*750

TIE BAR DIAMETER

MM

¢170

DIE OPENING STROKE

MM

650

INJECTION FORCE(INTENSIFY)

KN

670

PLUNGER LAUNCH DISTANCE

MM

295

INJECTION POSITION

MM

0  --  250

PLUNGER DIAMETER

MM

¢70----¢100

INJECTION STROKE

MM

715

CASTING PRESSURE (INTENSIFY)

MPA

153/117/92

CASTING FIANGE PROTRUSION

MM

15

CASTING FIANGE DIAMETER

MM

165

MAX CASTING AREA UNDER 40MPA

CM2

1750

LNJECTION WEIGHT(AL)

KG

11

DIE HEIGHT(MIN--MAX)

MM

350~900

EJECTOR FORCE

KN

315

EJECTOR STROKE

MM

260

MOTOR CAPACITY

KW

30

MACHINE DIMENSIONS  (L*W*H)

M

8.4*2.2*3.1

REFERENTIAL MACHINE WEIGHT FOR UPLIFTING

T

30

OIL TANK CAPACITY

L

1250


PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE


Die casting Application


This machine is suitable for aviation, ships, automobiles, electrical appliances, instrumentation, petrochemical, daily hardware and other industrial departments, mass production of aluminum, zinc, copper and other small non-ferrous alloy die casting.




Die casting machine peripheral machines

Die casting machines should be used in conjunction with electric or natural gas furnaces.


Our electric furnace has reliable humanized circuit design, low failure rate, simple operation.

And electric furnace Uses German technology, save electricity more than 30% than traditional electric furnace.

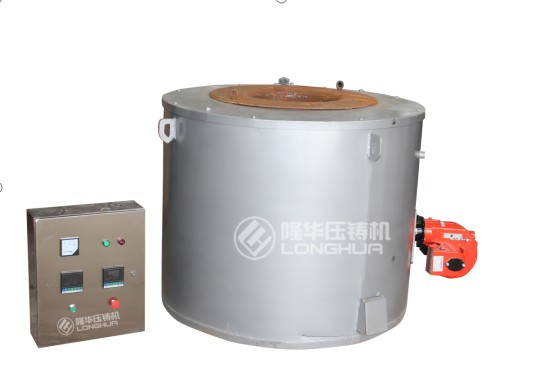

Longhua natural gas furnace with natural gas (liquefied natural gas) as fuel, clean and safe, tidy workshop, easy to manage.

The international brand burner is used to make the gas completely combustion and the exhaust gas emission completely free from pollution.

Multiple heat flow channels are designed to make full use of the energy generated by the burner, greatly improving the thermal work efficiency and saving energy.




After-Sales Service

After the sale, when the die casting machine arrives at your port, you send invitations, and our engineers go to your country to install and debug die casting machines. Training the operator until you learn so far.
