LH-HPDC 160S Aluminum Cold Chamber Die Casting Machine For Making Clothes Pole Accessories

Cold chamber die casting machine cast metal ,aluminum die casting machine


1.Aluminum casting

2.Aluminum die casting machine

3.High quality ,adopts precise artificial intelligent computer control .

  • Product Origin:

    Anhui China
  • Item NO.:

  • Shipping Port:

    Shanghai Port
  • Lead Time:

    1set,20 days;≥2 sets,To be negotiated
  • Price Range:

Products Description

aluminium die casting machine pricezinc die casting machine


LH series of standard parameter table (160 S)
ITEMS Unit Specification
Clamping Force KN 1600
Opening stroke mm 380
Die thickness(Min--Max) mm 200~550
Space between tie bars mm 460*460
Ejector stroke mm 85
Ejector force KN 108
Injection position(0 as center) mm 0,-140
Injection force(intensification) KN 270
Injection stroke mm 340
Plunger diameter mm ¢40 ¢50 ¢60
lnjection weight(aluminum) Kg 1.8
Casting pressure (intensification) MPa 214/137/95
Max. casting area(40Mpa) CM2 400
Injection plunger penetration mm 110
Diameter of pressure chamber flange mm 110
Height of pressure chamber flange mm 10
Max.working pressure MPa 14
Motor power Kw 11
Dimensions  (L*W*H) m 5.5*1.5*2.35
Machine lifting reference weight T 6
Oil tank capacity L 520
(Due to the continuous progress of science and technology,the picture,parameter configuration,etc,

will not be changed without notice)

magnesium alloy die casting

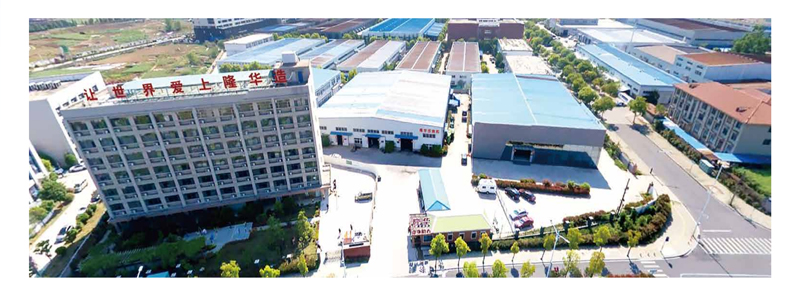

Bengbu Longhua Die Casting Machine Co.,Lid is a company based in Bengbu City,Anhui Province,
China.It specializes in the manufacturing of die casting machines and related equipment.
Established in 1982,Longhua Die Casting Machine Co.,Ltd has been involved in the die casting
industry for several decades.The company focuses on research,development,production,and
sales of various types of die casting machines.The company's product range covers cold chamber
die-casting machines,die-casting manipulators,industrial robots and peripheral equipment of
die-casting machines to meet the needs of different customers.
