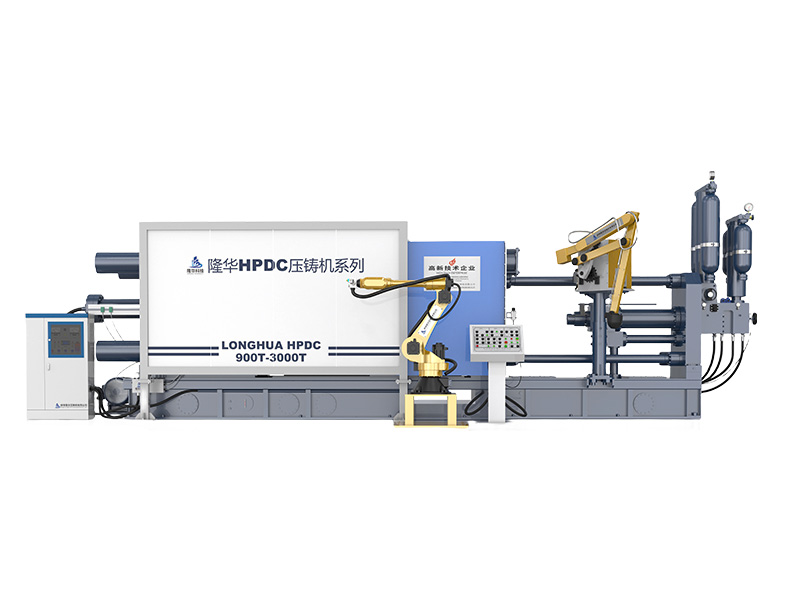

Die casting machine structure: From the overall structure: column frame, frame, injection, hydraulic, electrical, lubrication, cooling, safety From the machine function points: clamping mechanism, injection mechanism, hydraulic transmission, electrical control, safety protection Clamping mechanism: Function: it mainly realizes the action of closing the mold, locking the mold and ejecting the product 1, composition (1) Three plates: moving seat plate, finalize the seat plate, tail plate (1) Corinth column: crankshaft mechanism: long hinge, small hinge, hook hinge, and connected with the movable type seat plate, tail plate and closed hydraulic cylinder (2) ejector mechanism: ejector hydraulic cylinder, thimble, fixed in the moving seat plate (3) Mold adjusting mechanism: mold adjusting motor, gear assembly, fixed on the tail plate (4) Lubrication system: bent elbow lubrication pump, oil drain, oil pipe, shunt 2. Work characteristics (1) Bending elbow mechanism A, the effect of increasing force through the bending elbow connecting rod system, can magnify the thrust of the clamping hydraulic cylinder 16~26 times, to reduce the fuel consumption, reduce the diameter of the clamping hydraulic cylinder, reduce the power of the pump, to achieve the same power. B, can realize variable speed closing mold movement: in the mold process, the moving mold base plate moving speed from zero quickly to the maximum, then gradually slow down, with the bending elbow straight to terminate, closing mold speed becomes zero, and then self-locking state. C. When the clamping die is terminated, the thrust force can be removed: when the clamping die is tight and the elbow rod is extended into a straight line, the self-locking will occur. At this point, the thrust of the clamping hydraulic cylinder can be removed. The clamping system is still in the closed state. (2) Ejecting mechanism: After the machine opens the mold, push rod and thimble can be pushed out through the relative movement of the piston rod of the hydraulic cylinder. The ejecting force, ejecting speed and ejecting time can be adjusted by the hydraulic system, and the double hydraulic cylinder can be used to make the push rod force uniform, gentle movement, and the ejecting pinhole distribution more reasonable. (3) Mold adjusting mechanism: By adjusting the mold motor to drive the gear assembly, the tail plate and the moving template of the mold locking column frame move along the pull rod in the axial direction, so as to expand or reduce the distance between the dynamic finalize the seat plate, see the specification for parameters. (4) Lubrication system: To reduce motion wear, proper lubricating oil must be maintained on the motion surface. And to achieve timing and quantitative lubrication, at the same time, the use of lubrication pump, automatic lubrication. (5) Injection mechanism Role: the metal hydraulic into the mold cavity for filling. Composition: injection hydraulic cylinder assembly, feeding barrel, ...
